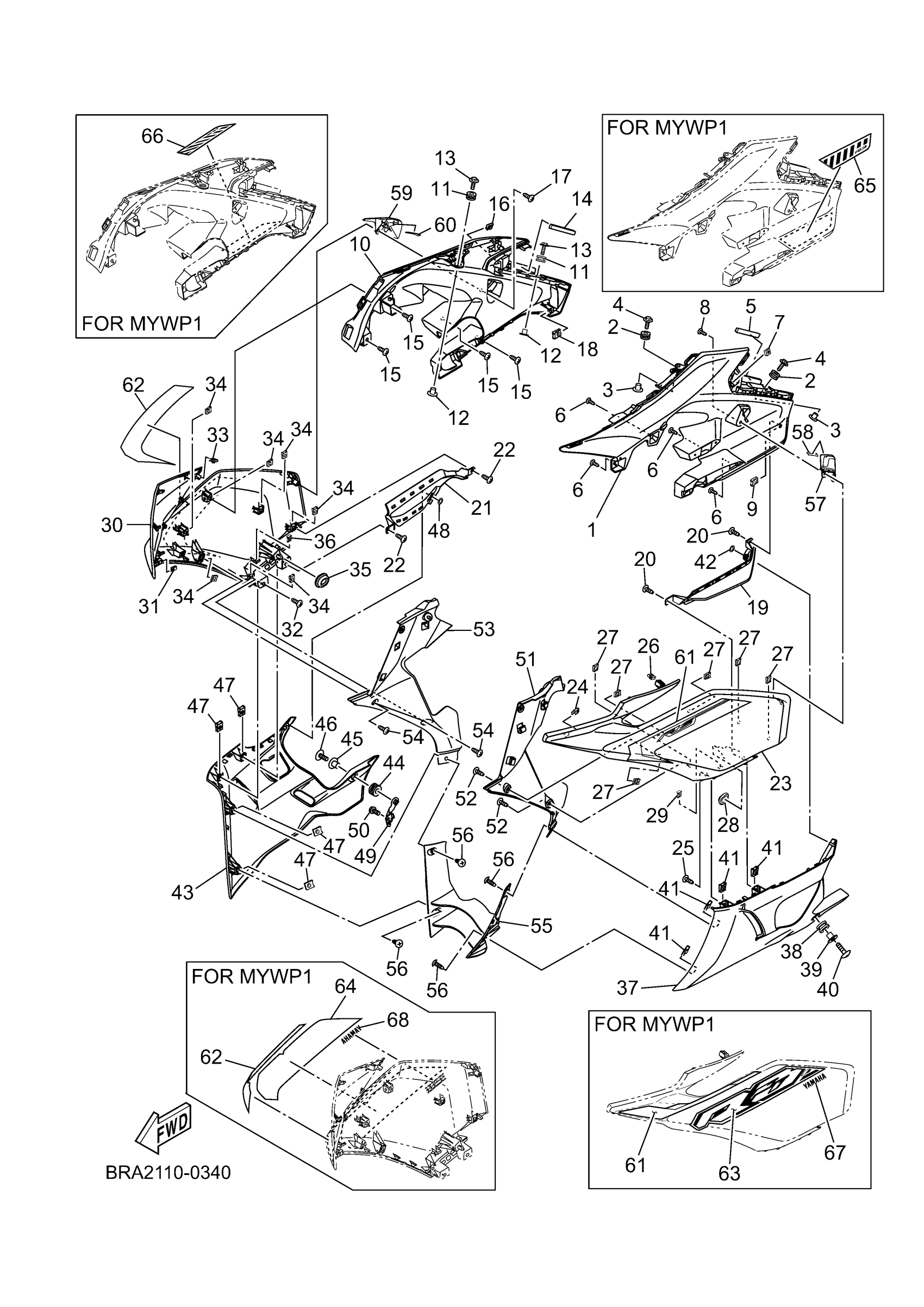

Yamaha YZFR3ASW (YZFR3 ABS) BRA22 2025 COWLING 1 Diagram

#

Description
Price

1

PANEL 3

BRA-F172G-00-P0

$44.99

2

GROMMET (3P91)

90480-12808-00

$2.29

3

COLLAR

90387-06899-00

$3.24

4

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

5

DAMPER, PLATE

90520-06013-00

$0.54

6

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

7

NUT, SPRING

90183-050A7-00

$3.50

8

SCREW, ROUND TAPPING

90160-05012-00

$7.49

9

NUT, SPRING(1YT)

90183-05042-00

$5.60

10

PANEL 4

BRA-F172H-00-P0

Unavailable

11

GROMMET (3P91)

90480-12808-00

$2.29

12

COLLAR

90387-06899-00

$3.24

13

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

14

DAMPER, PLATE

90520-06013-00

$0.54

15

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

16

NUT, SPRING

90183-050A7-00

$3.50

17

SCREW, ROUND TAPPING

90160-05012-00

$7.49

18

NUT, SPRING(1YT)

90183-05042-00

$5.60

19

COVER 7

BS7-F117V-00-00

Unavailable

20

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

21

COVER 8

BS7-F117W-00-00

Unavailable

22

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

23

PANEL 1

BRA-F835U-01-P1

Unavailable

24

HOOK

44D-F8379-00-00

Unavailable

25

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

26

NUT, SPRING

90183-050A7-00

$3.50

27

NUT, SPRING(1YT)

90183-05042-00

$5.60

28

GROMMET

90480-01821-00

Unavailable

29

CLAMP

90464-04004-00

Unavailable

30

PANEL 2

BRA-F835V-01-P1

Unavailable

31

HOOK

44D-F8379-00-00

Unavailable

32

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

33

NUT, SPRING

90183-050A7-00

$3.50

34

NUT, SPRING(1YT)

90183-05042-00

$5.60

35

GROMMET

90480-01821-00

Unavailable

36

CLAMP

90464-04004-00

Unavailable

37

COVER, UNDER

BS7-F8385-00-P8

Unavailable

38

GROMMET (3P91)

90480-12808-00

$2.29

39

COLLAR

90387-06899-00

$3.24

40

BOLT,HEX. SOCKET BUTTON

90111-06117-00

Unavailable

41

NUT, SPRING(1YT)

90183-05042-00

$5.60

42

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

43

COVER, UNDER 2

B1X-F8395-00-P1

Unavailable

44

GROMMET (3P91)

90480-12808-00

$2.29

45

COLLAR

90387-06899-00

$3.24

46

BOLT,HEX. SOCKET BUTTON

90111-06117-00

Unavailable

47

NUT, SPRING(1YT)

90183-05042-00

$5.60

48

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

49

BRACKET 8

BS7-F833E-00-00

Unavailable

50

BOLT, FLANGE DEEP RECESS

95E32-06012-00

Unavailable

51

PANEL, INNER 1

BS7-F836K-00-00

Unavailable

52

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

53

PANEL, INNER 2

BS7-F836L-00-00

Unavailable

54

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

55

PANEL, INNER 3

B1X-F836M-01-00

Unavailable

56

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

57

PLATE 1

BRA-F8396-00-00

Unavailable

58

TAPE

BRA-F8344-00-00

Unavailable

59

PLATE 2

BRA-F8397-00-00

Unavailable

60

TAPE

BRA-F8344-00-00

Unavailable

61

GRAPHIC 3

BRA-F8393-10-00

Unavailable

62

GRAPHIC 4

BRA-F8394-10-00

Unavailable
