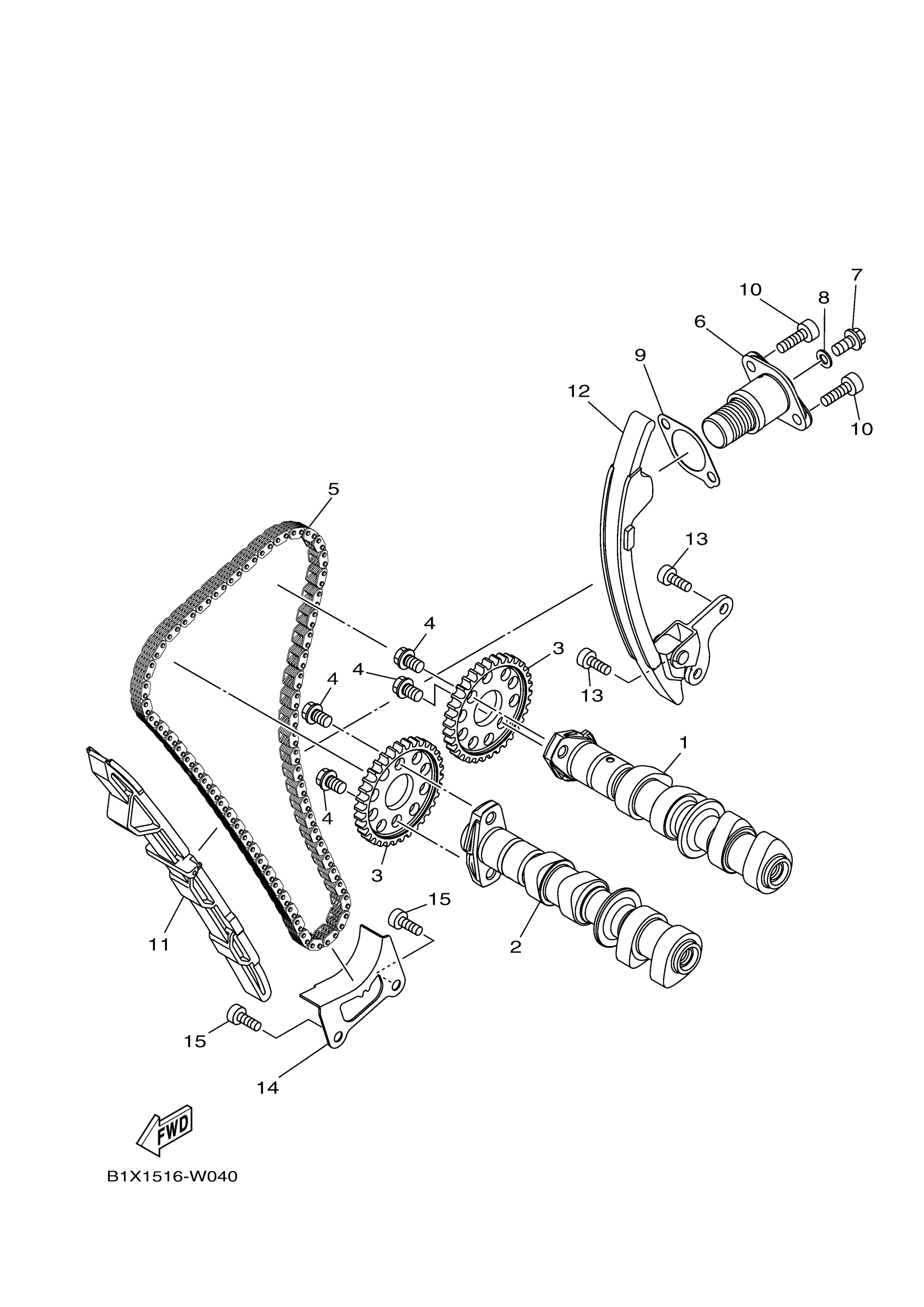

Yamaha YZFR3ASW (YZFR3 ABS) BRA22 2025 CAMSHAFT & CHAIN Diagram

CAMSHAFT ASSY 1

B2X-E2170-00-00

Unavailable

CAMSHAFT ASSY 2

B2X-E2180-00-00

Unavailable

SPROCKET, CAM CHAIN

1WD-E2176-00-00

$57.99

BOLT, FLANGE

90105-07800-00

$4.57

CHAIN (98XRH2015-1

94568-K0118-00

$59.99

TENSIONER ASSY, CAM CHAIN

2MS-12210-00-00

Unavailable

BOLT, FLANGE

95022-06008-00

$8.49

GASKET 256113960000

90430-06014-00

Unavailable

GASKET, TENSIONER CASE

1WD-E2213-00-00

$2.18

BOLT, FLANGE

95817-06020-00

$3.81

DAMPER, CHAIN 1

1WD-E2251-00-00

Unavailable

DAMPER, CHAIN 2

2MS-E2252-01-00

$207.99

BOLT,SOCKET

91317-06016-00

$1.25

COVER, CHAIN

1WD-E2256-00-00

$4.41

BOLT,SOCKET

91317-06016-00

$1.25
