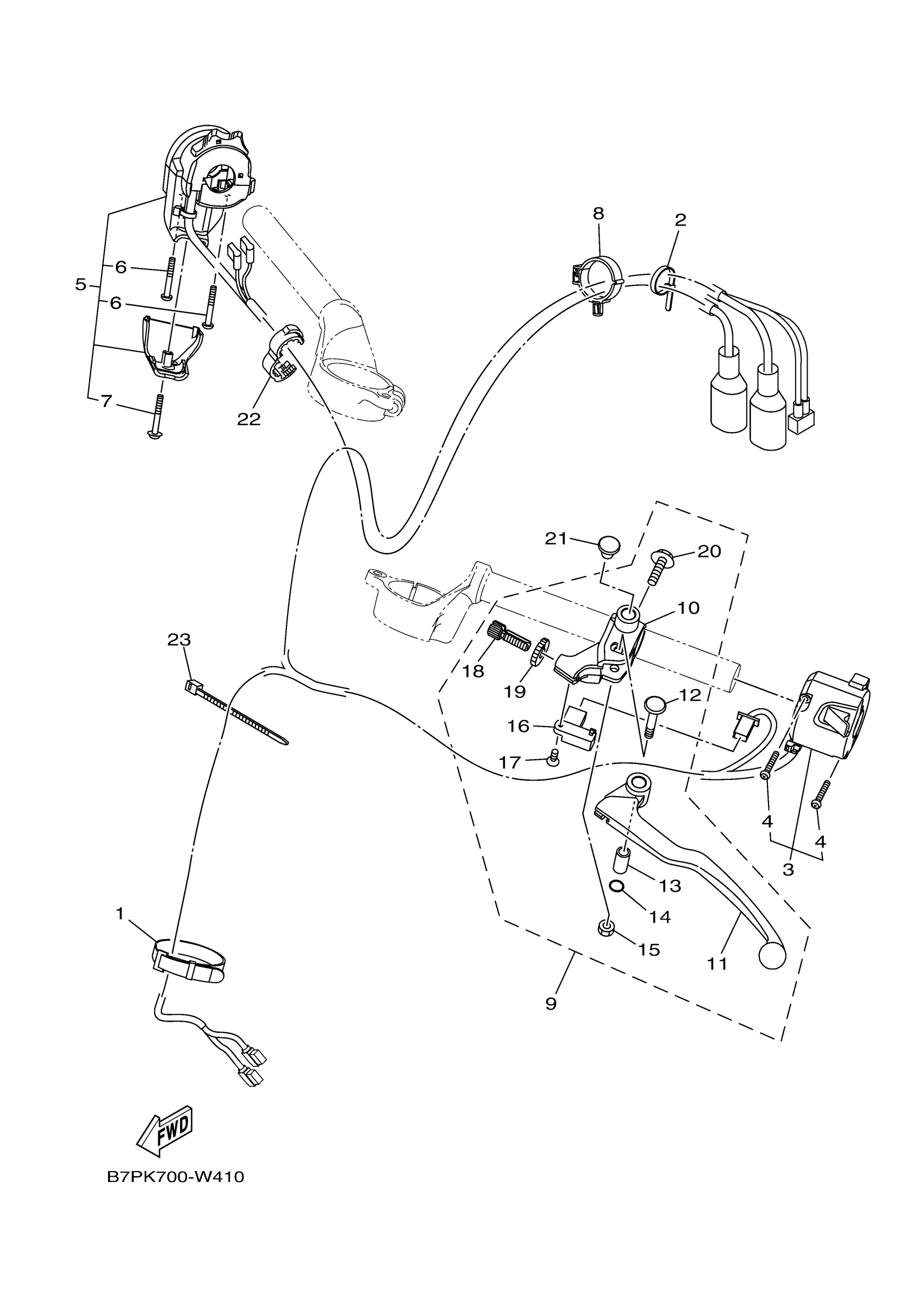

Yamaha YZFR3ARW (YZFR3 ABS) BVJF0 2024 HANDLE SWITCH & LEVER Diagram

#

Description
Price

1

BAND, SWITCH CORD

25G-83936-01-00

$3.85

2

CLAMP

90464-36005-00

$0.91

3

SWITCH, HANDLE 4

BS7-H3972-01-00

Unavailable

4

SCREW, PAN HEAD

98517-04025-00

$2.75

5

SWITCH, HANDLE 2

BS7-H3975-02-00

Unavailable

6

SCREW, PAN

98507-04030-00

$1.64

7

. SCREW, WITH WASHER

97607-04230-00

$2.43

8

CLAMP

90464-30001-00

$6.12

9

LEVER HOLDER ASSY (LEFT)

1WD-H2910-00-00

$80.76

10

HOLDER, LEVER 1

1WD-H2911-00-00

$14.44

11

LEVER 1

1WD-H3912-00-00

$10.36

12

BOLT, LEVER

31A-83945-00-00

$4.37

13

COLLAR, LEVER 1

31A-83913-00-00

$18.17

14

O-RING (260)

93210-10118-00

$5.47

15

NUT, SELF-LOCKING

95617-06100-00

$2.17

16

SWITCH

5BP-H2917-00-00

Unavailable

17

SCREW, FLAT

98707-03008-00

Unavailable

18

BOLT

90123-08002-00

Unavailable

19

NUT

90179-08030-00

Unavailable

20

BOLT, WITH WASHER

97507-06525-00

Unavailable

21

PLUG

90338-09803-00

$0.30

22

CLAMP

90464-13227-00

Unavailable

23

CLAMP (5MX1)

90464-22800-00

Unavailable
