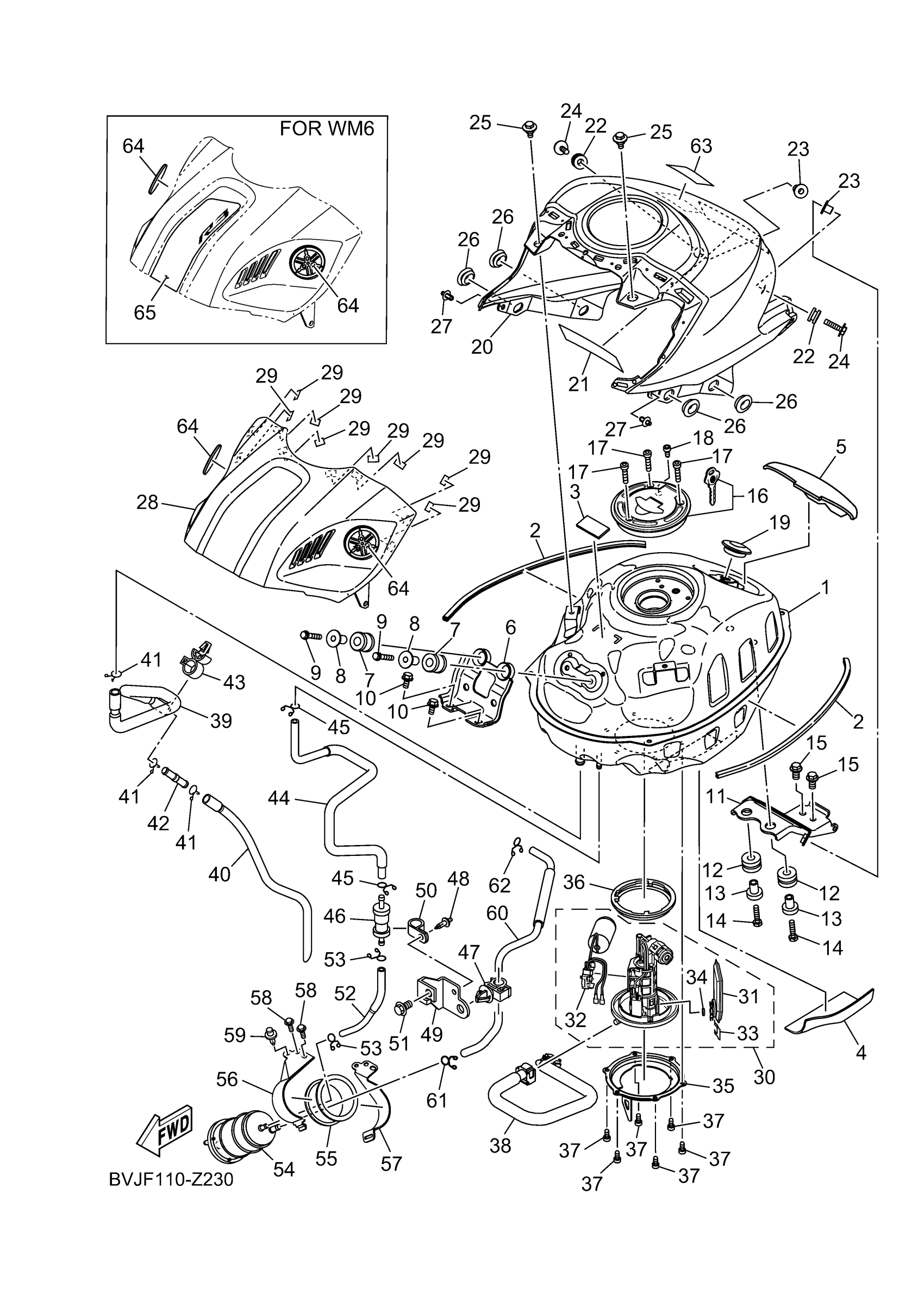

Yamaha YZFR3ARW (YZFR3 ABS) BVJF0 2024 FUEL TANK Diagram
#
1
FUEL TANK COMP.
BS7-F4110-00-00
Unavailable
2
MOLD, FUEL TANK
BS7-F4188-00-00
Unavailable
6
BRACKET, TANK FITTING
BS7-F412Y-00-00
Unavailable
11
BRACKET, FUEL TANK 1
BS7-F4191-10-00
Unavailable
12
GROMMET
90480-15807-00
Unavailable
16
CAP ASSY
BS7-WF461-00-00
Unavailable
17
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
18
BOLT
91312-05010-00
Unavailable
19
GROMMET
90480-01806-00
Unavailable
20
COVER, TANK
BS7-F41B1-00-P0
Unavailable
21
DAMPER, PLATE
90520-03841-00
Unavailable
22
GROMMET (3P91)
90480-12808-00
Unavailable
23
COLLAR
90387-06899-00
Unavailable
24
BOLT, WITH WASHER
90119-06309-00
Unavailable
25
BOLT (B9B1)
90109-068B2-00
Unavailable
26
GROMMET(4BH)
90480-01559-00
Unavailable
27
RIVET
90269-06816-00
Unavailable
28
COVER, TOP
BS7-F171A-01-P0
Unavailable
29
SEAL
31B-F8307-00-00
Unavailable
30
FUEL PUMP COMP.
BS7-E3907-01-00
Unavailable
31
FILTER
3C1-E3915-00-00
Unavailable
32
SENDER UNIT ASSY, FUEL METER
BS7-H5752-00-00
Unavailable
33
CLIP
3C1-F4519-00-00
Unavailable
34
GASKET
3C1-24512-00-00
Unavailable
35
BRACKET, FUEL PUMP
BS7-F4491-00-00
Unavailable
36
O-RING
3C1-F4486-00-00
Unavailable
37
BOLT
91312-05010-00
Unavailable
38
PIPE, FUEL 1
1WD-E3971-02-00
Unavailable
39
PIPE 2
1WD-F4312-01-00
Unavailable
40
PIPE 4
B9T-F4314-00-00
Unavailable
41
CLIP (806-24358-00)
90467-15012-00
Unavailable
42
PIPE, JOINT 1
1WD-F4376-00-00
Unavailable
43
CLAMP
90464-16012-00
Unavailable
44
PIPE 4
2MS-F4314-01-00
Unavailable
45
CLIP
90467-090A2-00
Unavailable
46
ROLL OVER VALVE ASSY
1DW-F4180-02-00
Unavailable
47
CLAMP
90464-10008-00
Unavailable
48
RIVET
90269-05008-00
Unavailable
49
BRACKET, CANISTOR
2MS-F419F-00-00
Unavailable
50
CLAMP
90464-15014-00
Unavailable
51
BOLT, SMALL FLANGE
95027-08012-00
Unavailable
52
PIPE 5 (2MS1)
2MS-F4315-00-00
Unavailable
53
CLIP
90467-090A2-00
Unavailable
54
CANISTER ASSY
2MS-F4170-00-00
Unavailable
55
BAND
2MS-F483H-00-00
Unavailable
56
BRACKET, CANISTER (2MS1)
2MS-F115R-00-00
Unavailable
57
BRACKET, CANISTER (2MS1)
2MS-F134X-00-00
Unavailable
58
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
59
RIVET
90269-06816-00
Unavailable
60
PIPE 6 (2MS1)
2MS-F4316-00-00
Unavailable
61
CLIP (8J7)
90467-11009-00
Unavailable
62
CLIP
90467-090A2-00
Unavailable
63
LABEL, CAUTION
1TP-2118K-A2-00
Unavailable
64
EMBLEM
1WD-F413B-01-00
Unavailable
