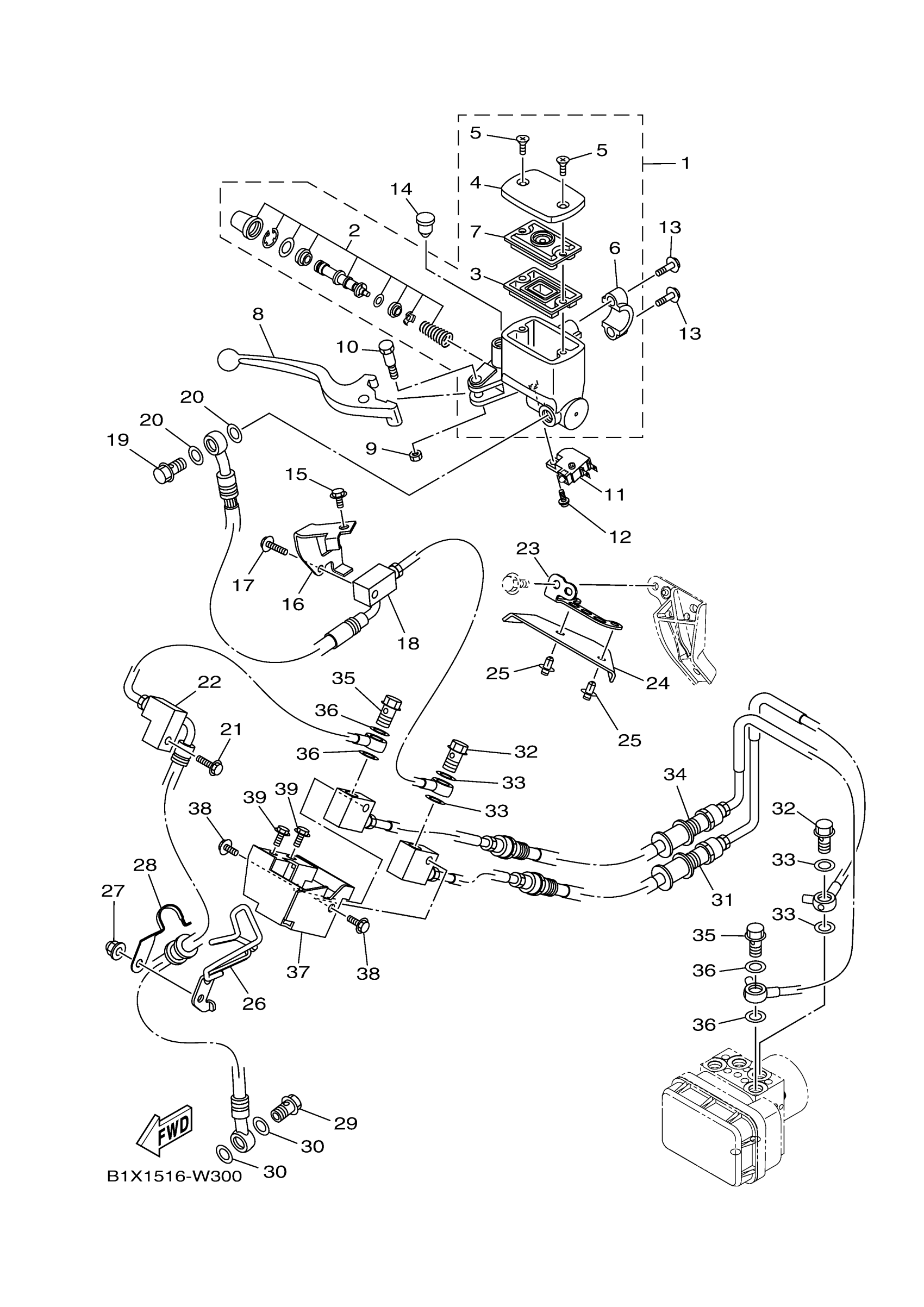

Yamaha YZFR3ARW (YZFR3 ABS) BVJF0 2024 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

1WD-F5870-00-00

Unavailable

2

CYLINDER KIT, MASTER

1WD-F5807-00-00

Unavailable

3

. DIAPHRAGM, RESERVOIR

5RB-25854-00-00

Unavailable

4

CAP, RESERVOIR

1WD-F5852-00-00

$7.49

5

SCREW, FLAT

98707-04012-00

$2.18

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

7

BUSH,DIAPHRAGM

3C1-F5855-00-00

$0.43

8

LEVER 2

1WD-H3922-00-00

$9.49

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

BOLT (4L0)

90109-06577-00

$5.60

11

FRONT STOP SWITCH

2DP-H3980-01-00

$12.49

12

SCREW, PAN HEAD WITH WASHER

97602-04216-00

Unavailable

13

BOLT, SMALL FLANGE

95027-06025-00

$4.16

14

PLUG

90338-09803-00

Unavailable

15

BOLT, FLANGE

95817-06012-00

$1.43

16

HOLDER, BRAKE HOSE 5

2WD-F588F-00-00

Unavailable

17

BOLT, FLANGE

95022-06020-00

Unavailable

18

HOSE, BRAKE 1

B5L-F5872-00-00

Unavailable

19

BOLT, UNION(3GM)

90401-10159-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

BOLT, FLANGE

95022-06020-00

Unavailable

22

HOSE, BRAKE 4

B5L-F581J-01-00

Unavailable

23

BRACKET

B5L-F612E-00-00

Unavailable

24

COVER, STEERING

BS7-F3818-00-00

Unavailable

25

RIVET

90269-06816-00

Unavailable

26

HOLDER, BRAKE HOSE

B5L-F5887-00-00

Unavailable

27

NUT, CROWN(2GM)

90176-06065-00

Unavailable

28

HOLDER, BRAKE HOSE

B5L-F587A-00-00

Unavailable

29

BOLT, UNION(3GM)

90401-10159-00

Unavailable

30

WASHER, PLATE(481)

90201-10118-00

Unavailable

31

HOSE, BRAKE 2 (BEV3)

2WD-F5873-01-00

Unavailable

32

BOLT, UNION(3GM)

90401-10159-00

Unavailable

33

WASHER, PLATE(481)

90201-10118-00

Unavailable

34

HOSE, BRAKE

B5L-F5874-00-00

Unavailable

35

BOLT, UNION(3GM)

90401-10159-00

Unavailable

36

WASHER, PLATE(481)

90201-10118-00

Unavailable

37

HOLDER, BRAKE HOSE

2WD-F588G-01-00

Unavailable

38

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

39

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
