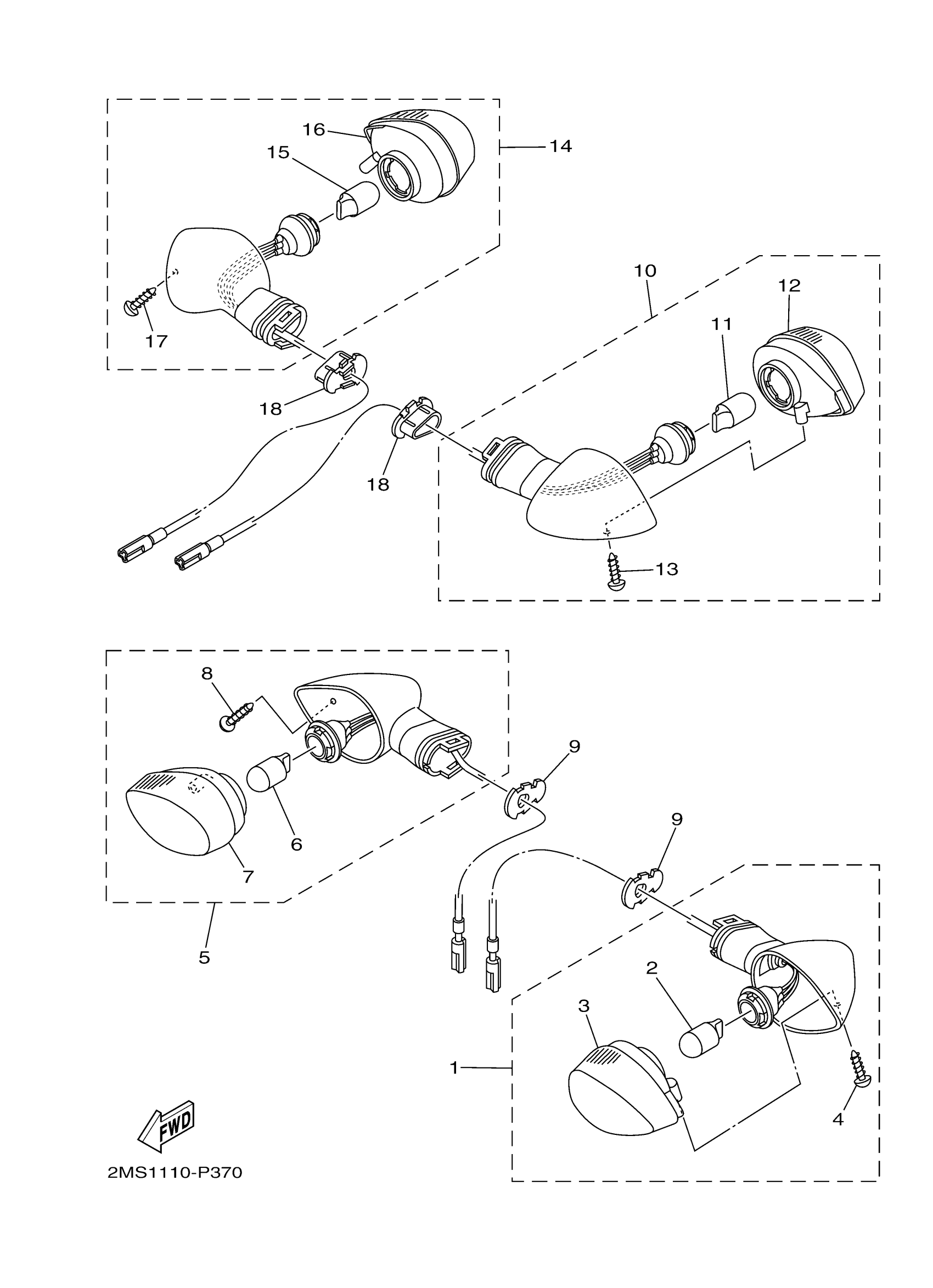

Yamaha YZFR3ARW (YZFR3 ABS) BVJF0 2024 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGH

B8P-H3310-00-00

$37.78

2

BULB, FLASHER

5GJ-83331-00-00

$11.61

3

LENS COMP

5PW-8333A-10-00

$26.90

4

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

5

FRONT FLASHER LIGH

B8P-H3320-00-00

$37.78

6

BULB, FLASHER

5GJ-83331-00-00

$11.61

7

LENS COMP

5PW-8334A-10-00

$28.41

8

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

9

STAY, FLASHER 1

BD6-H3318-10-00

$5.83

10

REAR FLASHER LIGHT ASSY 1

2MS-H3330-00-00

$51.12

11

BULB, FLASHER

5PW-83331-00-00

$11.32

12

LENS COMP

5PW-8334A-10-00

$28.41

13

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

14

REAR FLASHER LIGHT ASSY 2

2MS-H3340-00-00

$54.08

15

BULB, FLASHER

5PW-83331-00-00

$11.32

16

LENS COMP

5PW-8333A-10-00

$26.90

17

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

18

STAY, FLASHER 1

1WD-H3318-00-00

Unavailable
