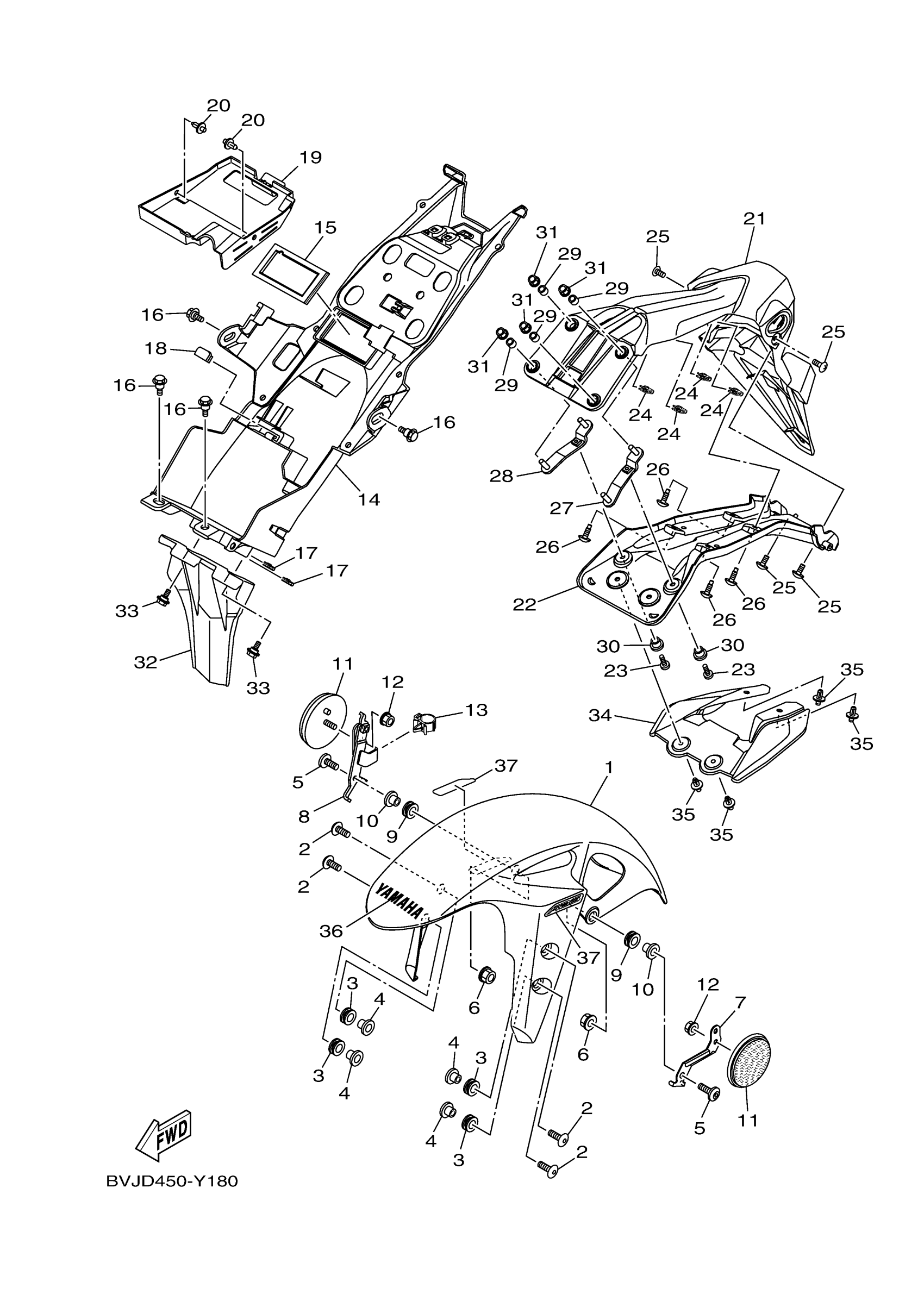

Yamaha YZFR3ARW (YZFR3 ABS) BVJF0 2024 FENDER Diagram

#

Description
Price

1

FENDER, FRONT (DPBMC) BS71

BS7-F1511-00-P0

$45.99

2

BOLT,HEX. SOCKET BUTTON

90111-06137-00

$5.60

3

GROMMET (3P91)

90480-12808-00

$2.29

4

COLLAR

90387-06899-00

$3.24

5

BOLT,HEX. SOCKET BUTTON

90111-06847-00

$11.49

6

NUT, FLANGE

95702-06500-00

$2.39

7

BRACKET, REFLECTOR 1

B5L-F113J-00-00

$5.60

8

BRACKET, REFLECTOR 2

B5L-F113K-01-00

$17.99

9

GROMMET (3P91)

90480-12808-00

$2.29

10

COLLAR

90387-06899-00

$3.24

11

REFLECTOR, FRONT 1

2EK-85111-00-00

$28.99

12

NUT, FLANGE

95702-05500-00

$0.38

13

CLAMP

90464-16006-00

$9.49

14

FENDER, REAR

1WD-F1611-02-00

$44.99

15

SEAL

1WD-F1669-00-00

$1.72

16

BOLT(3KJ)

90109-063F1-00

Unavailable

17

NUT, SPRING

90183-050A6-00

Unavailable

18

SEAL, 2

1WD-F16A2-00-00

Unavailable

19

COVER, REAR FENDER

1WD-F163E-01-00

Unavailable

20

RIVET

90269-06816-00

Unavailable

21

GUARD, MUD

B1X-F1629-00-00

Unavailable

22

BRACKET, FENDER

1WD-F1617-01-00

Unavailable

23

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

24

NUT, SPRING

90183-050A7-00

Unavailable

25

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

26

BOLT

90111-05018-00

Unavailable

27

BRACKET, REAR STAY

1WD-F1688-00-00

Unavailable

28

BRACKET, REAR STAY 2

1WD-F1689-00-00

Unavailable

29

COLLAR (8H6)

90387-07573-00

Unavailable

30

COLLAR

90387-068L9-00

Unavailable

31

NUT, U FLANGE

95604-06200-00

Unavailable

32

FLAP

1WD-F1621-01-00

Unavailable

33

BOLT

90109-05003-00

Unavailable

34

COVER, REAR FENDER 1

1WD-F163A-00-00

Unavailable

35

RIVET

90269-06816-00

Unavailable

36

EMBLEM, YAMAHA

1WD-F153E-00-00

Unavailable

37

GRAPHIC 1

B5P-F1569-H0-00

Unavailable
