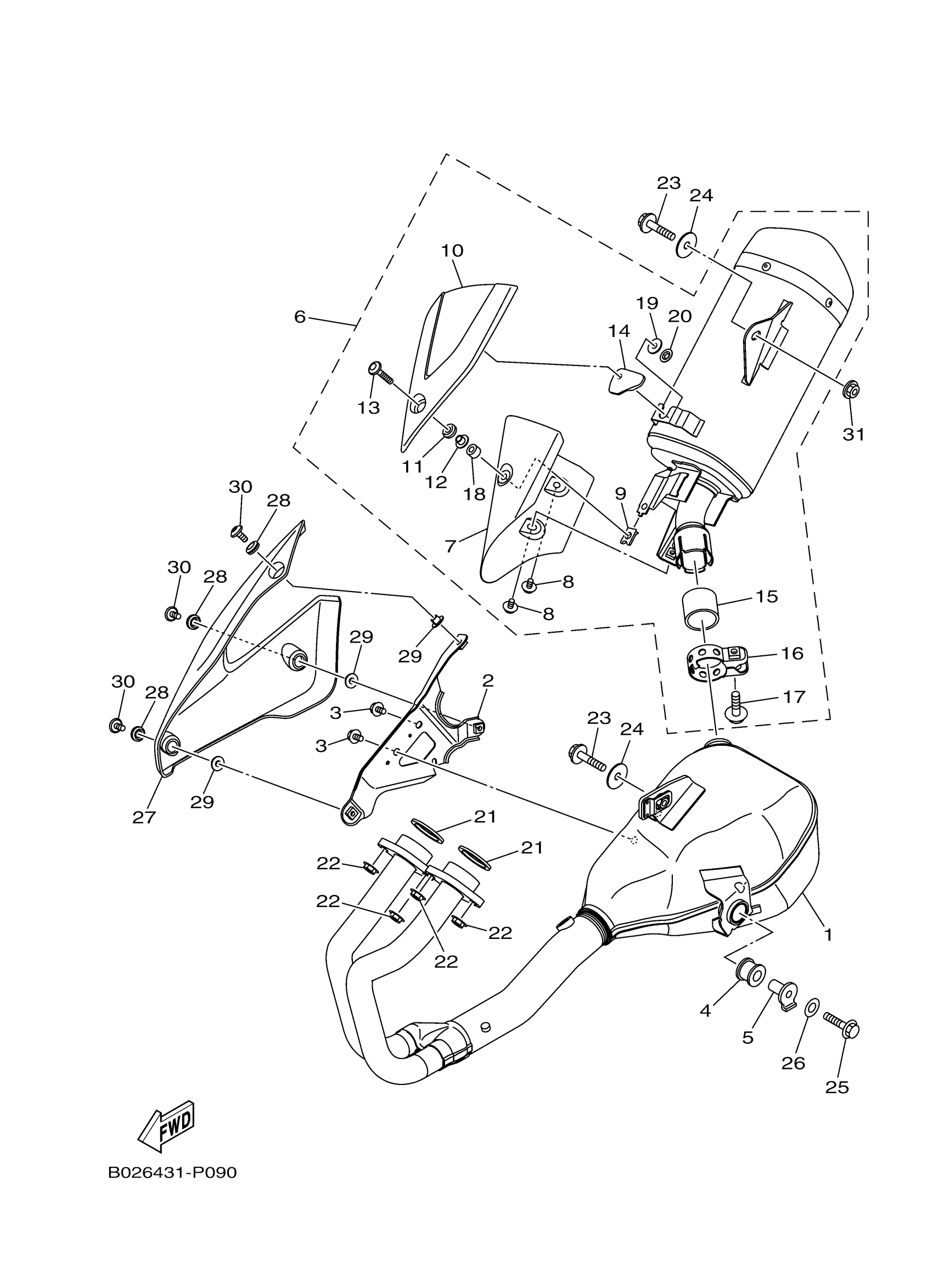

Yamaha YZFR3ARW (YZFR3 ABS) BVJF0 2024 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE COMP.

2MS-E4602-00-00

$724.99

2

BRACKET 3

1WD-E473L-00-00

$50.99

3

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

4

DAMPER, FOOTREST 2

4XV-27424-00-00

$15.49

5

NUT

1WD-E4775-00-00

$3.38

6

MUFFLER ASSY 1

2MS-E4710-00-00

$253.99

7

PROTECTOR, SILENCER

1WD-E4758-00-00

$24.99

8

BOLT

90111-06031-00

$8.49

9

. NUT, SPRING

90183-06818-00

Unavailable

10

PROTECTOR, MUFFLER 2

1WD-E4728-00-00

Unavailable

11

GROMMET(4FW)

90480-12581-00

$7.49

12

COLLAR(50M)

90387-087L0-00

$8.49

13

BOLT,HEX. SOCKET BUTTON

90111-06847-00

$11.49

14

. SPACER

1WD-E4763-00-00

Unavailable

15

GASKET, MUFFLER

54D-E4714-00-00

$9.49

16

BAND, MUFFLER

1WD-E4715-00-00

Unavailable

17

BOLT, FLANGE(4MY)

95027-08035-00

Unavailable

18

COLLAR

90387-068N4-00

Unavailable

19

WASHER, PLATE

90201-06088-00

Unavailable

20

NUT, SPRING

90183-06071-00

Unavailable

21

GASKET, EXHAUST PIPE

1WD-E4613-00-00

Unavailable

22

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

23

BOLT, FLANGE

90105-088G7-00

Unavailable

24

WASHER, PLATE (1A0)

90201-08612-00

Unavailable

25

BOLT, FLANGE(6TA)

95817-08030-00

Unavailable

26

WASHER, PLATE (12X)

90201-087F0-00

Unavailable

27

PROTECTOR, EXHAUST PIPE

1WD-E4628-00-00

Unavailable

28

GROMMET(4FW)

90480-12581-00

$7.49

29

COLLAR(50M)

90387-087L0-00

$8.49

30

BOLT,HEX. SOCKET BUTTON

90111-06087-00

Unavailable

31

NUT, SELF-LOCKING

90185-08169-00

Unavailable
