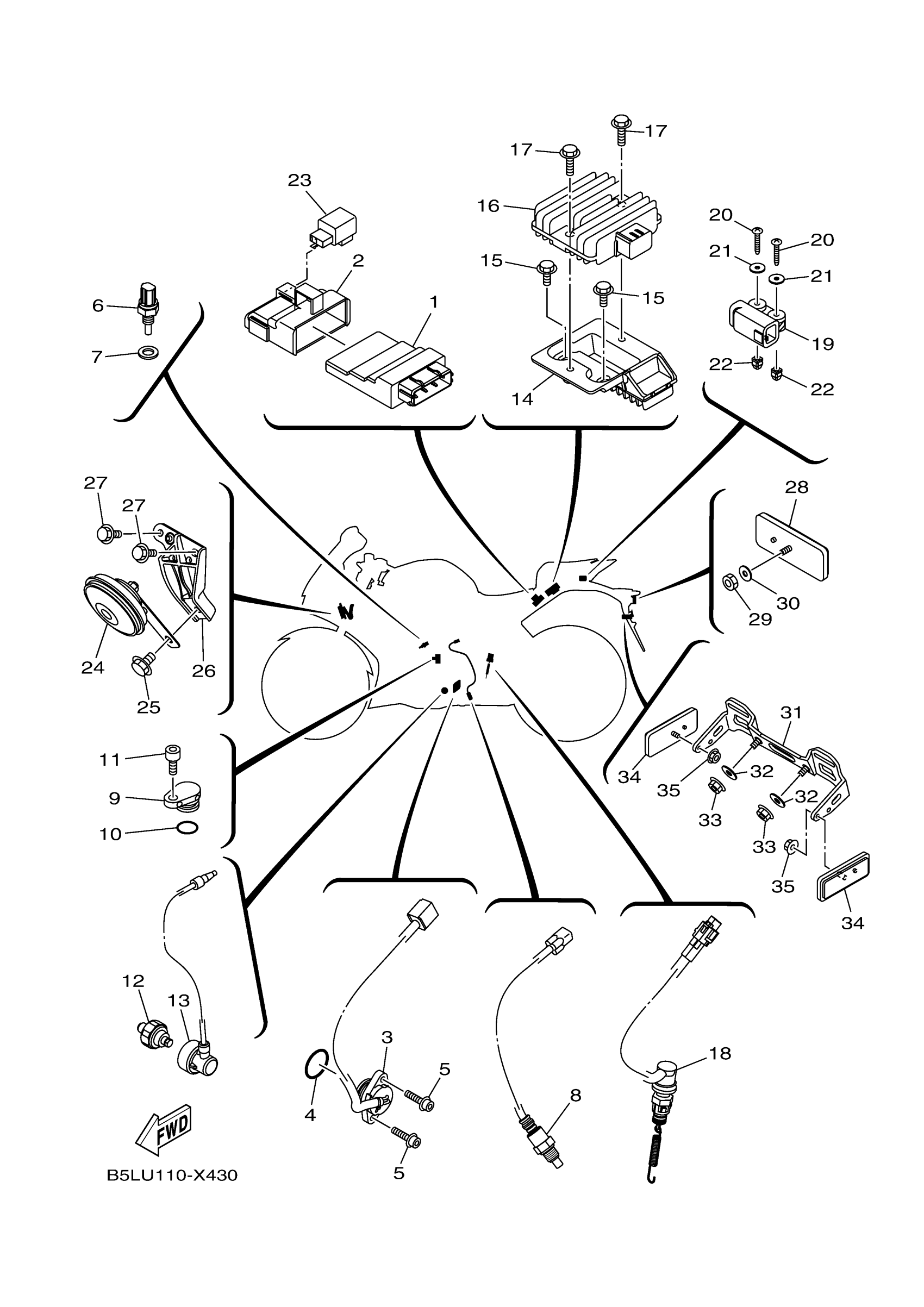

Yamaha YZFR3ARW (YZFR3 ABS) BVJF0 2024 ELECTRICAL 2 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

B02-H591A-10-00

$315.99

2

BAND

1WD-H5546-00-00

Unavailable

3

NEUTRAL SWITCH ASSY

1WD-H2540-00-00

Unavailable

4

O-RING (1S71)

93210-21801-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

6

THERMO UNIT

52B-H3591-00-00

$34.99

7

GASKET

90430-10804-00

Unavailable

8

SENSOR OXYGEN

1WD-H592A-10-00

$92.99

9

PLUG

2WD-E5189-00-00

Unavailable

10

O-RING (22U)

93210-15566-00

$7.49

11

BOLT

91332-06016-00

Unavailable

12

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

$70.99

13

LEAD WIRE ASSY

1WD-H1315-01-00

$14.99

14

COVER

1WD-H1961-00-00

Unavailable

15

BOLT, FLANGE DEEP RECESS

95D02-06016-00

$0.48

16

RECTIFIER & REGULATOR ASSY

1WD-H1960-00-00

Unavailable

17

BOLT, FLANGE DEEP RECESS

95D02-06025-00

Unavailable

18

STOP SWITCH ASSY

1WD-H2530-10-00

Unavailable

19

SENSOR, LEAN ANGLE

1WD-H2576-00-00

Unavailable

20

SCREW, ROUND TAPPING

90160-04009-00

Unavailable

21

WASHER, PLATE

90201-04028-00

Unavailable

22

NUT, ADJUSTING

4B4-84334-00-00

Unavailable

23

FLASHER RELAY ASSY

3HT-83350-01-00

Unavailable

24

HORN

1WD-H3371-00-00

Unavailable

25

BOLT, FLANGE DEEP

95D07-08012-00

Unavailable

26

STAY, HORN

1WD-H3378-00-00

Unavailable

27

BOLT, FLANGE DEEP RECESS

95D07-06016-00

Unavailable

28

REAR REFLECTOR ASSY

3C1-H5130-00-00

Unavailable

29

NUT, U

95617-05100-00

Unavailable

30

WASHER, PLATE

90201-05043-00

Unavailable

31

BRACKET, LICENSE

2MS-H4751-00-00

Unavailable

32

WASHER, PLATE

90201-06055-00

Unavailable

33

NUT,SELF-LOCKING

95607-06200-00

Unavailable

34

REAR REFLECTOR ASSY

3C1-H5130-00-00

Unavailable

35

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
