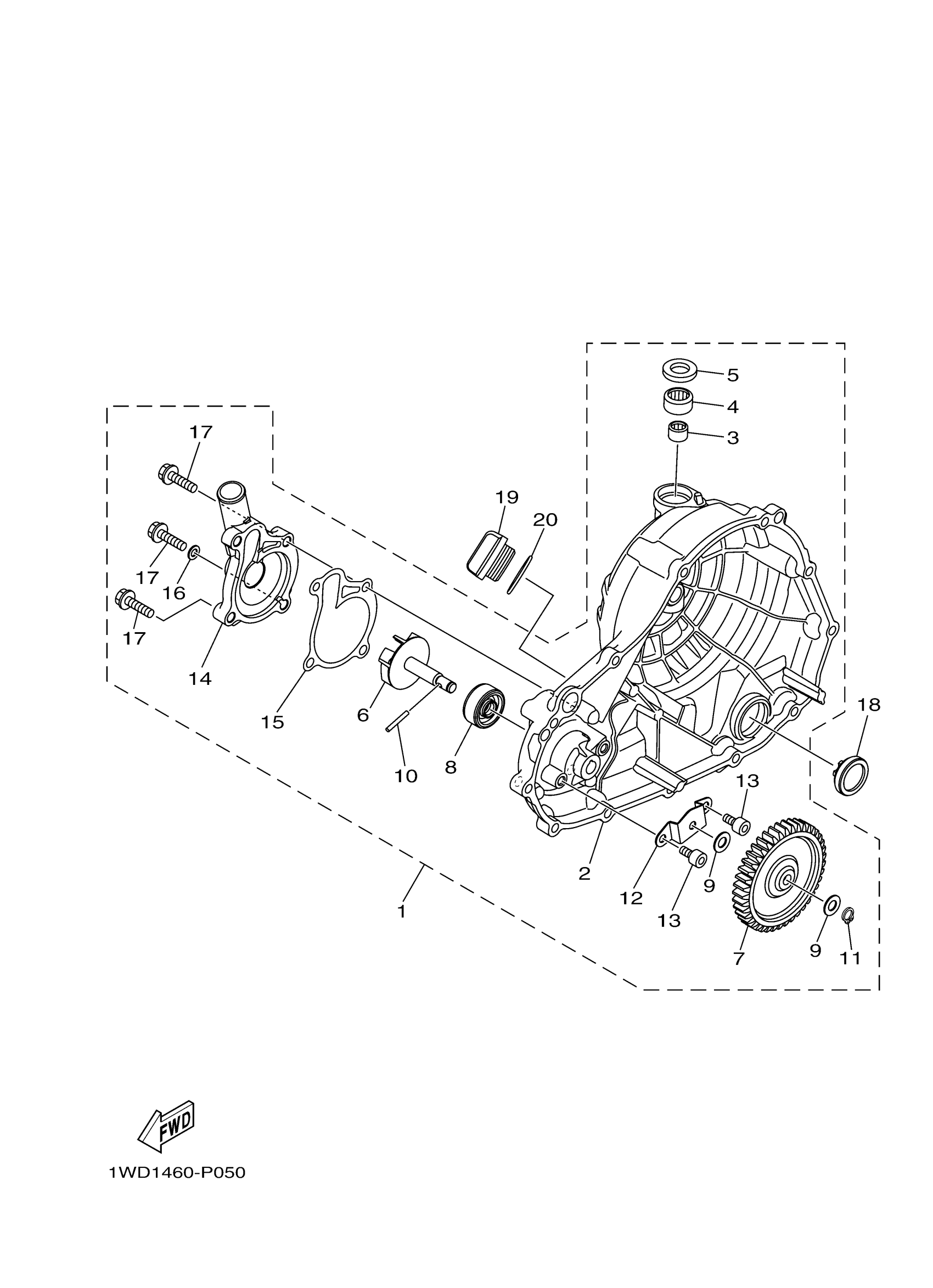

Yamaha YZFR3APP (YZFR3 ABS) BVJA 2023 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

1WD-E2420-00-00

$165.99

2

COVER, CRANKCASE 2

1WD-E5421-00-00

$97.99

3

BEARING

93317-11096-00

$23.99

4

BEARING

93315-21570-00

$16.99

5

OIL SEAL

93102-15805-00

$7.49

6

IMPELLER SHAFT ASSY

1WD-E2450-00-00

$50.99

7

GEAR

1WD-E2453-00-00

Unavailable

8

SEAL

33S-E2223-00-00

$68.99

9

WASHER

33S-E2456-00-00

$2.18

10

PIN, STRAIGHT

1WD-E319L-00-00

$0.99

11

CIRCLIP

99009-08400-00

$1.60

12

. PLATE

1WD-E2681-00-00

Unavailable

13

BOLT,SOCKET

91317-06010-00

$9.49

14

COVER, HOUSING

1WD-E2422-00-00

$131.99

15

GASKET, HOUSING COVER 2

1WD-E2428-00-00

$4.29

16

GASKET 256113960000

90430-06014-00

Unavailable

17

BOLT, FLANGE

95022-06025-00

Unavailable

18

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

19

PLUG, OIL LEVEL

1WD-E5362-00-00

Unavailable

20

O-RING

93210-27807-00

Unavailable
