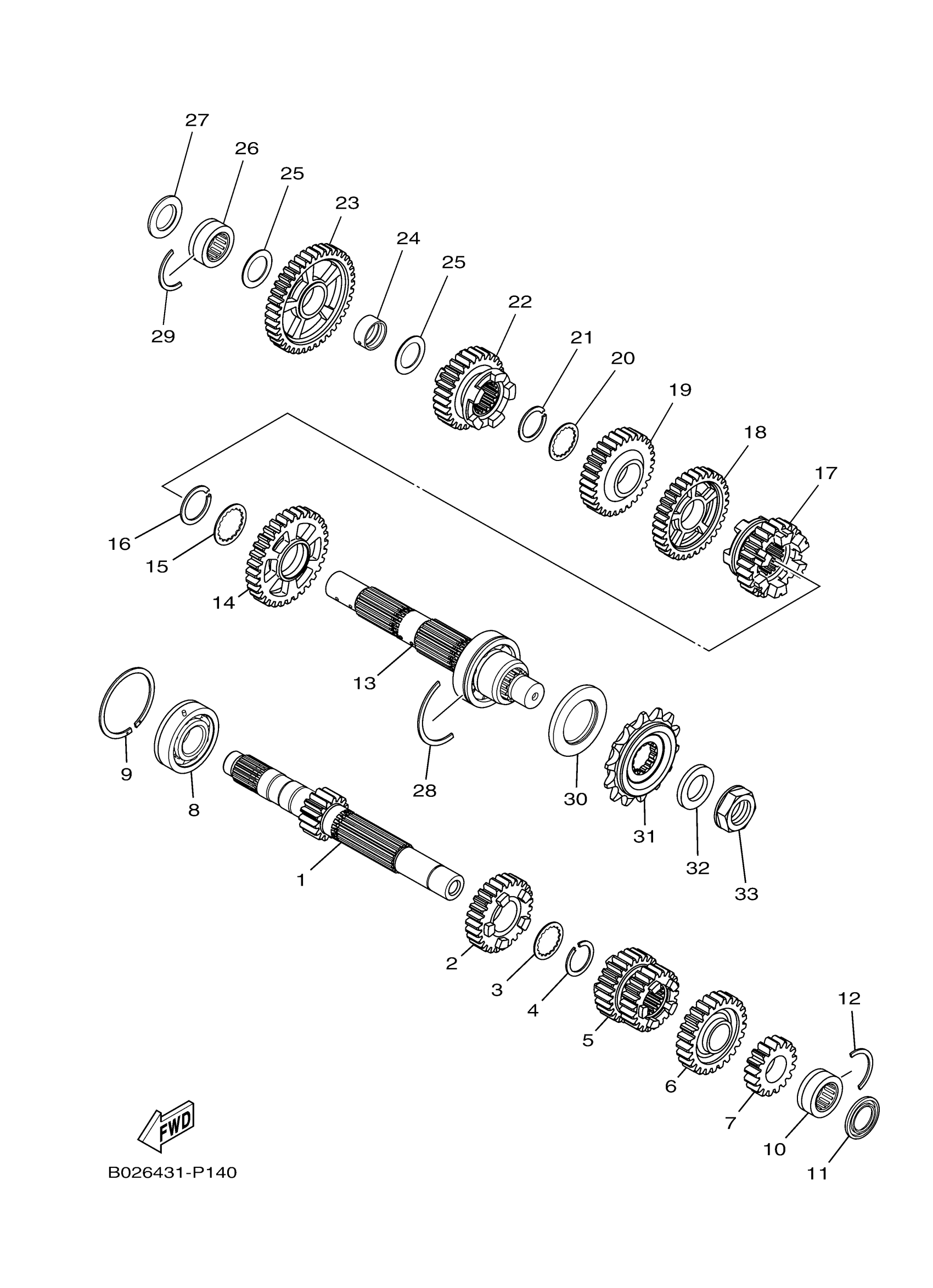

Yamaha YZFR3APP (YZFR3 ABS) BVJA 2023 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN (14T)

2MS-E7411-01-00

$111.74

1

AXLE, MAIN (14T)

2MS-E7411-10-00

Unavailable

2

GEAR, 5TH PINION (

2MS-E7151-01-00

$27.00

3

WASHER, CLAW

90214-22008-00

$2.09

4

CIRCLIP

93440-24200-00

$1.64

5

GEAR, 3RD PINION (23T/23T)

2MS-E7131-00-00

$56.59

6

GEAR, 6TH PINION (

2MS-E7161-01-00

$39.51

7

GEAR, 2ND PINION

2MS-E7121-00-00

$28.84

8

BEARING

93306-255Y9-00

Unavailable

9

CIRCLIP (168)

93440-52009-00

$9.09

10

BEARING

93311-420Y3-00

$23.56

11

OIL SEAL

93101-20802-00

Unavailable

12

CIR CLIP

278-17425-00-00

$7.01

13

DRIVE AXLE ASSY

1WD-E7402-00-00

Unavailable

14

GEAR, 2ND WHEEL (31T)

2MS-E7221-00-00

$54.14

15

WASHER

90209-25011-00

Unavailable

16

CIRCLIP

93440-28184-00

Unavailable

17

GEAR, 6TH WHEEL (24T)

2MS-E7261-00-00

$52.16

18

GEAR, 3RD WHEEL (31T)

2MS-E7231-00-00

$36.63

19

GEAR, 4TH WHEEL (25T)

2MS-E7241-00-00

$32.30

20

WASHER, CLAW

90214-22008-00

$2.09

21

CIRCLIP

93440-24200-00

$1.64

22

GEAR, 5TH WHEEL (23T)

2MS-E7251-00-00

$40.30

23

GEAR, 1ST WHEEL (35T)

2MS-E7211-00-00

$50.91

24

COLLAR

90387-20814-00

$8.03

25

WASHER PLATE 328171160000

90201-20276-00

Unavailable

26

BEARING

93311-420Y3-00

$23.56

27

OIL SEAL

93101-20802-00

Unavailable

28

CIRCLIP 1

1WD-17424-00-00

Unavailable

29

CIR CLIP

278-17425-00-00

$7.01

30

OIL SEAL

93102-35808-00

Unavailable

31

SPROCKET, DRIVE

1WD-E7460-00-00

Unavailable

32

WASHER, PLATE

90201-20023-00

Unavailable

33

NUT

90179-20013-00

Unavailable
