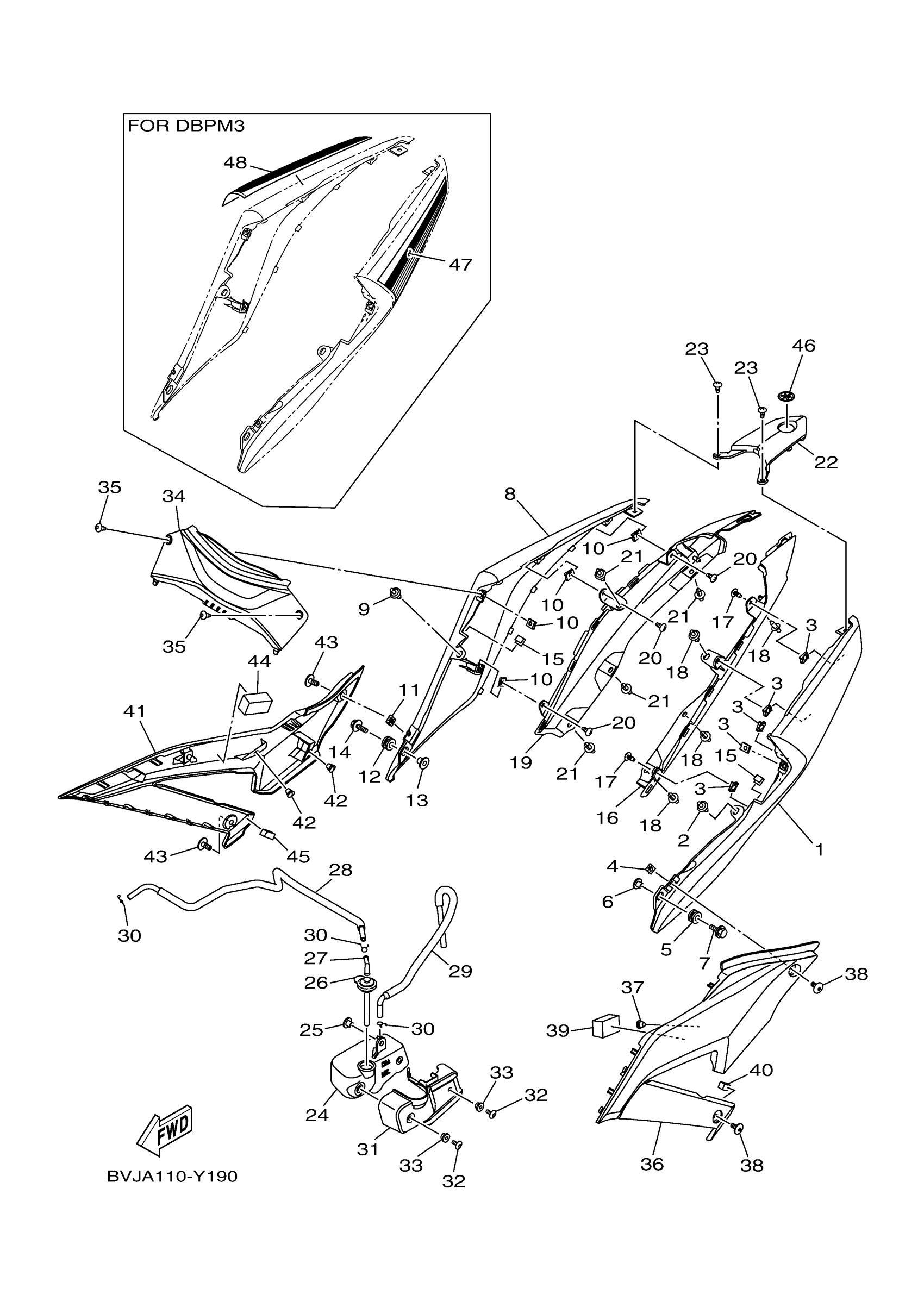

Yamaha YZFR3APP (YZFR3 ABS) BVJA 2023 SIDE COVER Diagram
#
16
MOLE, SIDE COVER 1
1WD-F171L-00-00
Unavailable
17
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
19
MOLE, SIDE COVER 2
1WD-F171M-00-00
Unavailable
20
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
22
MOLE, SIDE COVER 3
1WD-F171N-00-00
Unavailable
23
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
24
TANK, RECOVERY
1WD-F1871-01-00
Unavailable
25
COLLAR
90387-06857-00
Unavailable
26
CAP
1WD-F1875-02-00
Unavailable
27
ELBOW
26H-21828-00-00
Unavailable
28
PIPE 1
1WD-F1816-02-00
Unavailable
29
PIPE 2
1WD-F1817-01-00
Unavailable
30
CLIP 101235600
90467-08003-00
Unavailable
31
COVER
BS7-F172W-00-00
Unavailable
32
BOLT
90111-05003-00
Unavailable
33
SPACER (25G)
90560-06244-00
Unavailable
34
COVER, SIDE 3
1WD-F1731-00-P7
Unavailable
35
SCREW, ROUND TAPPING
90160-05810-00
Unavailable
36
COVER, SIDE 5
BS7-F171E-00-00
Unavailable
37
PLUG(1NL)
90338-07180-00
Unavailable
38
BOLT
90111-05003-00
Unavailable
39
DAMPER, PLATE
90520-30805-00
Unavailable
40
DAMPER, PLATE
90520-10850-00
Unavailable
41
COVER, SIDE 6
BS7-F171X-00-00
Unavailable
42
PLUG(1NL)
90338-07180-00
Unavailable
43
BOLT
90111-05003-00
Unavailable
44
DAMPER, PLATE
90520-30805-00
Unavailable
45
DAMPER, PLATE
90520-10850-00
Unavailable
46
TUNING FORK MARK
1PA-F836B-20-00
Unavailable
