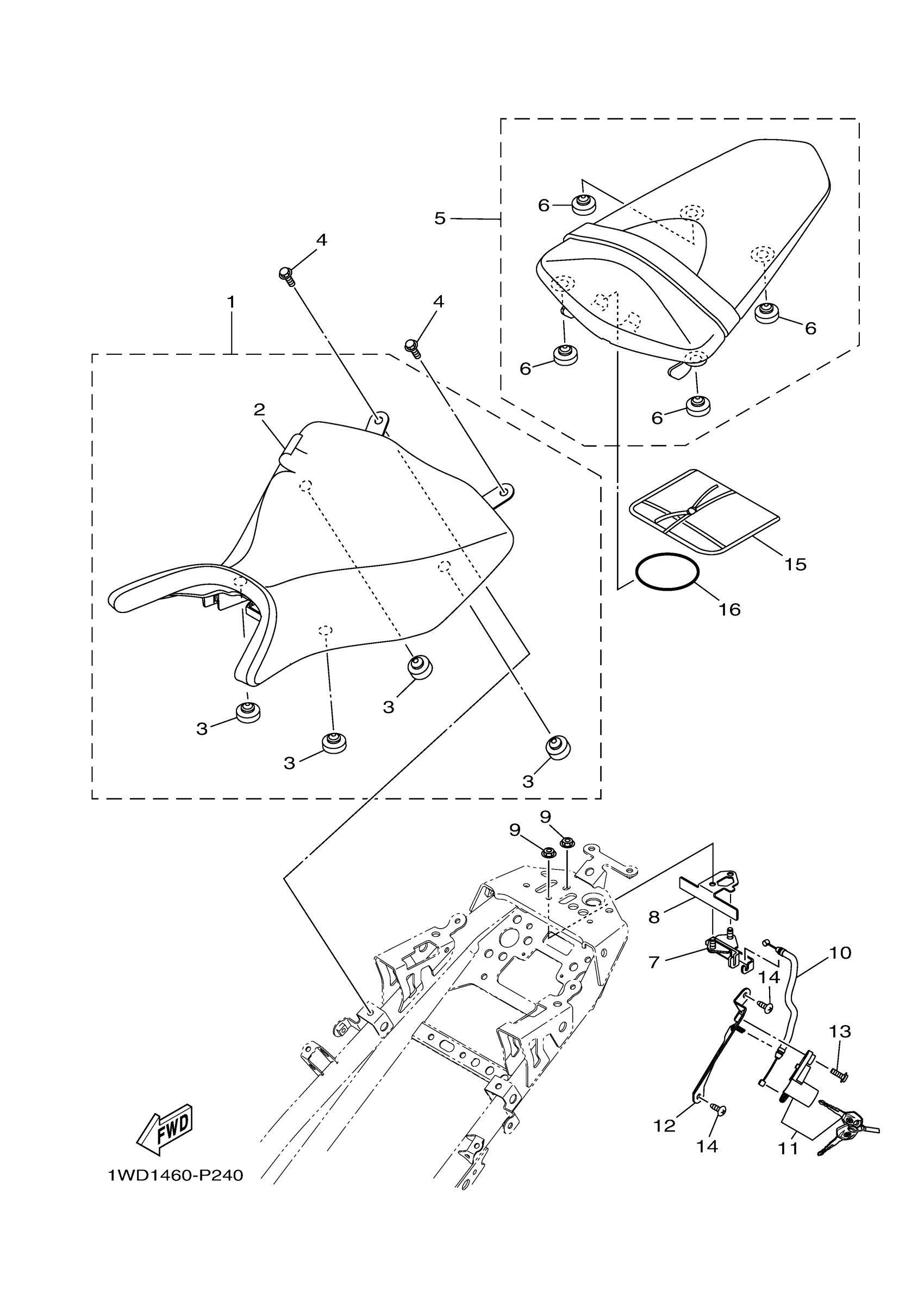

Yamaha YZFR3APP (YZFR3 ABS) BVJA 2023 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

1WD-F4710-03-00

$43.39

2

COVER, SINGLE SEAT

1WD-F4711-01-00

$9.66

3

PAD, SEAT

5BP-F4741-00-00

$2.30

4

BOLT, FLANGE

95022-06012-00

$2.80

5

TANDEM SEAT ASSY

1WD-F4750-01-00

$56.90

6

PAD, SEAT

3C1-F4741-00-00

Unavailable

7

SEAT LOCK ASSY

1WD-F4780-00-00

$18.43

8

PLATE

1WD-F4792-00-00

Unavailable

9

NUT, FLANGE(4MV)

95707-06500-00

$0.73

10

CABLE, SEAT LOCK

1WD-F478E-00-00

$5.97

11

ROTOR SUB ASSY WITH KEY

1WD-WF479-00-00

$59.66

12

STAY, LOCK

1WD-F117K-00-00

$3.77

13

SCREW, WITH WASHER

90159-06054-00

$1.06

14

SCREW, TAPPING

97702-50016-00

$1.85

15

TOOL KIT

B9T-F8100-01-00

Unavailable

16

BAND, BATTERY

5VV-H2131-00-00

Unavailable
