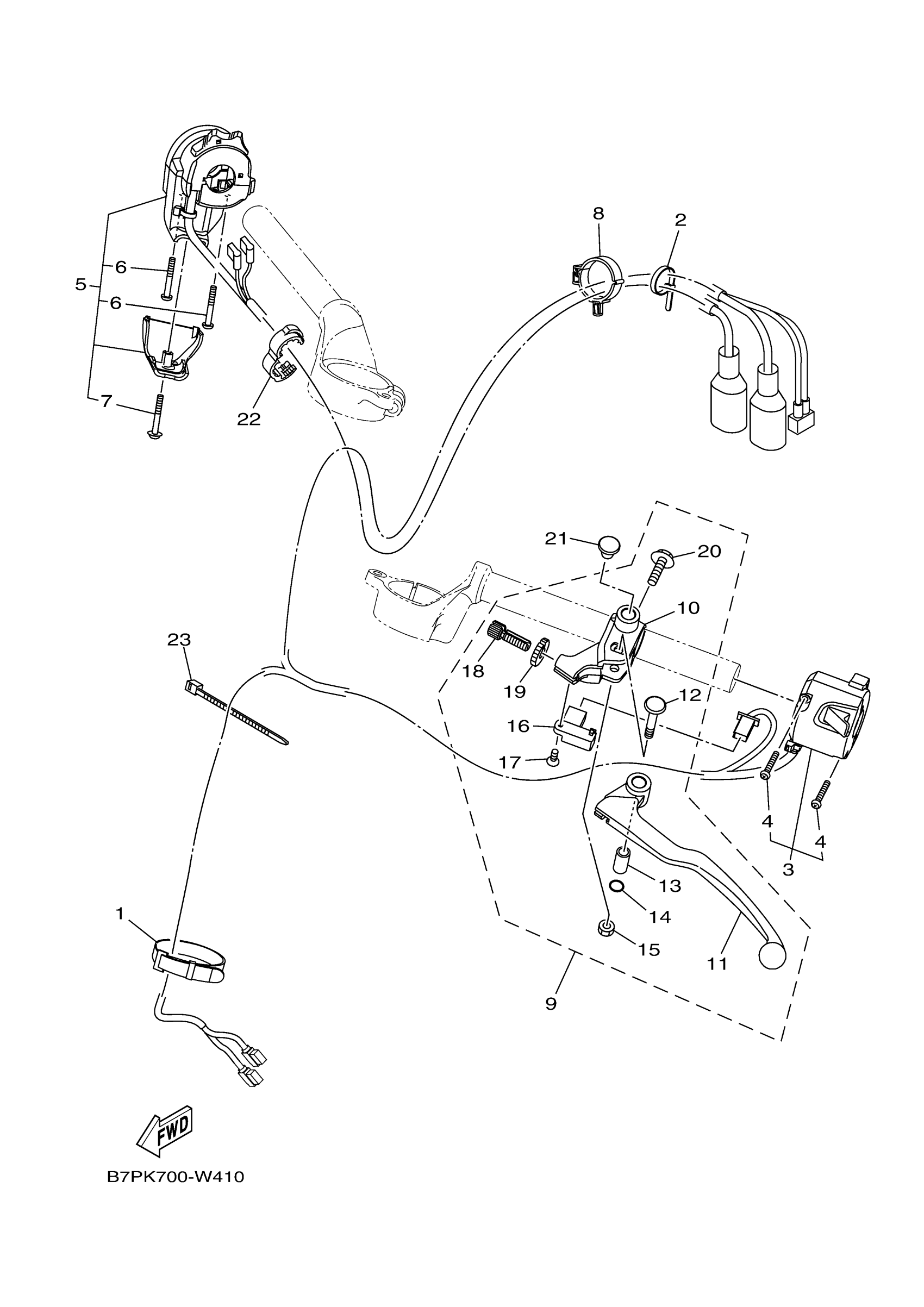

Yamaha YZFR3APP (YZFR3 ABS) BVJA 2023 HANDLE SWITCH & LEVER Diagram

#

Description
Price

1

BAND, SWITCH CORD

25G-83936-01-00

$4.78

2

CLAMP

90464-36005-00

Unavailable

3

SWITCH, HANDLE 4

BS7-H3972-01-00

$91.99

4

SCREW, PAN HEAD

98517-04025-00

Unavailable

5

SWITCH, HANDLE 2

BS7-H3975-02-00

$63.99

6

SCREW, PAN

98507-04030-00

Unavailable

7

. SCREW, WITH WASHER

97607-04230-00

Unavailable

8

CLAMP

90464-30001-00

$7.49

9

LEVER HOLDER ASSY (LEFT)

1WD-H2910-00-00

$99.99

10

HOLDER, LEVER 1

1WD-H2911-00-00

$17.99

11

LEVER 1

1WD-H3912-00-00

$12.49

12

BOLT, LEVER

31A-83945-00-00

$5.49

13

COLLAR, LEVER 1

31A-83913-00-00

$22.99

14

O-RING (260)

93210-10118-00

$7.49

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

SWITCH

5BP-H2917-00-00

Unavailable

17

SCREW, FLAT

98707-03008-00

Unavailable

18

BOLT

90123-08002-00

Unavailable

19

NUT

90179-08030-00

Unavailable

20

BOLT, WITH WASHER

97507-06525-00

Unavailable

21

PLUG

90338-09803-00

Unavailable

22

CLAMP

90464-13227-00

Unavailable

23

CLAMP (5MX1)

90464-22800-00

Unavailable
