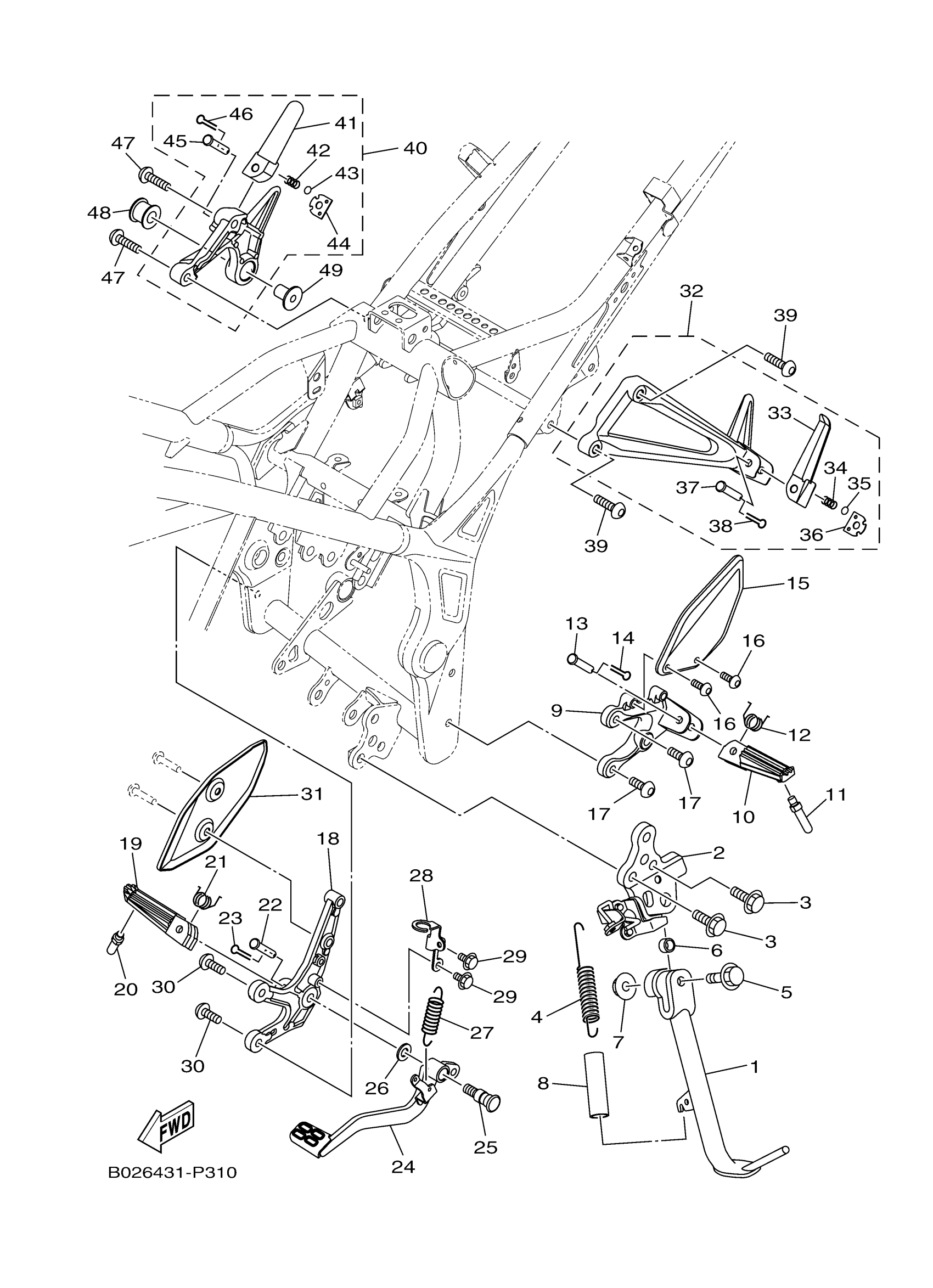

Yamaha YZFR3ANW (YZFR3 ABS WGP 60TH) B5LR 2022 STAND & FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

1WD-F7311-00-00

$32.99

2

BRACKET, SIDE STAND

1WD-F7321-10-00

$74.99

3

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

4

SPRING, TENSION

90506-23812-00

$10.49

5

BOLT, WASHER BASED

90105-106A7-00

$5.60

6

COLLAR

90387-10010-00

$5.60

7

NUT, S/L FLANGE

95602-10200-00

$4.82

8

HOSE (L95)

90445-212G3-00

$8.49

9

BRACKET 2

1WD-F7442-01-00

Unavailable

10

FOOTREST

1WD-F7451-00-00

$21.99

11

BOLT

1WD-F7435-00-00

$9.49

12

SPRING, TORSION

90508-183B9-00

$4.29

13

PIN, CLEVIS

90240-08145-00

$4.41

14

PIN, COTTER

91490-25020-00

$3.19

15

PLATE 1

2MS-F7445-00-00

$59.99

16

BOLT-COIL COVER TO CAM COVER

90111-06013-00

Unavailable

17

BOLT

90109-085G6-00

Unavailable

18

BRACKET 3

1WD-F7443-00-00

Unavailable

19

FOOTREST

1WD-F7461-00-00

Unavailable

20

BOLT

1WD-F7435-00-00

$9.49

21

SPRING, TORSION

90508-183B9-00

$4.29

22

PIN, CLEVIS

90240-08145-00

$4.41

23

PIN, COTTER

91490-25020-00

$3.19

24

PEDAL, BRAKE

1WD-F7211-00-00

Unavailable

25

SHAFT

4BP-27261-10-00

Unavailable

26

WASHER, PLATE

90201-10021-00

Unavailable

27

SPRING TENSION

90506-26807-00

Unavailable

28

STAY, STOP SWITCH

1WD-F144G-00-00

Unavailable

29

BOLT, FLANGE

95812-06010-00

Unavailable

30

BOLT

90109-085G6-00

Unavailable

31

PLATE 2

2MS-F7446-00-00

Unavailable

32

REAR FOOTREST ASSY 1

1WD-F7430-01-00

Unavailable

33

FOOTREST, REAR 1

1WD-F7431-01-00

Unavailable

34

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

35

BALL

93501-04011-00

Unavailable

36

WASHER, SPECIAL

1WD-F7437-00-00

Unavailable

37

PIN, CLEVIS

90240-08145-00

$4.41

38

PIN, COTTER

91490-25020-00

$3.19

39

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

Unavailable

40

REAR FOOTREST ASSY 2

1WD-F7440-01-00

Unavailable

41

FOOTREST, REAR 2

1WD-F7441-01-00

Unavailable

42

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

43

BALL

93501-04011-00

Unavailable

44

WASHER, SPECIAL

1WD-F7437-00-00

Unavailable

45

PIN, CLEVIS

90240-08145-00

$4.41

46

PIN, COTTER

91490-25020-00

$3.19

47

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

Unavailable

48

DAMPER, FOOTREST 2

4XV-27424-00-00

Unavailable

49

COLLAR

90387-08812-00

Unavailable
