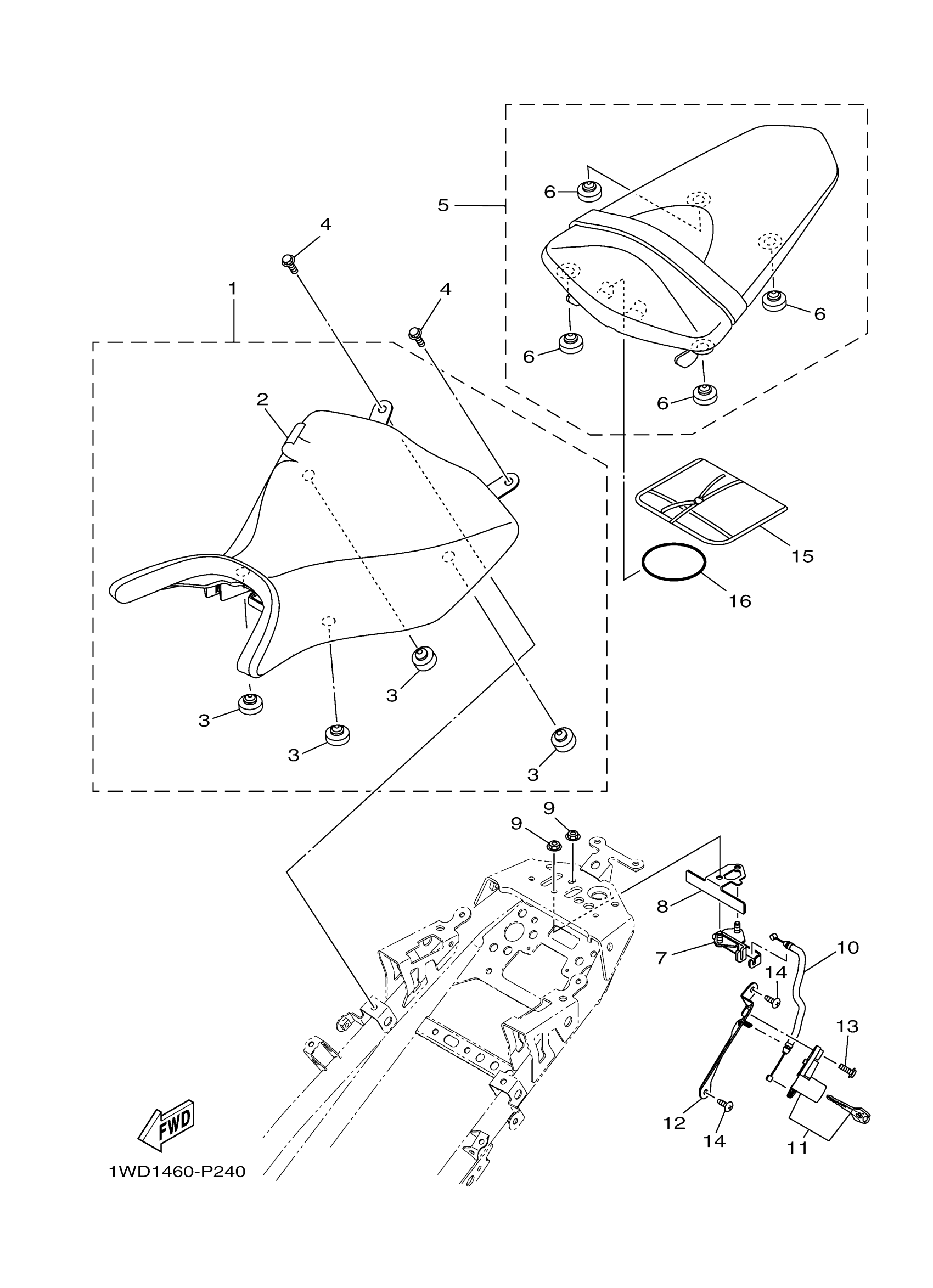

Yamaha YZFR3ANW (YZFR3 ABS WGP 60TH) B5LR 2022 SEAT Diagram

Description

Price

SINGLE SEAT ASSY

1WD-F4710-03-00

$43.99

COVER, SINGLE SEAT

1WD-F4711-01-00

$11.49

PAD, SEAT

5BP-F4741-00-00

$3.25

BOLT, FLANGE

95022-06012-00

$3.29

TANDEM SEAT ASSY

1WD-F4750-01-00

$66.99

PAD, SEAT

3C1-F4741-00-00

Unavailable

SEAT LOCK ASSY

1WD-F4780-00-00

$18.99

PLATE

1WD-F4792-00-00

Unavailable

NUT, FLANGE(4MV)

95707-06500-00

$1.23

CABLE, SEAT LOCK

1WD-F478E-00-00

$7.49

ROTOR SUB ASSY WITH KEY

1WD-WF479-00-00

$61.99

STAY, LOCK

1WD-F117K-00-00

$3.17

SCREW, WITH WASHER

90159-06054-00

$2.17

SCREW, TAPPING

97702-50016-00

$2.39

TOOL KIT

B9T-F8100-01-00

$16.99

BAND, BATTERY

5VV-H2131-00-00

Unavailable
