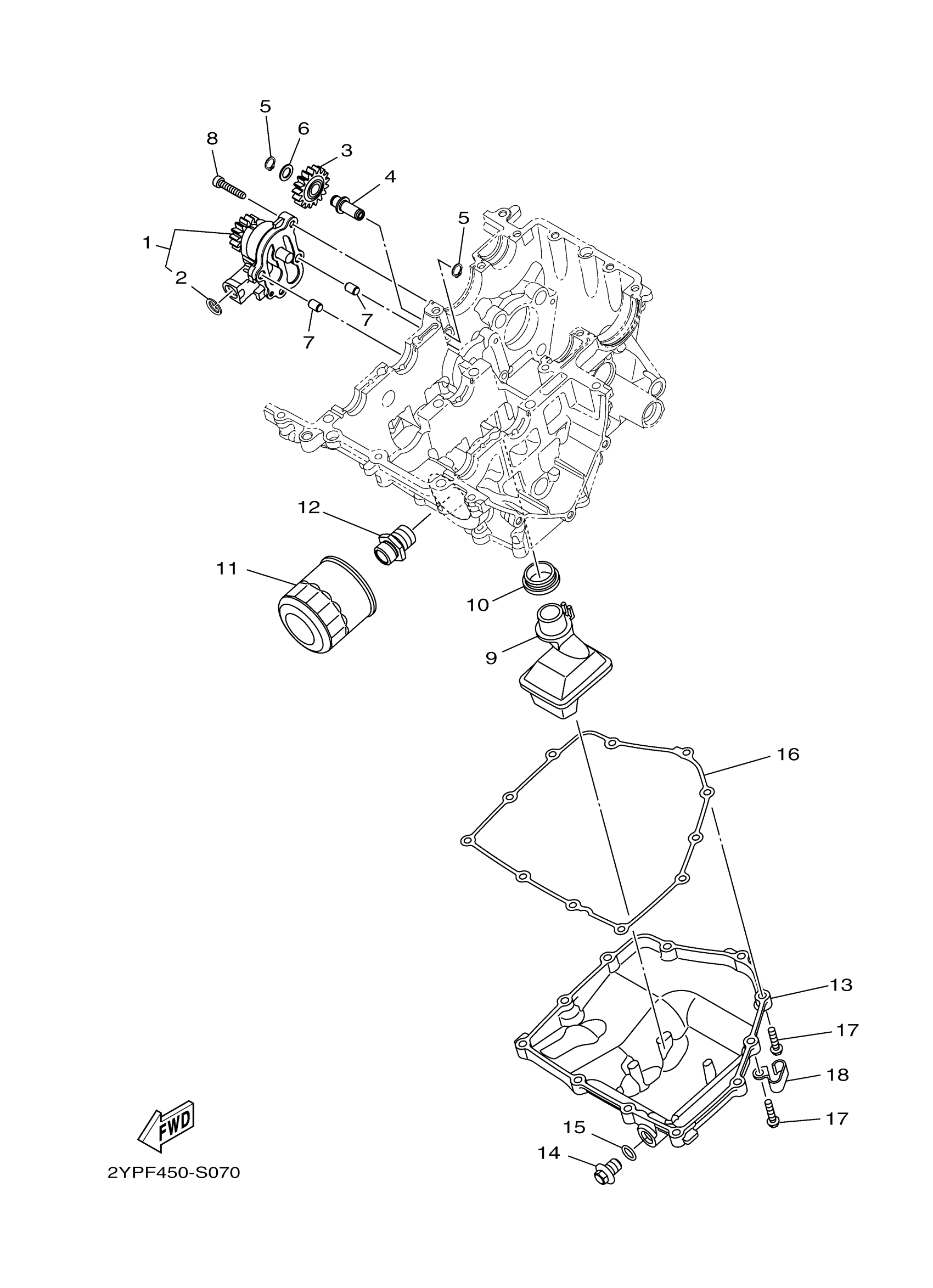

Yamaha YZFR3ANW (YZFR3 ABS WGP 60TH) B5LR 2022 OIL PUMP Diagram

OIL PUMP ASSY

1WD-E3300-01-00

$53.99

CIRCLIP

99009-15500-00

$10.49

GEAR, OIL PUMP IDLE

1WD-E3341-00-00

$21.99

SHAFT, IDLE GEAR

1WD-E3342-00-00

$21.99

CIRCLIP(10W)

99009-10400-00

$4.73

WASHER, PLAIN(735)

90201-10119-00

Unavailable

PIN, DOWEL

99530-08012-00

Unavailable

BOLT

91332-06030-00

Unavailable

STRAINER HOUSING ASSY

1WD-E3410-00-00

$59.99

SEAL, OIL STRAINER

1WD-E3415-00-00

$3.17

ELEMENT ASSY, OIL CLEANER

1WD-E3440-21-00

$14.99

BOLT, UNION

90401-20011-00

$37.99

COVER, STRAINER

1WD-E3417-01-00

$32.99

PLUG, STRAIGHT SCREW (5MX1)

90340-12808-00

$4.56

GASKET

812-11198-00-00

$6.99

GASKET, STRAINER COVER

1WD-E3414-00-00

Unavailable

BOLT, FLANGE

95022-06025-00

Unavailable

CLAMP (5D91)

90462-08810-00

Unavailable
