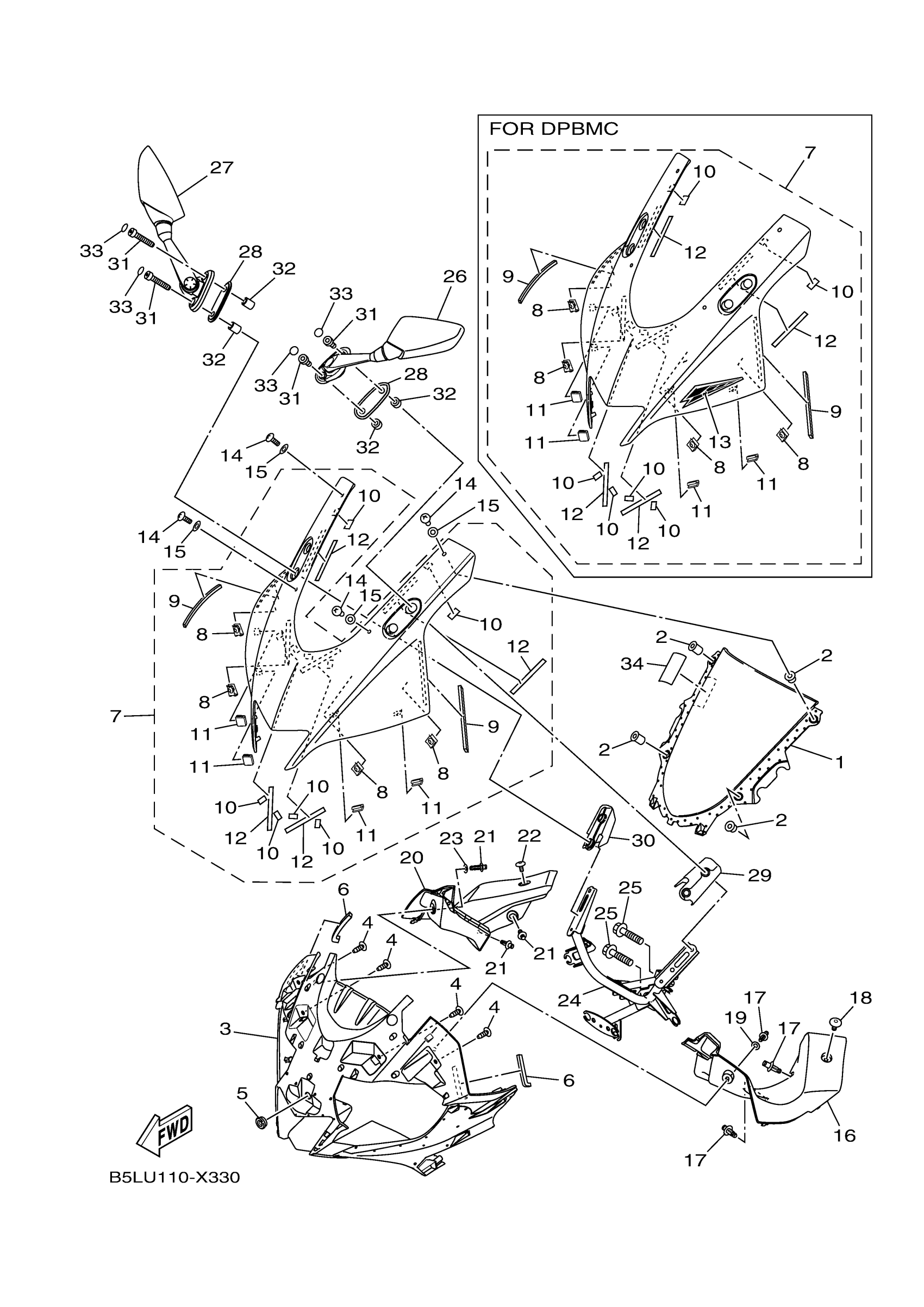

Yamaha YZFR3ANL (YZFR3 ABS) B5LU 2022 WINDSHIELD Diagram

#

Description
Price

1

WINDSHIELD

BS7-F8381-00-00

$45.99

2

NUT(1KT)

90179-05523-00

$8.49

3

BODY, FRONT UPPER 1

BS7-F835G-00-00

$84.99

4

SCREW, TAPPING

97702-50016-00

$2.39

5

GROMMET

90480-13014-00

$8.49

6

DAMPER, PLATE

90520-07808-00

$0.33

7

BODY COWLING SUB A

BS7-XF83F-10-P4

$41.99

8

NUT, SPRING(1YT)

90183-05042-00

$5.60

9

DAMPER, PLATE

90520-07808-00

$0.33

10

SEAL

31B-F8307-00-00

$2.19

11

TRIM

1WD-F8376-00-00

$3.24

12

SEAL 2

1WD-F414E-00-00

$3.23

14

SCREW, ROUND HEAD(1UX)

90150-05023-00

$4.19

15

. WASHER, PLATE

90202-05088-00

Unavailable

16

PANEL, INNER 4

BS7-F836N-00-00

$11.49

17

RIVET

90269-06816-00

Unavailable

18

BOLT

90111-05003-00

Unavailable

19

DAMPER, LEG SHIELD

BS7-F8327-00-00

Unavailable

20

PANEL, INNER 5

BS7-F836R-00-00

Unavailable

21

RIVET

90269-06816-00

Unavailable

22

BOLT

90111-05003-00

Unavailable

23

DAMPER, LEG SHIELD

BS7-F8327-00-00

Unavailable

24

STAY 1

BS7-F8356-00-00

Unavailable

25

BOLT, FLANGE

95817-08035-00

Unavailable

26

REAR VIEW MIRROR ASSY (LEFT)

BS7-F6280-00-00

Unavailable

27

REAR VIEW MIRROR ASSY (RIGHT)

BS7-F6290-00-00

Unavailable

28

PLATE, RUBBER 1 (BK61)

BK6-F8483-00-00

Unavailable

29

PLATE, RUBBER 2

BS7-F8484-00-00

Unavailable

30

PLATE, RUBBER 3

BS7-F8485-00-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

32

COLLAR

90387-06131-00

Unavailable

33

CAP BOLT

20P-F3469-00-00

Unavailable

34

LABEL, NOTICE WINDSHIELD 1

1WD-F815K-10-00

Unavailable
