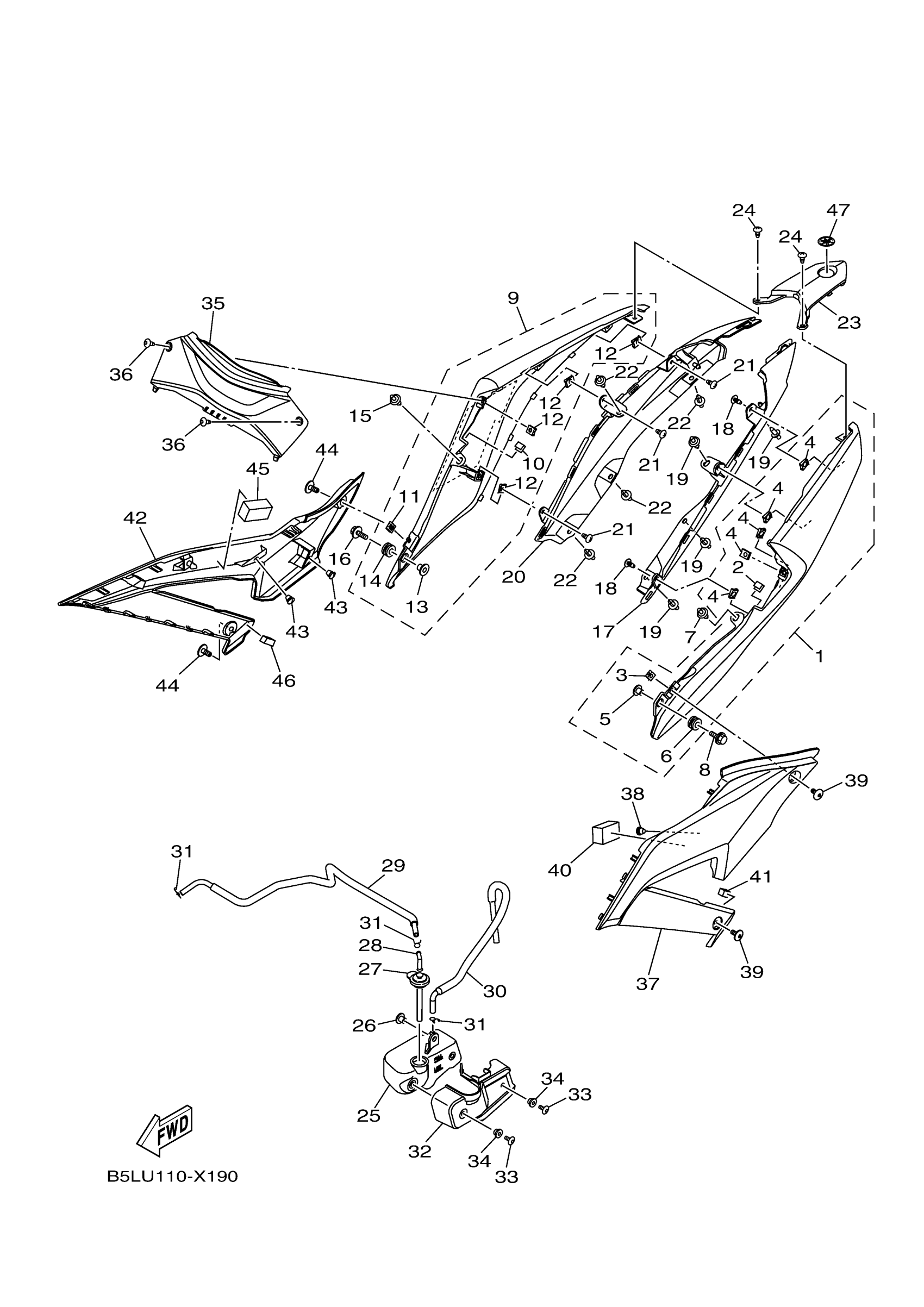

Yamaha YZFR3ANL (YZFR3 ABS) B5LU 2022 SIDE COVER Diagram
#
17
MOLE, SIDE COVER 1
1WD-F171L-00-00
Unavailable
18
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
20
MOLE, SIDE COVER 2
1WD-F171M-00-00
Unavailable
21
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
23
MOLE, SIDE COVER 3
1WD-F171N-00-00
Unavailable
24
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
25
TANK, RECOVERY
1WD-F1871-01-00
Unavailable
26
COLLAR
90387-06857-00
Unavailable
27
CAP
1WD-F1875-02-00
Unavailable
28
ELBOW
26H-21828-00-00
Unavailable
29
PIPE 1
1WD-F1816-02-00
Unavailable
30
PIPE 2
1WD-F1817-01-00
Unavailable
31
CLIP 101235600
90467-08003-00
Unavailable
32
COVER
BS7-F172W-00-00
Unavailable
33
BOLT
90111-05003-00
Unavailable
34
SPACER (25G)
90560-06244-00
Unavailable
35
COVER, SIDE 3
1WD-F1731-00-P7
Unavailable
36
SCREW, ROUND TAPPING
90160-05810-00
Unavailable
37
COVER, SIDE 5
BS7-F171E-00-00
Unavailable
38
PLUG(1NL)
90338-07180-00
Unavailable
39
BOLT
90111-05003-00
Unavailable
40
DAMPER, PLATE
90520-30805-00
Unavailable
41
DAMPER, PLATE
90520-10850-00
Unavailable
42
COVER, SIDE 6
BS7-F171X-00-00
Unavailable
43
PLUG(1NL)
90338-07180-00
Unavailable
44
BOLT
90111-05003-00
Unavailable
45
DAMPER, PLATE
90520-30805-00
Unavailable
46
DAMPER, PLATE
90520-10850-00
Unavailable
47
TUNING FORK MARK
1PA-F836B-01-00
Unavailable
