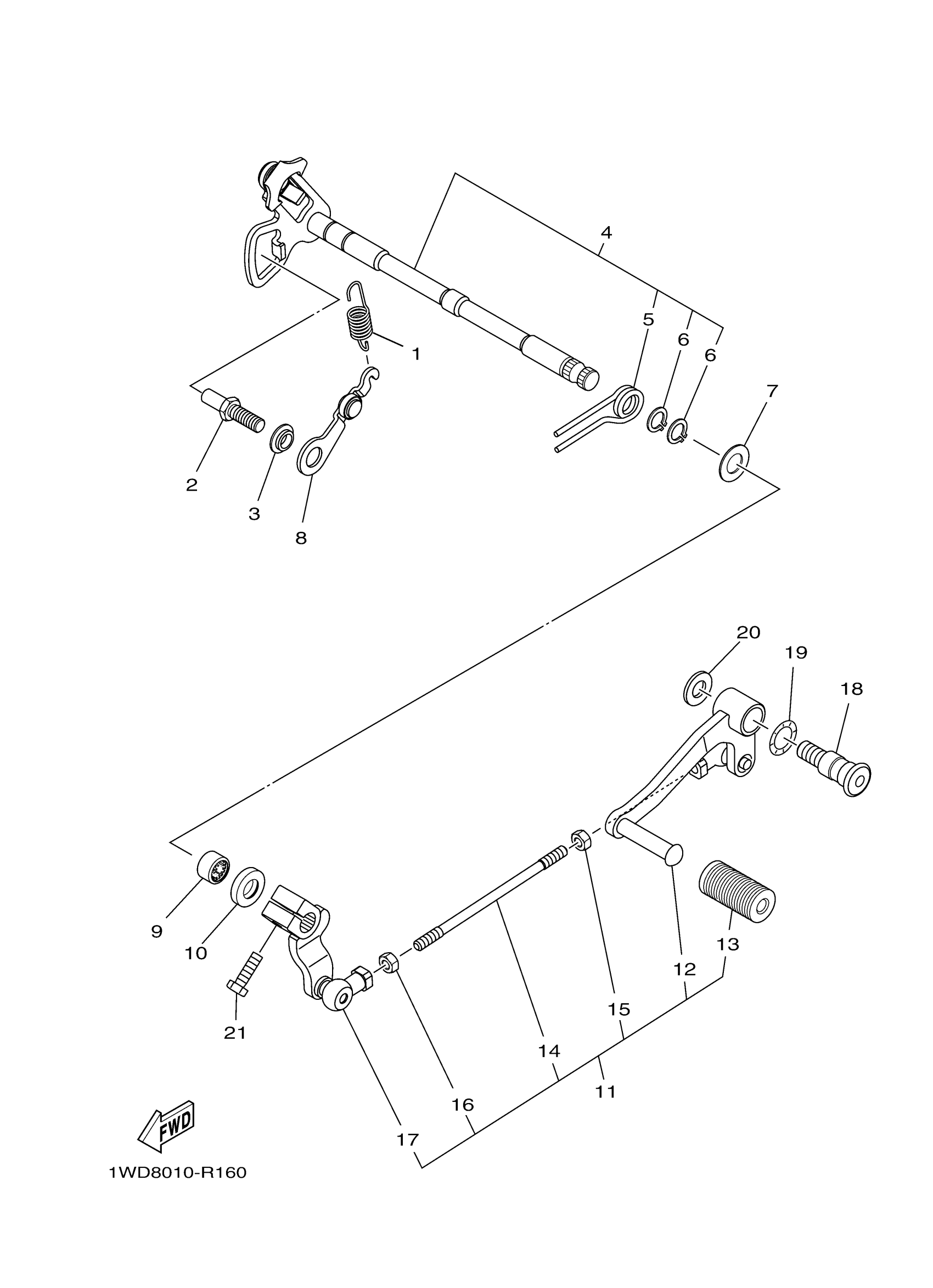

Yamaha YZFR3ANL (YZFR3 ABS) B5LU 2022 SHIFT SHAFT Diagram

#

Description
Price

1

SPRING

1WD-E8337-00-00

$1.07

2

STOPPER, SCREW

1WD-E8127-10-00

$16.99

3

SPACER

1WD-E8175-00-00

Unavailable

4

SHIFT SHAFT ASSY

1WD-E8101-00-00

Unavailable

5

SPRING, TORSION

90508-29806-00

$3.50

6

CIRCLIP(10Y)

99009-12400-00

$3.59

7

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

8

STOPPER LEVER ASSY

1WD-E8140-01-00

$8.99

9

BEARING

93317-11295-00

$46.99

10

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

11

CHANGE PEDAL ASSY

B1X-E8110-01-00

$49.99

12

PEDAL, SHIFT

1WD-E8111-00-00

$45.99

13

COVER, SHIFT PEDAL

1EG-E8113-02-00

Unavailable

14

ROD, SHIFT

1WD-E8115-00-00

$30.99

15

NUT

90170-06023-00

$5.60

16

NUT, HEXAGON

95380-06600-00

Unavailable

17

ARM, SHIFT

1WD-E8112-00-00

Unavailable

18

SHAFT

BS8-F7261-00-00

Unavailable

19

WASHER, WAVE

90206-14001-00

Unavailable

20

WASHER, PLATE

90201-10021-00

Unavailable

21

BOLT, HEXAGON

97017-06020-00

Unavailable
