Description

Price

1

SINGLE SEAT ASSY

1WD-F4710-03-00

$43.99

2

COVER, SINGLE SEAT

1WD-F4711-01-00

$11.49

3

PAD, SEAT

5BP-F4741-00-00

$3.25

4

BOLT, FLANGE

95022-06012-00

$3.29

5

TANDEM SEAT ASSY

1WD-F4750-01-00

$66.99

6

PAD, SEAT

3C1-F4741-00-00

Unavailable

7

SEAT LOCK ASSY

1WD-F4780-00-00

$18.99

8

PLATE

1WD-F4792-00-00

Unavailable

9

NUT, FLANGE(4MV)

95707-06500-00

$1.23

10

CABLE, SEAT LOCK

1WD-F478E-00-00

$7.49

11

ROTOR SUB ASSY WITH KEY

1WD-WF479-00-00

$61.99

12

STAY, LOCK

1WD-F117K-00-00

$3.17

13

SCREW, WITH WASHER

90159-06054-00

$2.17

14

SCREW, TAPPING

97702-50016-00

$2.39

15

TOOL KIT

B9T-F8100-01-00

$16.99

16

BAND, BATTERY

5VV-H2131-00-00

Unavailable

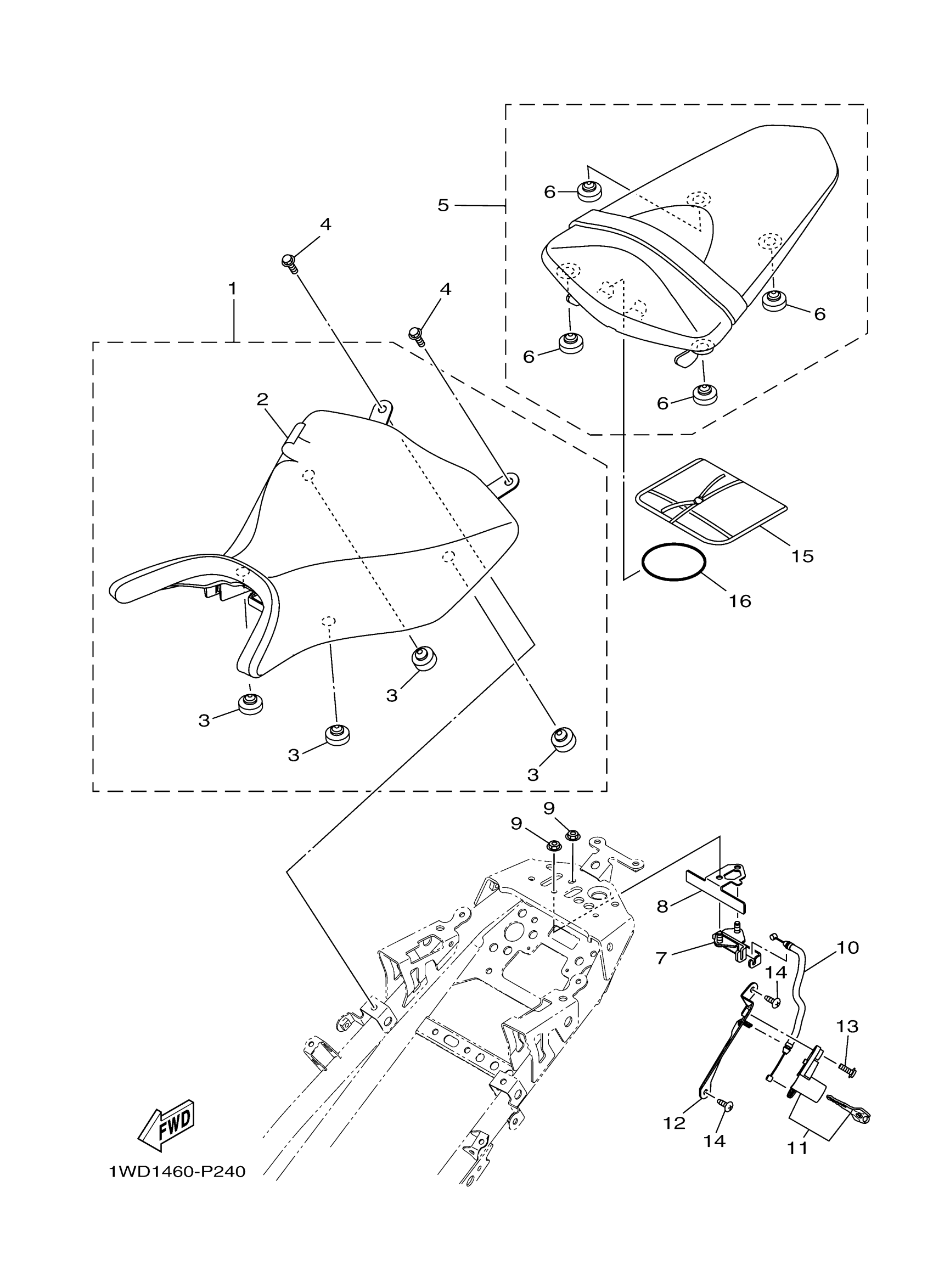

Yamaha YZFR3ANL (YZFR3 ABS) B5LU 2022 SEAT Diagram

SINGLE SEAT ASSY

COVER, SINGLE SEAT

PAD, SEAT

BOLT, FLANGE

TANDEM SEAT ASSY

PAD, SEAT

SEAT LOCK ASSY

PLATE

NUT, FLANGE(4MV)

CABLE, SEAT LOCK

ROTOR SUB ASSY WITH KEY

STAY, LOCK

SCREW, WITH WASHER

SCREW, TAPPING

TOOL KIT

BAND, BATTERY
