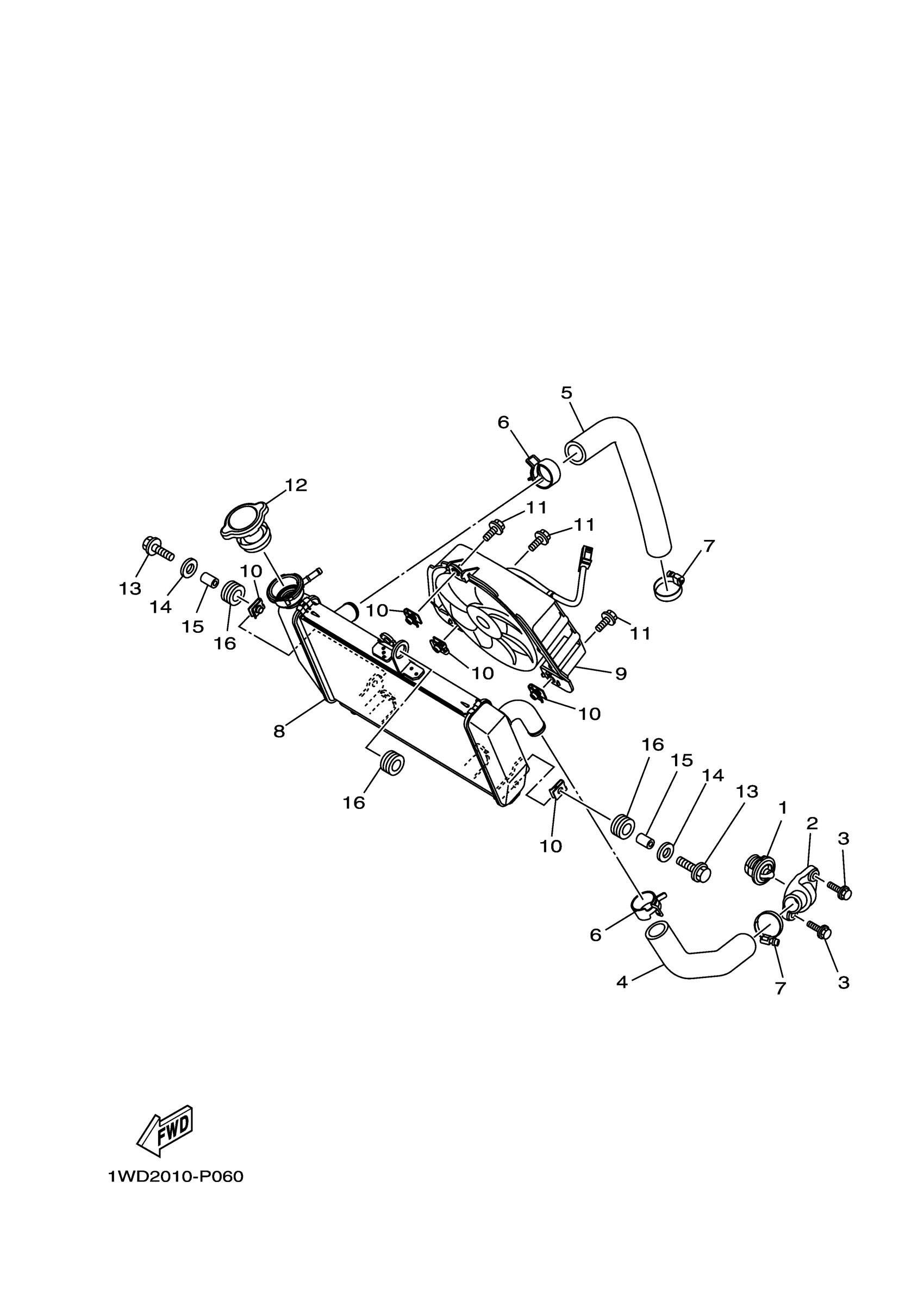

Yamaha YZFR3ANL (YZFR3 ABS) B5LU 2022 RADIATOR & HOSE Diagram

#

Description
Price

1

THERMOSTAT

5P0-12411-01-00

Unavailable

2

COVER, THERMOSTAT

1WD-E2413-00-00

$19.99

3

BOLT, FLANGE

95022-06020-00

$3.62

4

HOSE 2

2MS-E2577-00-00

$10.49

5

HOSE 3

1WD-E2578-00-00

$17.99

6

CLIP

90467-250A1-00

$3.28

7

HOSE CLAMP ASSY

90450-28001-00

$14.99

8

RADIATOR COMP

1WD-E2461-00-00

$124.99

9

BLOWER ASSY

2MS-E2405-00-00

$141.99

10

NUT 1

1WD-E2671-00-00

$2.28

11

BOLT, BLOWER HOLDING

5YP-E2675-00-00

$4.11

12

CAP, RADIATOR

5SL-12462-01-00

$29.99

13

BOLT, FLANGE

95817-06025-00

Unavailable

14

WASHER PLATE 137241870000

90201-06072-00

$9.49

15

COLLAR

90387-06144-00

$5.60

16

GROMMET

90480-15808-00

Unavailable
