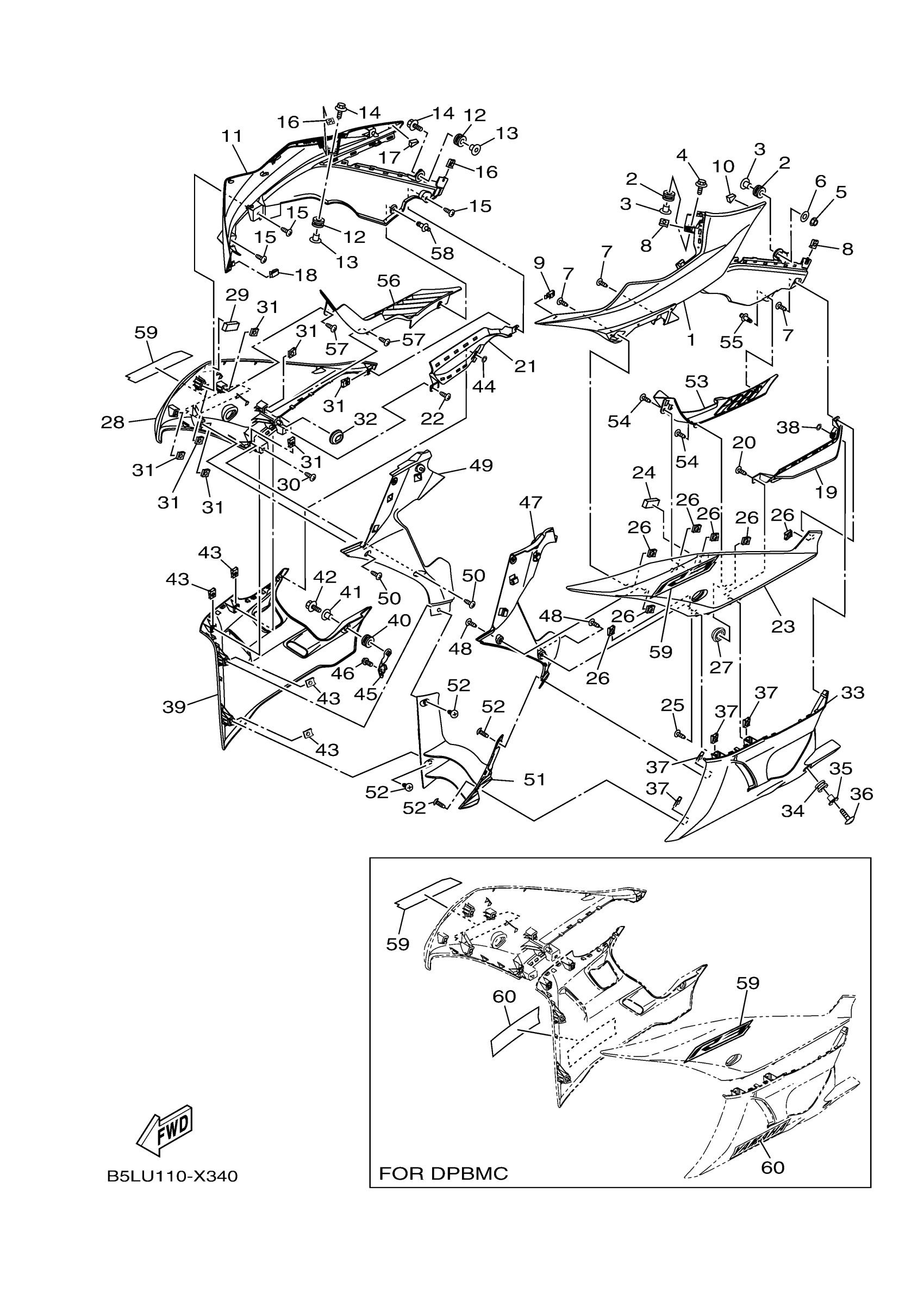

Yamaha YZFR3ANL (YZFR3 ABS) B5LU 2022 COWLING 1 Diagram
#
19
COVER 7
BS7-F117V-00-00
Unavailable
21
COVER 8
BS7-F117W-00-00
Unavailable
23
PANEL 1
BS7-F835U-00-P8
Unavailable
24
DAMPER
5YT-24665-00-00
Unavailable
26
NUT, SPRING(1YT)
90183-05042-00
Unavailable
27
GROMMET
90480-01821-00
Unavailable
28
PANEL 2
BS7-F835V-00-P8
Unavailable
29
DAMPER
5YT-24665-00-00
Unavailable
31
NUT, SPRING(1YT)
90183-05042-00
Unavailable
32
GROMMET
90480-01821-00
Unavailable
33
COVER, UNDER
BS7-F8385-00-P8
Unavailable
36
BOLT,HEX. SOCKET BUTTON
90111-06117-00
Unavailable
37
NUT, SPRING(1YT)
90183-05042-00
Unavailable
38
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
39
COVER, UNDER 2
B1X-F8395-00-P1
Unavailable
42
BOLT,HEX. SOCKET BUTTON
90111-06117-00
Unavailable
43
NUT, SPRING(1YT)
90183-05042-00
Unavailable
44
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
45
BRACKET 8
BS7-F833E-00-00
Unavailable
46
BOLT, FLANGE
95022-06012-00
Unavailable
47
PANEL, INNER 1
BS7-F836K-00-00
Unavailable
48
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
49
PANEL, INNER 2
BS7-F836L-00-00
Unavailable
50
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
51
PANEL, INNER 3
BS7-F836M-00-00
Unavailable
52
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
53
GRILL, AIR OUTLET 1
BS7-F837V-00-00
Unavailable
55
RIVET
90269-06816-00
Unavailable
56
GRILL, AIR OUTLET 2
BS7-F837W-00-00
Unavailable
58
RIVET
90269-06816-00
Unavailable
59
GRAPHIC 3
B5L-F8393-30-00
Unavailable
