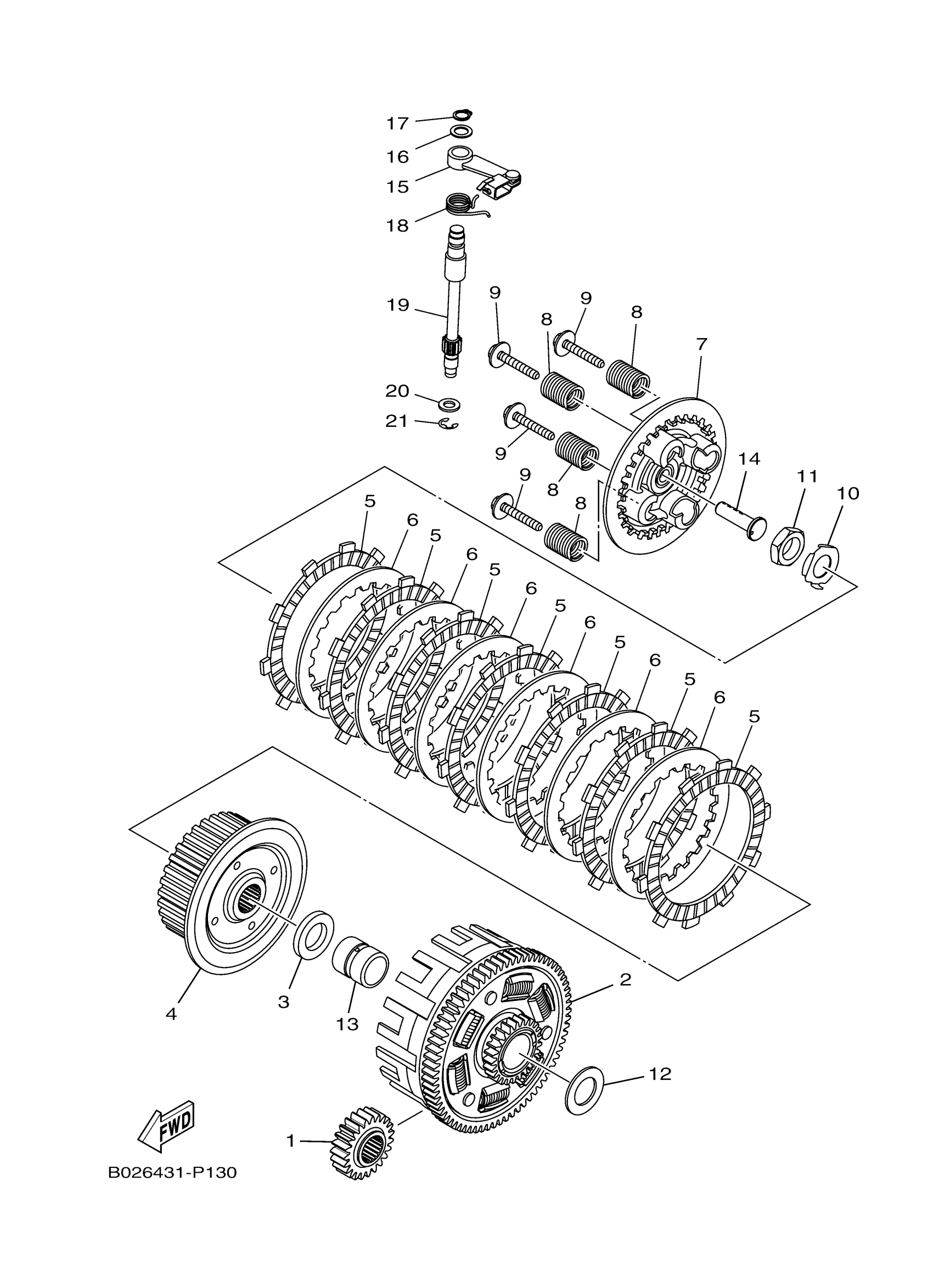

Yamaha YZFR3ANL (YZFR3 ABS) B5LU 2022 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

1WD-E6111-00-00

$112.09

2

PRIMARY DRIVEN GEAR COMP.

2MS-E6150-00-00

Unavailable

3

PLATE, THRUST 1

1WD-E6154-00-00

$10.72

4

BOSS, CLUTCH

2MS-E6371-00-00

$46.93

5

PLATE, FRICTION 2

1WD-E6331-00-00

$18.99

6

PLATE, CLUTCH 1

1WD-E6324-00-00

$7.97

7

PRESSURE PLATE ASSY

2MS-E6350-01-00

$29.18

8

SPRING, CLUTCH 1

2MS-E6333-10-00

$7.11

9

SCREW, SPRING

1WD-E6337-00-00

Unavailable

10

WASHER, LOCK

90215-18800-00

$1.80

11

NUT, HEXAGON (2H7)

90170-18221-00

$11.73

12

WASHER, PLATE

90201-22013-00

$6.46

13

SPACER 1

1WD-E6181-00-00

$17.51

14

ROD, PUSH 1

1WD-E6356-00-00

$57.79

15

PUSH LEVER ASSY

2MS-E6340-00-00

$16.99

16

WASHER, PLATE

90201-10843-00

Unavailable

17

CIRCLIP(10W)

99009-10400-00

Unavailable

18

SPRING, TORSION

90508-18136-00

Unavailable

19

AXLE, PUSH LEVER

1WD-16382-00-00

Unavailable

20

.. WASHER, PLATE

92990-08600-00

$2.41

21

CIRCLIP

99080-07600-00

$2.82
