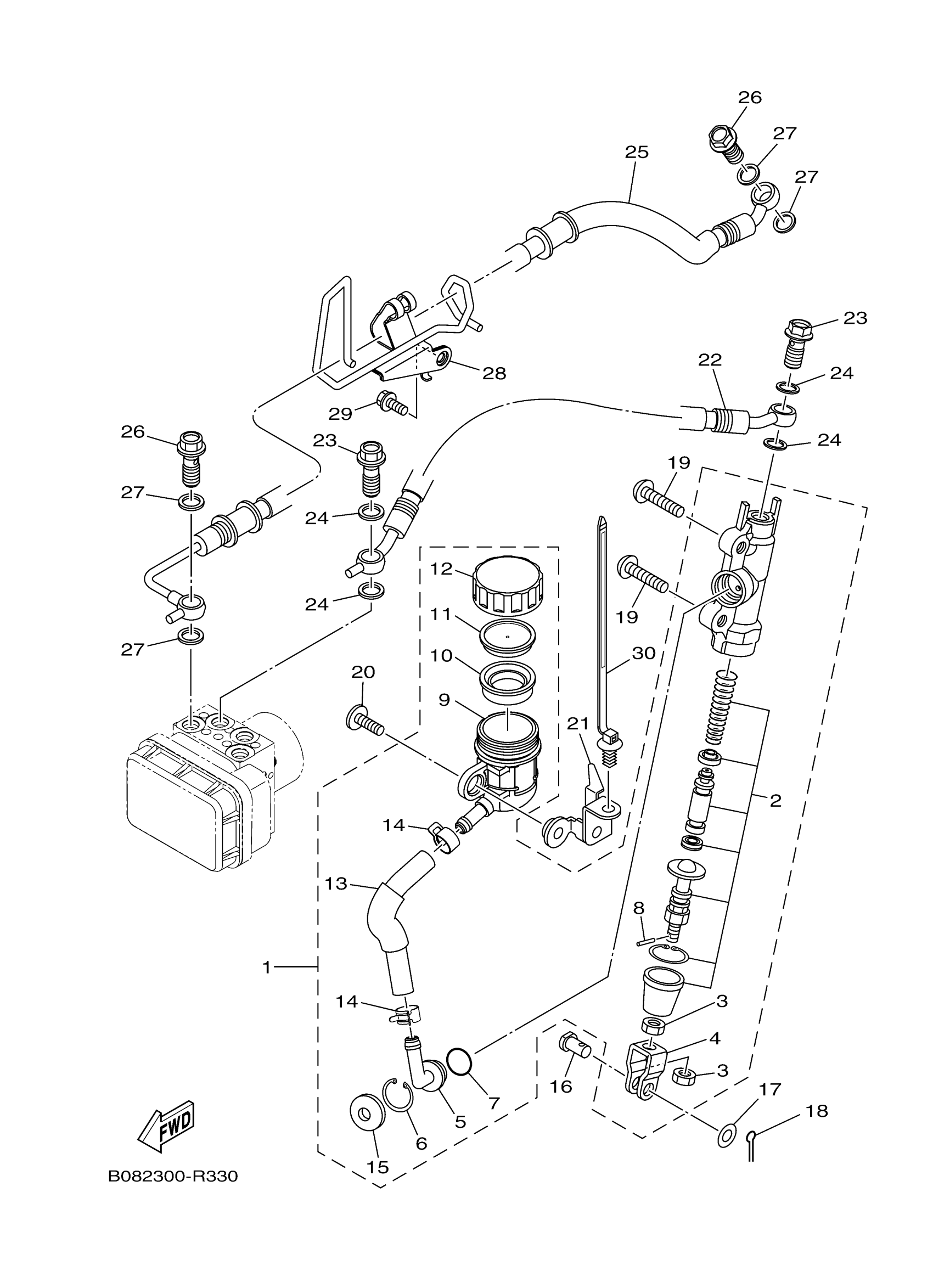

Yamaha YZFR3AMT (YZFR3 ABS) B5LL1 2021 REAR MASTER CYLINDER Diagram

#

Description
Price

1

REAR MASTER CYLINDER ASSY

1WD-F580E-00-00

Unavailable

2

CYLINDER KIT, MASTER

1WD-F5808-00-00

$28.99

3

NUT, HEXAGON SMALL

95317-08700-00

$9.49

4

JOINT (50C1)

50C-F7222-00-00

$1.87

5

. JOINT

50C-F582A-50-00

Unavailable

6

CIRCLIP (50C1)

50C-F5866-00-00

Unavailable

7

O-RING (22U)

93210-15566-00

$7.49

8

PIN, BRAKE ROD

3KW-27234-00-00

$7.99

9

TANK, RESERVOIR

50C-F5894-11-00

$15.99

10

DIAPHRAGM, RESERVOIR

2VN-F5854-00-00

$4.63

11

BUSH,DIAPHRAGM (50C1)

50C-F5855-00-00

$3.24

12

CAP, RESERVOIR

1WD-F5852-50-00

$3.64

13

. HOSE, RESERVOIR

1WD-F5895-50-00

Unavailable

14

CLIP(3FV)

90467-12085-00

$10.49

15

. COVER, DUST

50C-F589A-00-00

Unavailable

16

PIN, CLEVIS(2YK)

90240-08124-00

Unavailable

17

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

18

PIN, COTTER (648)

91490-20015-00

Unavailable

19

BOLT, BUTTON HEAD

92012-08030-00

Unavailable

20

BOLT,HEX. SOCKET BUTTON

90111-06121-00

Unavailable

21

HOLDER, RESERVE TANK

B04-F582E-00-00

Unavailable

22

HOSE, BRAKE 5

2WD-F581K-00-00

Unavailable

23

BOLT, UNION(3GM)

90401-10159-00

Unavailable

24

WASHER, PLATE(481)

90201-10118-00

Unavailable

25

HOSE, BRAKE 6

2WD-F582J-00-00

Unavailable

26

BOLT, UNION(3GM)

90401-10159-00

Unavailable

27

WASHER, PLATE(481)

90201-10118-00

Unavailable

28

HOLDER, BRAKE HOSE

2WD-F5887-00-00

Unavailable

29

BOLT, FLANGE DEEP RECESS

95D37-06014-00

Unavailable

30

CLAMP

90464-30009-00

Unavailable
