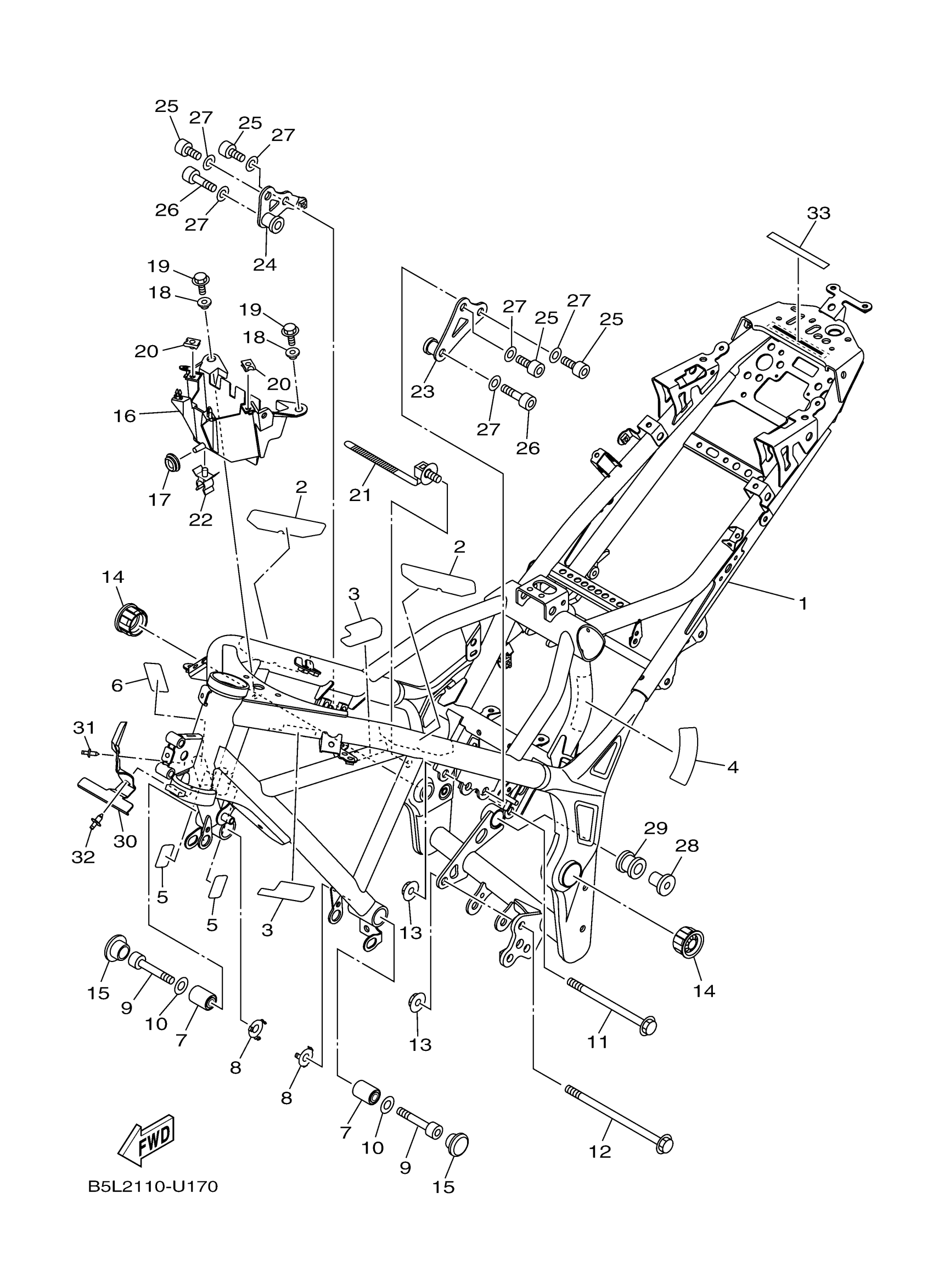

Yamaha YZFR3AMT (YZFR3 ABS) B5LL1 2021 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1WD-F1110-13-00

$542.82

2

DAMPER 2

1WD-F112C-00-00

$3.14

3

PROTECTOR

1WD-F117G-00-00

$3.83

4

PROTECTOR

1WD-F1652-00-00

$3.31

5

PROTECTOR

1WD-F193A-00-00

$2.00

6

SEAL

5D9-F414G-00-00

$1.60

7

DAMPER

90388-10816-00

$21.42

8

PLATE 1

1WD-F191B-00-00

Unavailable

9

BOLT, SOCKET

91317-10060-00

$6.12

10

958-69527-00 WASHER, PLAIN

92990-10200-00

$2.67

11

BOLT, FLANGE

90105-10889-00

$4.34

12

BOLT, FLANGE

90105-10891-00

$5.03

13

NUT (1S72,5C81)

90179-10805-00

Unavailable

14

COVER

1WD-F135F-00-00

$2.30

15

PLUG

90338-23801-00

$1.03

16

BOX

1WD-F1171-00-00

$6.11

17

GROMMET

90480-13014-00

Unavailable

18

COLLAR

90387-07819-00

Unavailable

19

BOLT, FLANGE

95022-06014-00

Unavailable

20

. NUT, SPRING

90183-06818-00

$0.70

21

CLAMP

90464-30009-00

$3.07

22

CLAMP

90464-12015-00

Unavailable

23

STAY 1

1WD-F122A-00-00

Unavailable

24

STAY 2

1WD-F122B-00-00

Unavailable

25

BOLT, SOCKET

91317-10020-00

Unavailable

26

BOLT, SOCKET

91317-10045-00

Unavailable

27

WASHER(6TA)

92907-10600-00

Unavailable

28

COLLAR

90387-08812-00

Unavailable

29

DAMPER, FOOTREST 2

4XV-27424-00-00

Unavailable

30

BRACKET 5

BS7-F612N-00-00

Unavailable

31

RIVET

90269-05008-00

Unavailable

32

RIVET

90269-07007-00

Unavailable

33

SEAL 2

2DS-F414E-00-00

Unavailable
