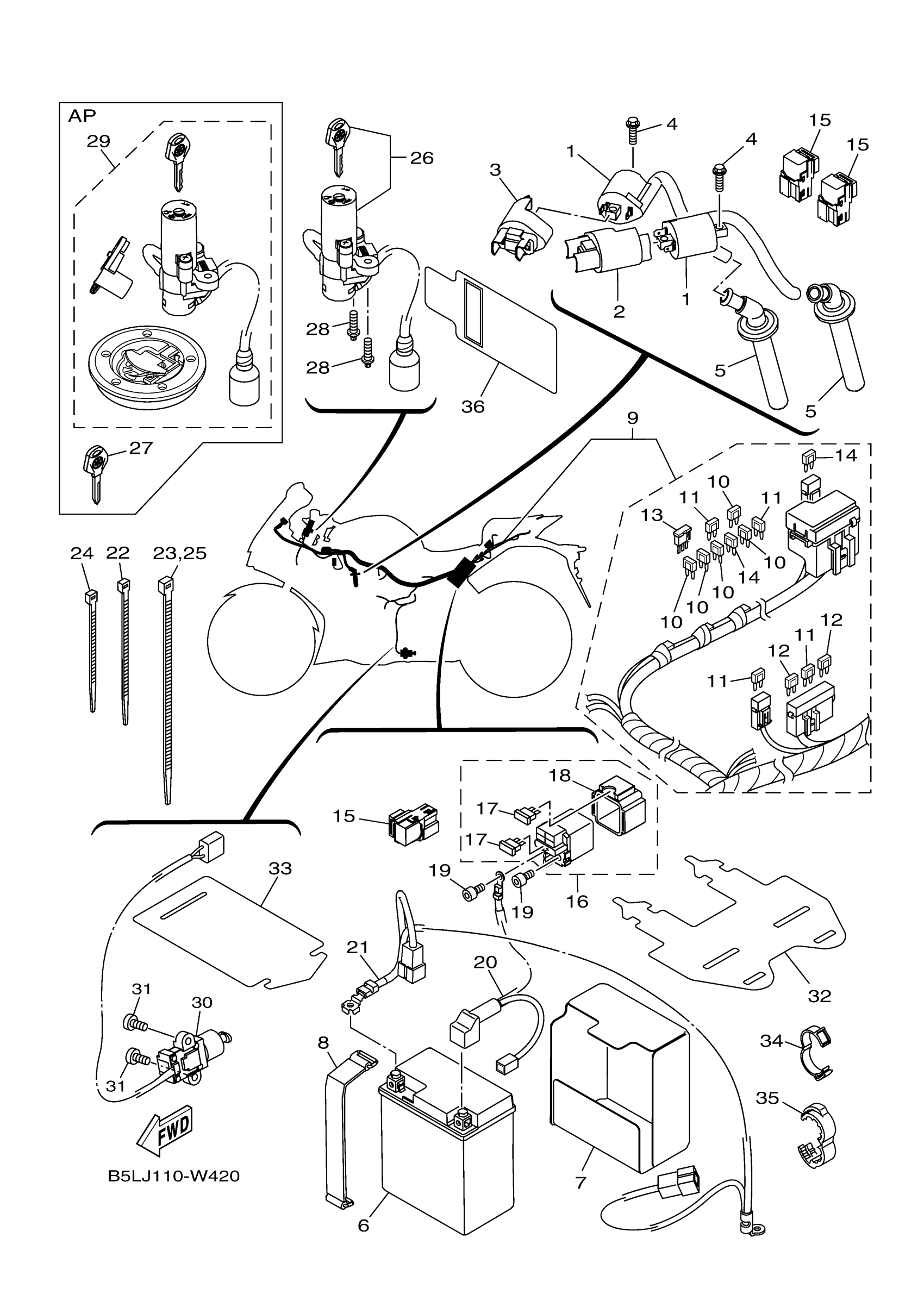

Yamaha YZFR3AMT (YZFR3 ABS) B5LL1 2021 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

1WD-H2310-02-00

$18.49

2

COVER, IGNITION COIL

B04-H2314-00-00

$10.49

3

COVER, IGNITION COIL

B04-H2314-10-00

$10.49

4

BOLT, FLANGE

95022-06020-00

$3.62

5

PLUG CAP ASSY

1WD-H2370-00-00

Unavailable

6

BATTERY (GSGTZ8V) "FA"

GTZ-8V000-00-00

Unavailable

7

PAD, BATTERY

1WD-H2121-00-00

$10.49

8

BAND, BATTERY

1WD-H2131-00-00

$8.49

9

WIRE HARNESS ASSY

B5L-H2590-12-00

Unavailable

10

. FUSE (75A BL)

1WD-H2151-20-00

Unavailable

11

FUSE (15A-BL)

1WD-H2151-10-00

$9.49

12

FUSE

1WD-H2151-30-00

$2.39

13

DIODE ASSY

4B4-H1980-00-00

$30.99

14

FUSE (2A)

1WD-H2151-80-00

Unavailable

15

RELAY ASSY

1WD-H1950-00-00

$43.99

16

STARTER RELAY ASSY

1WD-H1940-00-00

Unavailable

17

FUSE

1WD-H2151-01-00

Unavailable

18

BAND

1WD-H2155-00-00

Unavailable

19

BOLT

91312-05008-00

Unavailable

20

WIRE, PLUS LEAD

2WD-H2115-00-00

Unavailable

21

WIRE, MINUS LEAD (B085)

2WD-H2116-01-00

Unavailable

22

BAND

1UA-82591-00-00

Unavailable

23

CLAMP

90464-70800-00

Unavailable

24

CLAMP (5MX1)

90464-22800-00

Unavailable

25

CLAMP

90464-70800-00

Unavailable

26

MAIN SWITCH STEERING LOCK

BS7-H2501-00-00

Unavailable

27

BLANK KEY

1WD-H2511-09-00

Unavailable

28

BOLT

90109-06282-00

Unavailable

29

MAIN SW. STRG. LOCK SUB ASSY

BS7-XH250-00-00

Unavailable

30

SWITCH, SIDE STAND

1WD-H2566-02-00

Unavailable

31

BOLT, SOCKET

91317-05018-00

Unavailable

32

BAND

1WD-F179E-00-00

Unavailable

33

BAND

1WD-H2591-00-00

Unavailable

34

CLAMP

90464-26001-00

Unavailable

35

CLAMP

90464-08009-00

Unavailable

36

PROTECTER, WIRE HA

2D1-82589-02-00

Unavailable
