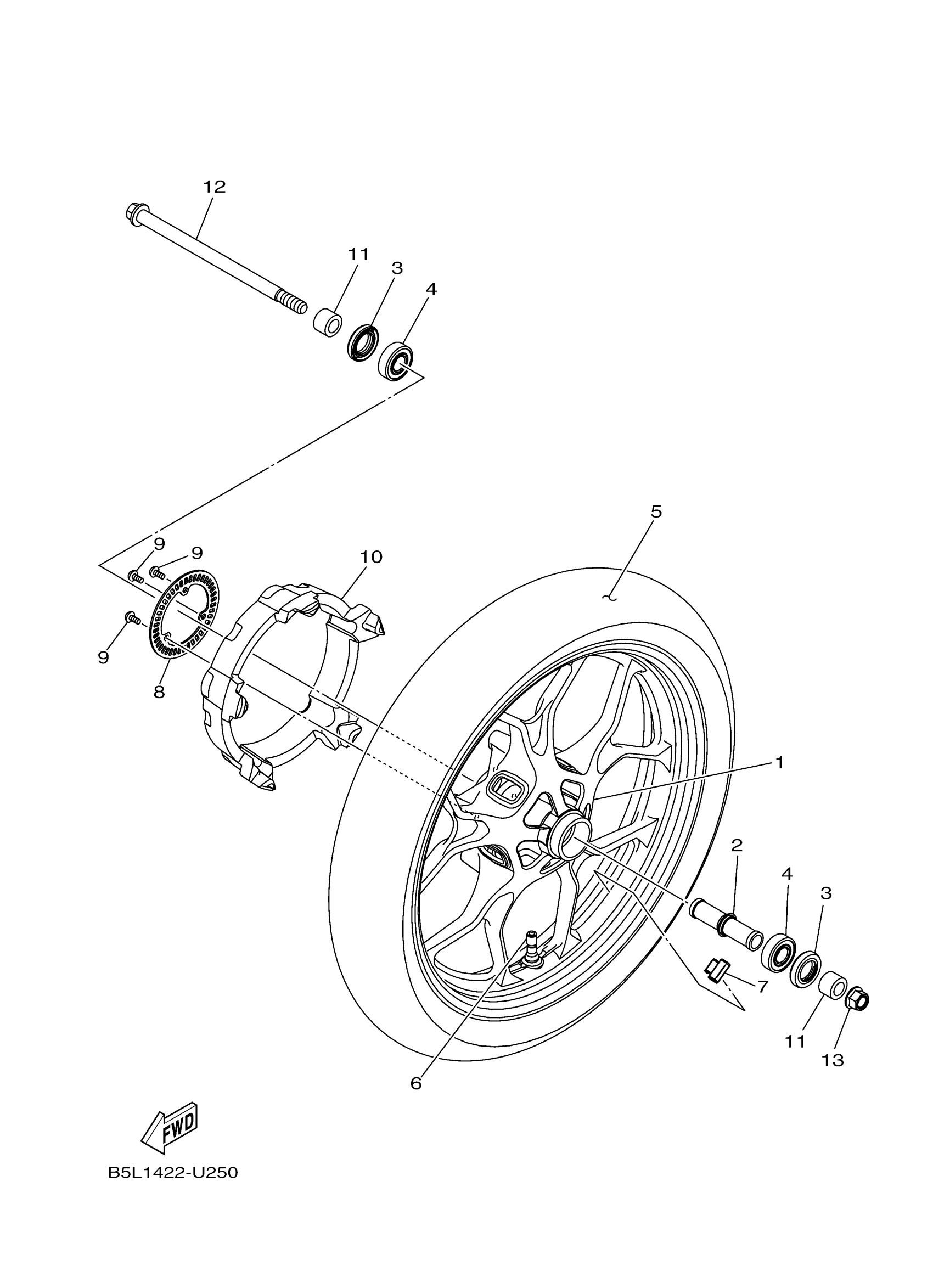

Yamaha YZFR3AMME (YZF-R3 MONSTER) B5LJ 2021 FRONT WHEEL Diagram

#

Description
Price

1

CAST WHEEL, FRONT

BS7-F5168-10-98

$308.71

2

COLLAR ASSY.

1WD-F510C-01-00

$11.86

3

SEAL,OIL

93106-26005-00

$6.26

4

BEARING

93306-302X4-00

$46.99

5

TIRE (110/70R17 M/C 54H)

94111-17812-00

$227.82

6

VALVE, RIM (TR413)939000002200

93900-00828-00

$3.67

7

BALANCER, WHEEL

5MT-25398-00-00

$14.51

7

BALANCER, WHEEL

5MT-25398-10-00

$14.35

7

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

8

ROTOR, SENSOR

2DP-F517G-00-00

$9.16

9

SCREW

90149-05030-00

$1.99

10

RING, WHEEL 1

B5L-F514A-00-00

$21.29

11

COLLAR, SPROCKET A

1PA-F5386-00-00

$18.52

12

AXLE, WHEEL

1WD-25181-00-00

$35.56

13

NUT, U FLANGE

95602-14200-00

$9.25
