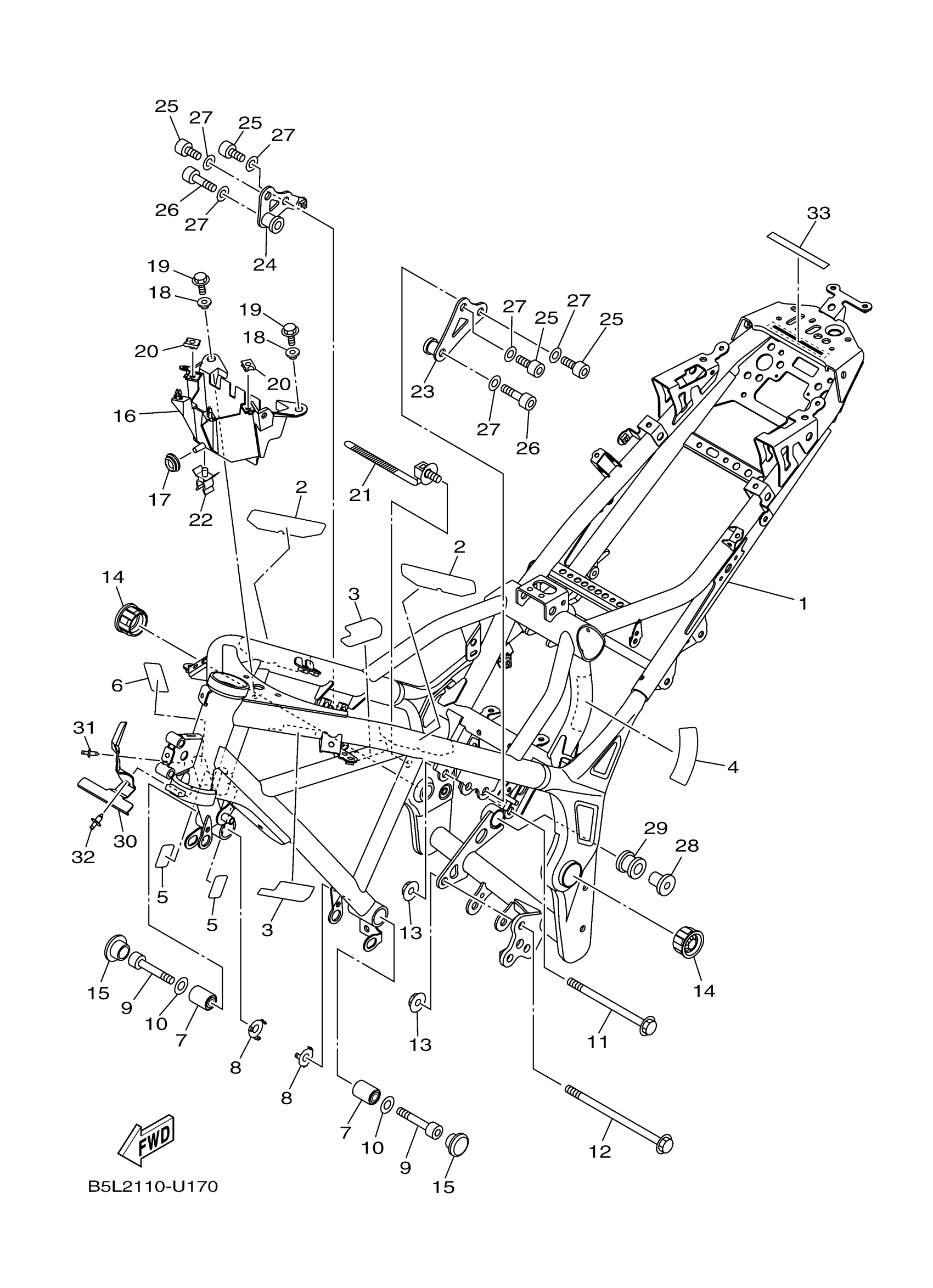

Yamaha YZFR3AMME (YZF-R3 MONSTER) B5LJ 2021 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1WD-F1110-13-00

Unavailable

2

DAMPER 2

1WD-F112C-00-00

$2.18

3

PROTECTOR

1WD-F117G-00-00

$2.81

4

PROTECTOR

1WD-F1652-00-00

$14.99

5

PROTECTOR

1WD-F193A-00-00

$1.59

6

SEAL

5D9-F414G-00-00

$1.07

7

DAMPER

90388-10816-00

$23.99

8

PLATE 1

1WD-F191B-00-00

Unavailable

9

BOLT, SOCKET

91317-10060-00

$8.49

10

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

11

BOLT, FLANGE

90105-10889-00

$3.71

12

BOLT, FLANGE

90105-10891-00

$4.29

13

NUT (1S72,5C81)

90179-10805-00

Unavailable

14

COVER

1WD-F135F-00-00

$3.23

15

PLUG

90338-23801-00

$1.01

16

BOX

1WD-F1171-00-00

Unavailable

17

GROMMET

90480-13014-00

Unavailable

18

COLLAR

90387-07819-00

Unavailable

19

BOLT, FLANGE

95022-06014-00

Unavailable

20

. NUT, SPRING

90183-06818-00

Unavailable

21

CLAMP

90464-30009-00

Unavailable

22

CLAMP

90464-12015-00

Unavailable

23

STAY 1

1WD-F122A-00-00

Unavailable

24

STAY 2

1WD-F122B-00-00

Unavailable

25

BOLT, SOCKET

91317-10020-00

Unavailable

26

BOLT, SOCKET

91317-10045-00

Unavailable

27

WASHER(6TA)

92907-10600-00

Unavailable

28

COLLAR

90387-08812-00

Unavailable

29

DAMPER, FOOTREST 2

4XV-27424-00-00

Unavailable

30

BRACKET 5

BS7-F612N-00-00

Unavailable

31

RIVET

90269-05008-00

Unavailable

32

RIVET

90269-07007-00

Unavailable

33

SEAL 2

2DS-F414E-00-00

Unavailable
