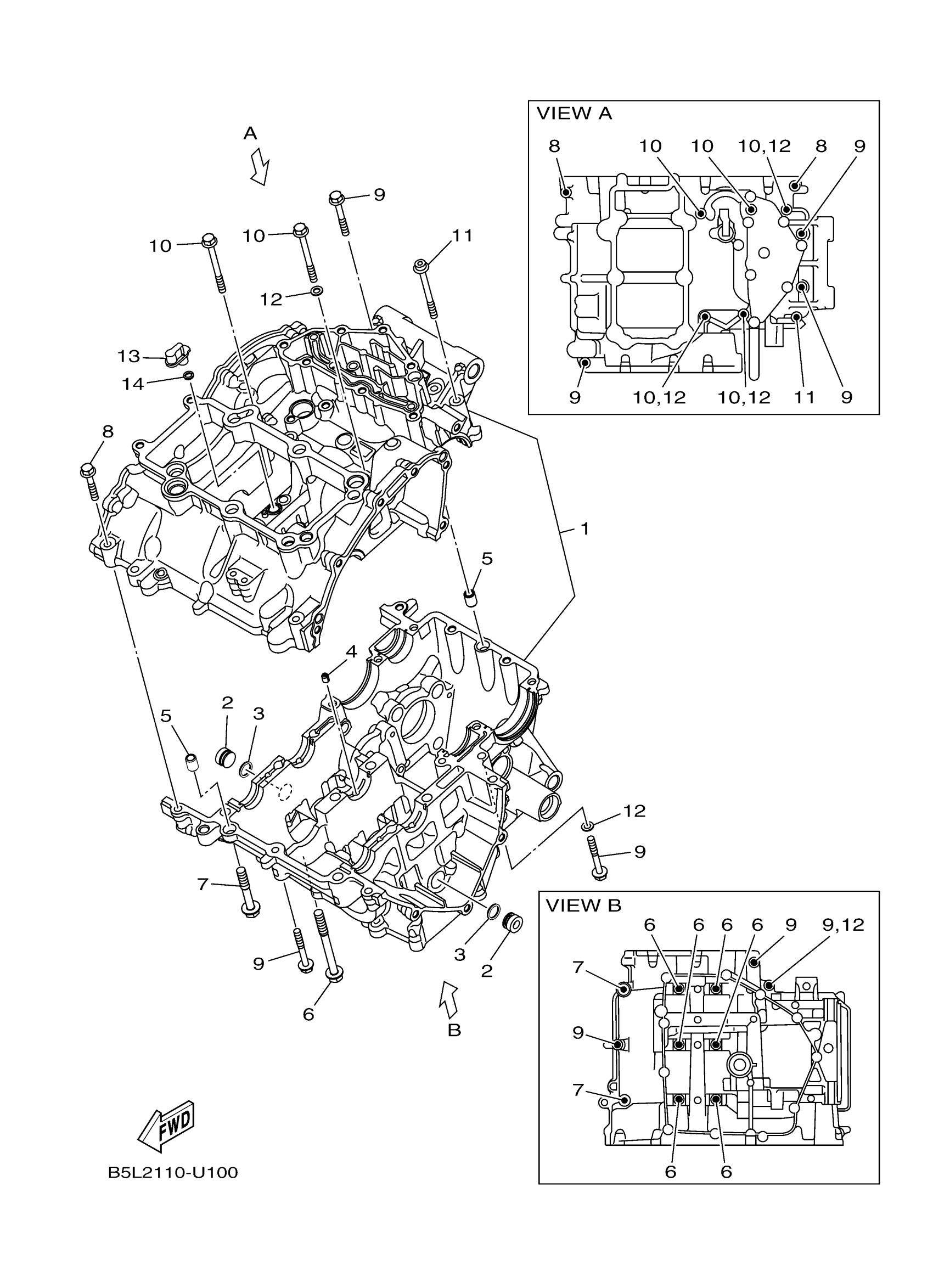

Yamaha YZFR3AMME (YZF-R3 MONSTER) B5LJ 2021 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY (2MS1)

1WD-E5150-20-00

$338.10

2

PLUG

90338-16262-00

$11.02

3

O-RING

93210-12803-00

Unavailable

4

NOZZLE 2

1WD-E5148-00-00

$2.11

5

PIN, DOWEL(3VD)

99530-10114-00

$2.13

6

BOLT, FLANGE

90105-088F7-00

$24.72

7

BOLT, FLANGE

90105-088G0-00

$2.16

8

95812-06035

95812-06035-00

$5.27

9

BOLT, FLANGE

95817-06045-00

$5.76

10

BOLT, FLANGE

95812-06065-00

Unavailable

11

BOLT, HEXAGON SOCKET HEAD

90110-06882-00

$28.20

12

GASKET 256113960000

90430-06014-00

Unavailable

13

NOZZLE 3

1WD-E5155-00-00

$7.89

14

O-RING (26H)

93210-06632-00

$6.22
