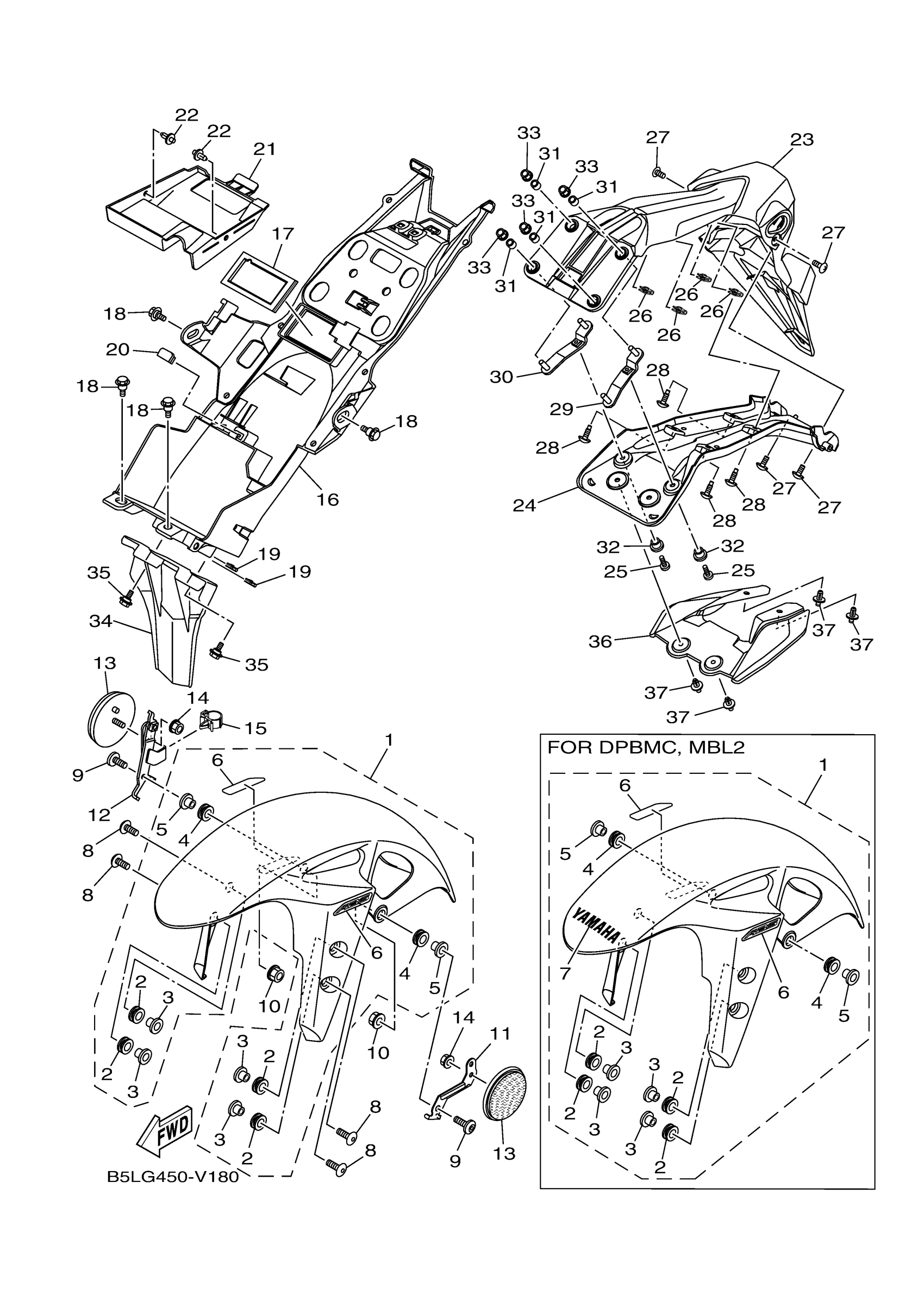

Yamaha YZFR3ALS (YZFR3 ABS) B5LE1 2020 FENDER Diagram
#
Description
Price
16
FENDER, REAR
1WD-F1611-02-00
Unavailable
17
SEAL
1WD-F1669-00-00
Unavailable
18
BOLT(3KJ)
90109-063F1-00
Unavailable
19
NUT, SPRING
90183-050A6-00
Unavailable
20
SEAL, 2
1WD-F16A2-00-00
Unavailable
21
COVER, REAR FENDER
1WD-F163E-01-00
Unavailable
22
RIVET
90269-06816-00
Unavailable
23
GUARD, MUD
B1X-F1629-00-00
Unavailable
24
BRACKET, FENDER
1WD-F1617-01-00
Unavailable
25
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
26
NUT, SPRING
90183-050A7-00
Unavailable
27
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
28
BOLT
90111-05018-00
Unavailable
29
BRACKET, REAR STAY
1WD-F1688-00-00
Unavailable
30
BRACKET, REAR STAY 2
1WD-F1689-00-00
Unavailable
31
COLLAR (8H6)
90387-07573-00
Unavailable
32
COLLAR
90387-068L9-00
Unavailable
33
NUT, U FLANGE
95604-06200-00
Unavailable
34
FLAP
1WD-F1621-01-00
Unavailable
35
BOLT
90109-05003-00
Unavailable
36
COVER, REAR FENDER 1
1WD-F163A-00-00
Unavailable
37
RIVET
90269-06816-00
Unavailable
