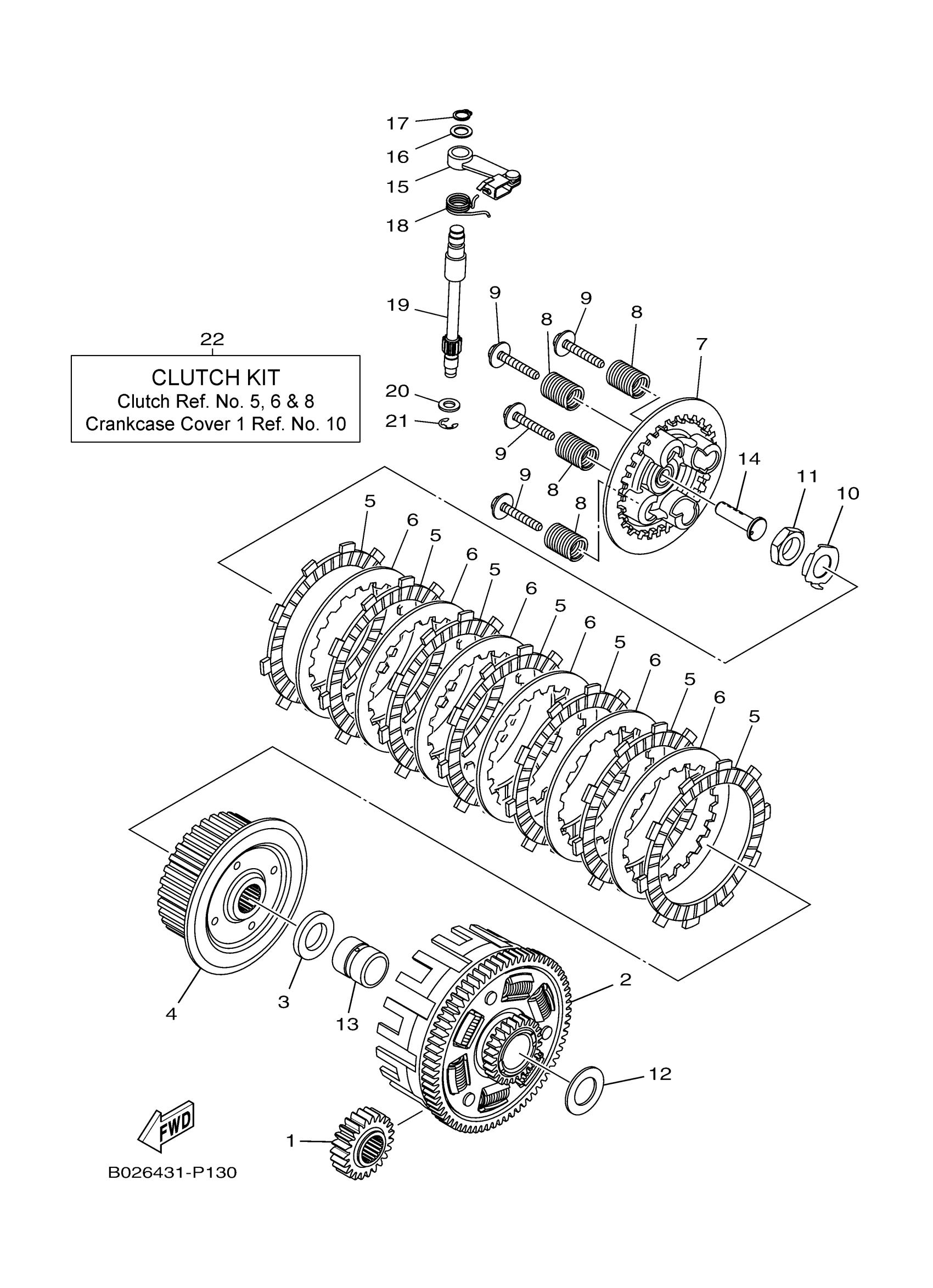

Yamaha YZFR3ALS (YZFR3 ABS) B5LE1 2020 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

1WD-E6111-00-00

Unavailable

2

PRIMARY DRIVEN GEAR COMP.

2MS-E6150-00-00

Unavailable

3

PLATE, THRUST 1

1WD-E6154-00-00

$10.49

4

BOSS, CLUTCH

2MS-E6371-00-00

$62.99

5

PLATE, FRICTION 2

1WD-E6331-00-00

$22.99

6

PLATE, CLUTCH 1

1WD-E6324-00-00

Unavailable

7

PRESSURE PLATE ASSY

2MS-E6350-01-00

$28.99

8

SPRING, CLUTCH 1

2MS-E6333-10-00

$8.49

9

SCREW, SPRING

1WD-E6337-00-00

Unavailable

10

WASHER, LOCK

90215-18800-00

$1.81

11

NUT, HEXAGON (2H7)

90170-18221-00

$14.99

12

WASHER, PLATE

90201-22013-00

$8.49

13

SPACER 1

1WD-E6181-00-00

$17.99

14

ROD, PUSH 1

1WD-E6356-00-00

$57.99

15

PUSH LEVER ASSY

2MS-E6340-00-00

$16.99

16

WASHER, PLATE

90201-10843-00

Unavailable

17

CIRCLIP(10W)

99009-10400-00

Unavailable

18

SPRING, TORSION

90508-18136-00

Unavailable

19

AXLE, PUSH LEVER

1WD-16382-00-00

Unavailable

20

.. WASHER, PLATE

92990-08600-00

Unavailable

21

CIRCLIP

99080-07600-00

Unavailable

22

CLUTCH PLATE KIT

2MS-W001G-00-00

Unavailable
