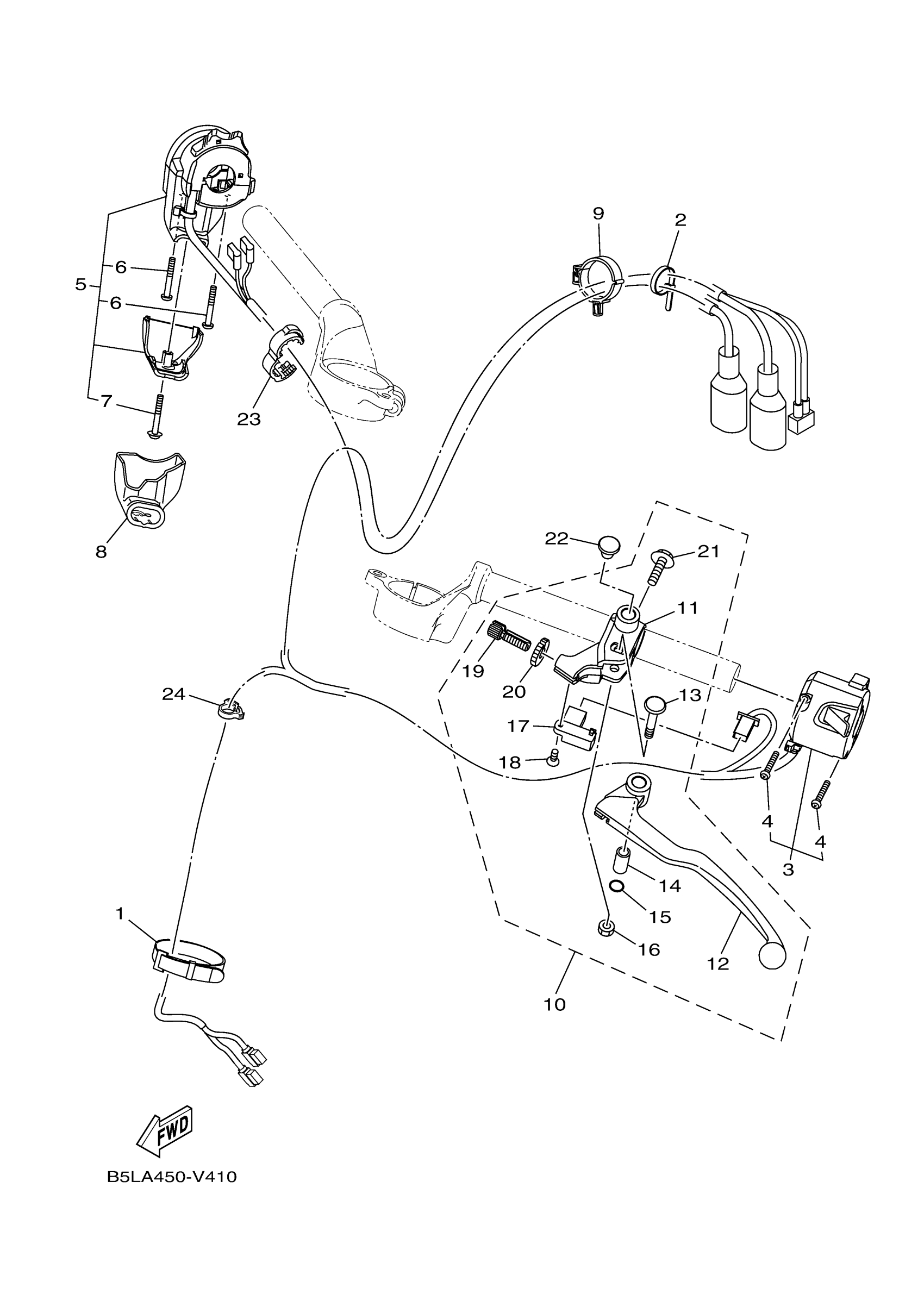

Yamaha YZFR3ALME (YZFR3 ABS) B5LC 2020 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

BAND, SWITCH CORD

25G-83936-01-00

$3.85

2

CLAMP

90464-36005-00

$0.91

3

SWITCH, HANDLE 4

BS7-H3972-01-00

Unavailable

4

SCREW, PAN HEAD

98517-04025-00

$2.75

5

SWITCH, HANDLE 2

BS7-H3975-02-00

Unavailable

6

SCREW, PAN

98507-04030-00

$1.64

7

. SCREW, WITH WASHER

97607-04230-00

$2.43

8

COVER

BS7-F6477-00-00

Unavailable

9

CLAMP

90464-30001-00

$6.12

10

LEVER HOLDER ASSY (LEFT)

1WD-H2910-00-00

$80.76

11

HOLDER, LEVER 1

1WD-H2911-00-00

$14.44

12

LEVER 1

1WD-H3912-00-00

$10.36

13

BOLT, LEVER

31A-83945-00-00

$4.37

14

COLLAR, LEVER 1

31A-83913-00-00

$18.17

15

O-RING (260)

93210-10118-00

$5.47

16

NUT, SELF-LOCKING

95617-06100-00

Unavailable

17

SWITCH

5BP-H2917-00-00

Unavailable

18

SCREW, FLAT

98707-03008-00

Unavailable

19

BOLT

90123-08002-00

Unavailable

20

NUT

90179-08030-00

Unavailable

21

BOLT, WITH WASHER

97507-06525-00

Unavailable

22

PLUG (341-26329-00)

90338-09012-00

Unavailable

23

CLAMP

90464-13227-00

Unavailable

24

CLAMP (5MX1)

90464-22800-00

Unavailable
