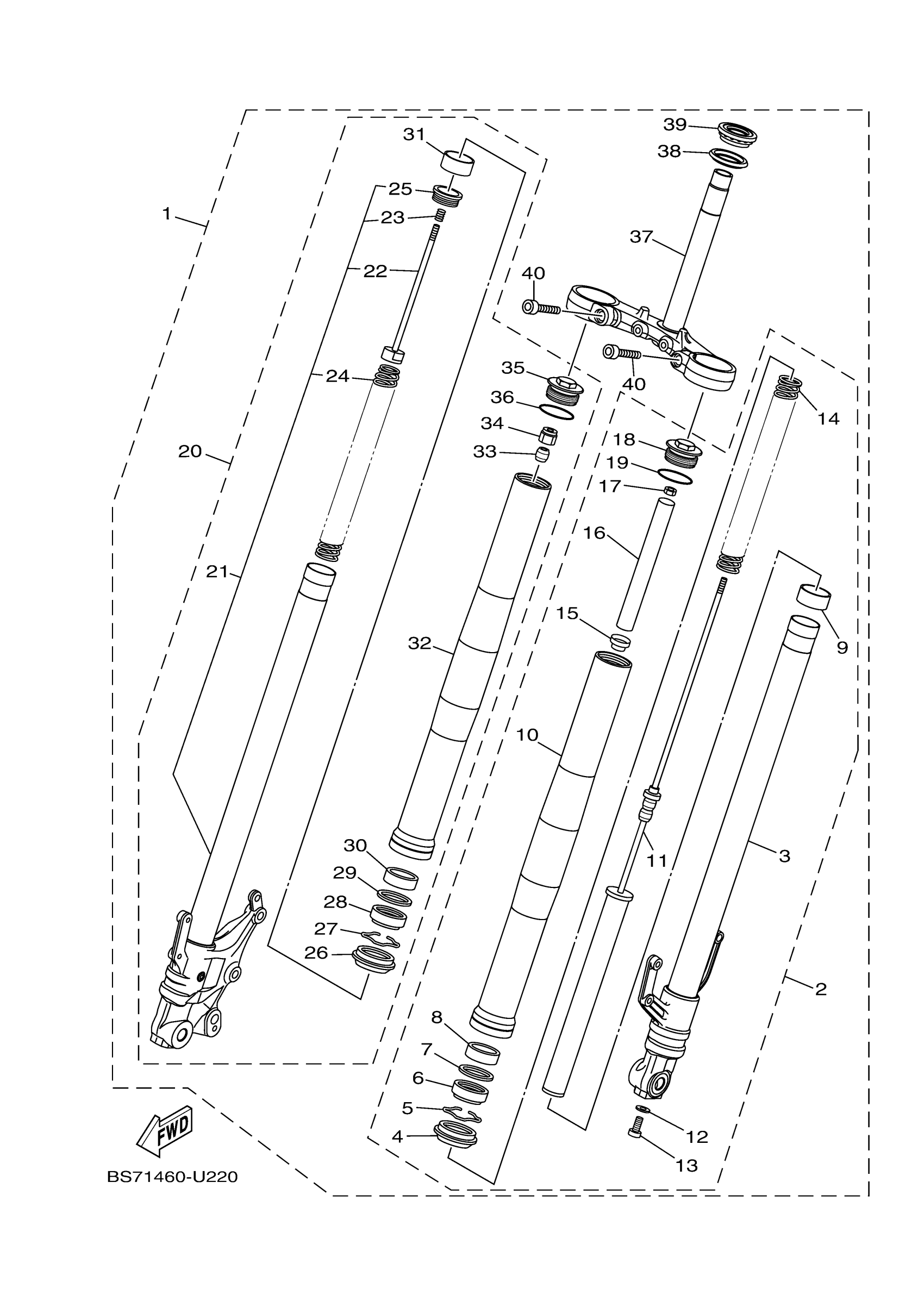

Yamaha YZFR3ALME (YZFR3 ABS) B5LC 2020 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY

B5L-F3100-00-00

$927.12

2

FRONT FORK ASSY (L.H)

BS7-F3102-00-00

$400.30

3

INNER TUBE COMP.1

BS7-F3110-00-00

$163.60

4

SEAL, DUST

B48-F3144-00-00

$23.55

5

RING, SNAP

3R4-23153-00-00

$7.21

6

OIL SEAL (BK61)

BK6-F3145-00-00

$6.83

7

WASHER, SPRING UPPER

31A-23149-31-00

$7.24

8

METAL, SLIDE

31A-23125-31-00

$29.13

9

PISTON, FRONT FORK (BK61)

BK6-F3171-00-00

$7.85

10

TUBE, OUTER (L.H)

BS7-F3126-10-00

$179.96

11

CYLINDER COMP., FRONT FORK

BS7-F3170-00-00

$173.85

12

GASKET

2BU-F3158-00-00

$3.60

13

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

14

SPRING, FRONT FORK

BS7-F3141-00-00

Unavailable

15

GUIDE, SPRING (BK61)

BK6-F3117-00-00

$4.72

16

SPACER

BS7-F3118-00-00

Unavailable

17

NUT (BK61)

BK6-F3357-00-00

Unavailable

18

BOLT, CAP

BS7-F3111-00-00

Unavailable

19

O-RING

4V4-23188-L1-00

Unavailable

20

FRONT FORK ASSY (R.H)

B5L-F3103-00-00

Unavailable

21

INNER TUBE COMP.2

B5L-F3120-00-00

Unavailable

22

ROD COMP. (BK61)

BK6-F330G-00-00

Unavailable

23

SPRING, SHOCK ABSORBER 2 (BK61

3AH-22222-00-00

Unavailable

24

SPRING, FRONT FORK

BS7-F3141-00-00

Unavailable

25

... CAP

BK6-F319U-00-00

$11.57

26

SEAL, DUST

B48-F3144-00-00

$23.55

27

RING, SNAP

3R4-23153-00-00

$7.21

28

OIL SEAL (BK61)

BK6-F3145-00-00

$6.83

29

WASHER, SPRING UPPER

31A-23149-31-00

$7.24

30

METAL, SLIDE

31A-23125-31-00

$29.13

31

PISTON, FRONT FORK (BK61)

BK6-F3171-00-00

$7.85

32

TUBE, OUTER (L.H)

BS7-F3126-10-00

$179.96

33

BUMP, STOP (BK61)

BK6-F332K-00-00

Unavailable

34

NUT, SPECIAL (BK61)

BK6-F3393-00-00

Unavailable

35

BOLT, CAP

BS7-F3111-00-00

Unavailable

36

O-RING

4V4-23188-L1-00

Unavailable

37

UNDER BRACKET COMP.

BS7-F3340-00-00

Unavailable

38

SEAL, STEERING

3FV-23462-00-00

Unavailable

39

BEARING(3FV)

93399-99932-00

Unavailable

40

BOLT

91312-10040-00

Unavailable
