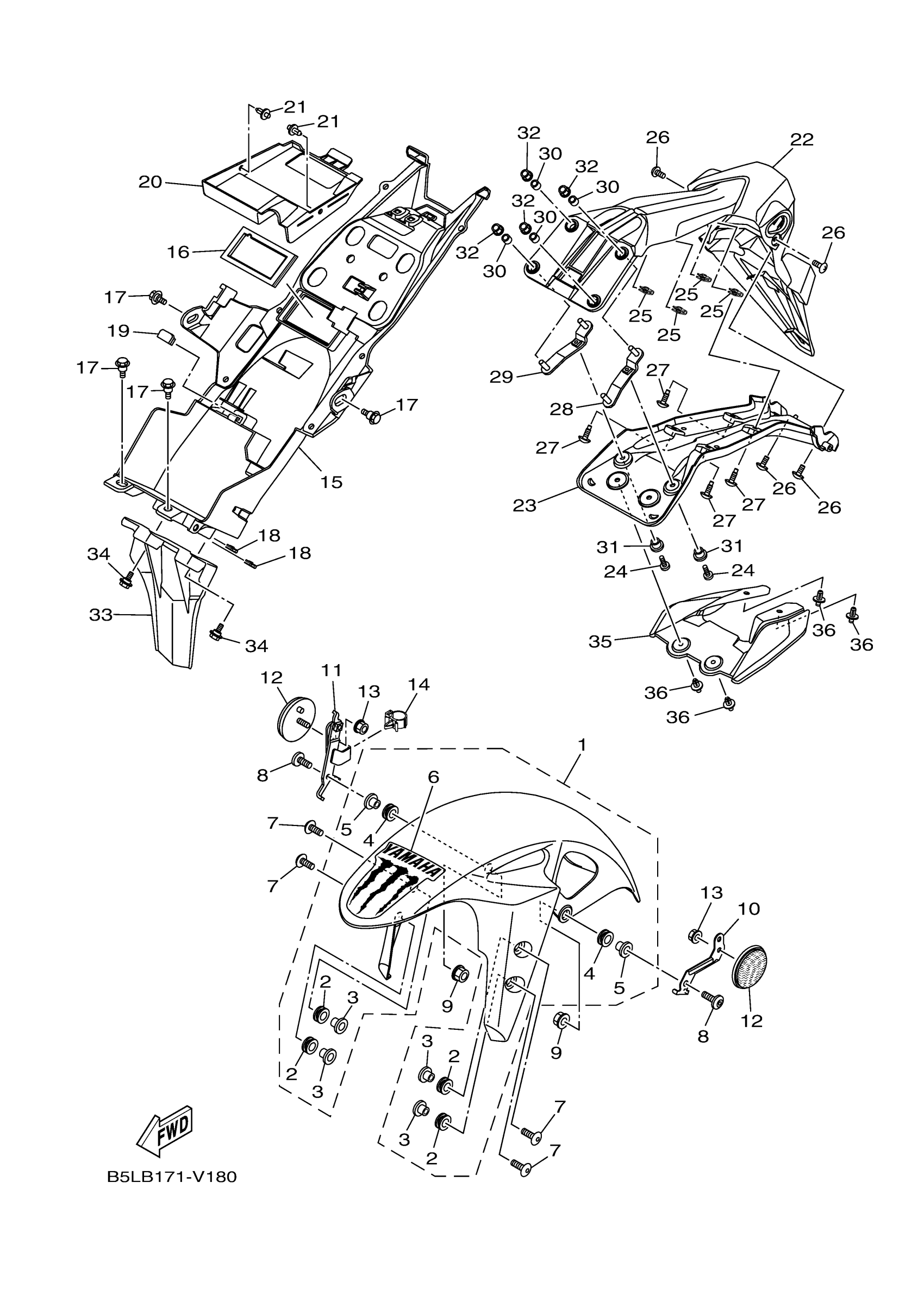

Yamaha YZFR3ALME (YZFR3 ABS) B5LC 2020 FENDER Diagram
#
Description
Price
16
SEAL
1WD-F1669-00-00
Unavailable
17
BOLT(3KJ)
90109-063F1-00
Unavailable
18
NUT, SPRING
90183-050A6-00
Unavailable
19
SEAL, 2
1WD-F16A2-00-00
Unavailable
20
COVER, REAR FENDER
1WD-F163E-01-00
Unavailable
21
RIVET
90269-06816-00
Unavailable
22
GUARD, MUD
B1X-F1629-00-00
Unavailable
23
BRACKET, FENDER
1WD-F1617-01-00
Unavailable
24
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
25
NUT, SPRING
90183-050A7-00
Unavailable
26
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
27
BOLT
90111-05018-00
Unavailable
28
BRACKET, REAR STAY
1WD-F1688-00-00
Unavailable
29
BRACKET, REAR STAY 2
1WD-F1689-00-00
Unavailable
30
COLLAR (8H6)
90387-07573-00
Unavailable
31
COLLAR
90387-068L9-00
Unavailable
32
NUT, U FLANGE
95604-06200-00
Unavailable
33
FLAP
1WD-F1621-01-00
Unavailable
34
BOLT
90109-05003-00
Unavailable
35
COVER, REAR FENDER 1
1WD-F163A-00-00
Unavailable
36
RIVET
90269-06816-00
Unavailable
