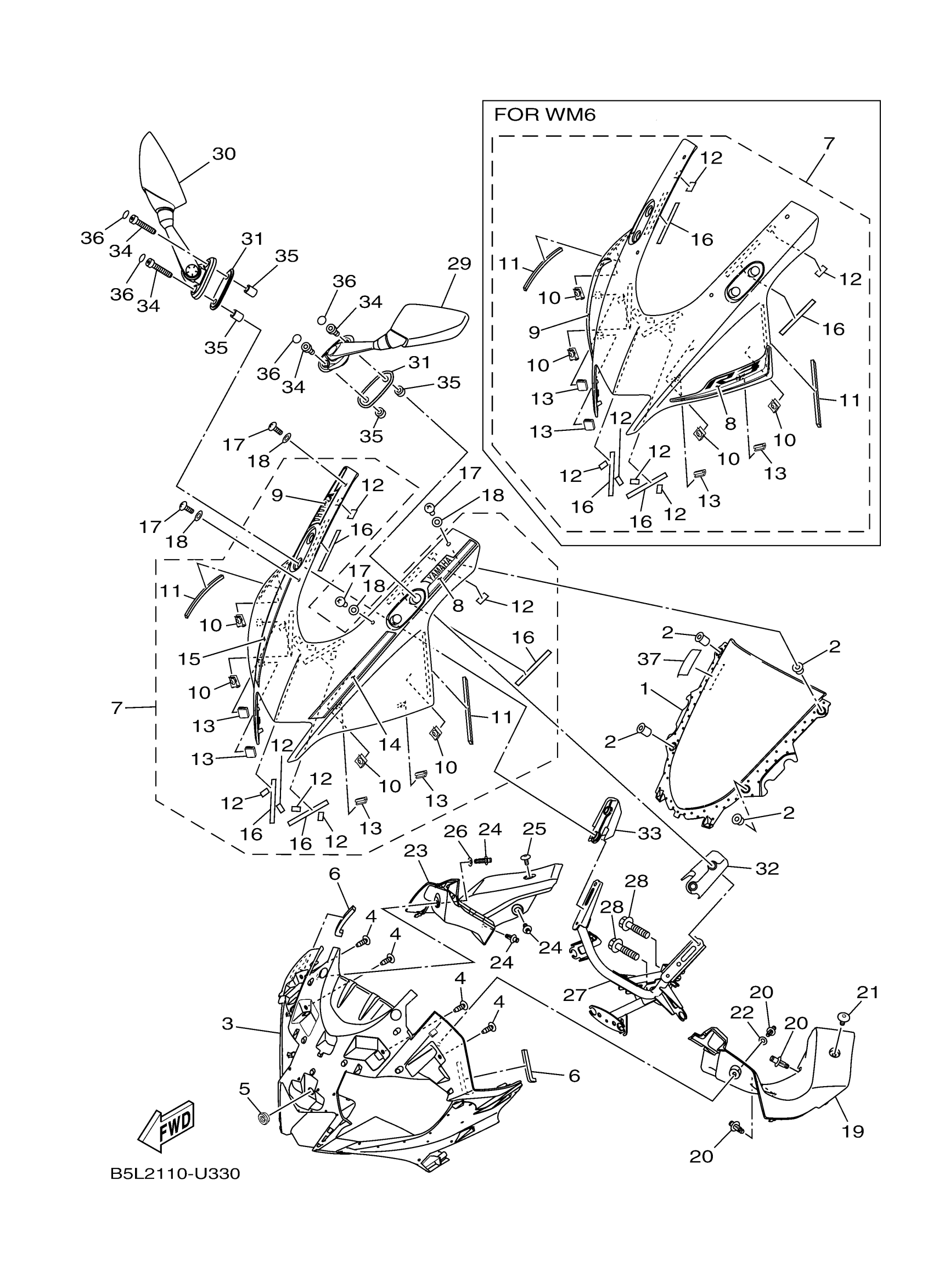

Yamaha YZFR3AKW (YZFR3 ABS) B5L20 2019 WINDSHIELD Diagram

WINDSHIELD

BS7-F8381-00-00

$45.99

NUT(1KT)

90179-05523-00

$8.49

BODY, FRONT UPPER 1

BS7-F835G-00-00

$84.99

SCREW, TAPPING

97702-50016-00

$2.39

GROMMET

90480-13014-00

$8.49

DAMPER, PLATE

90520-07808-00

$0.33

BODY COWLING SUB ASSY

BS7-XF83F-00-P1

$49.99

BODY COWLING SUB A

BS7-XF83F-00-P3

Unavailable

GRAPHIC 1

B5L-F8391-00-00

$0.70

GRAPHIC,1

BS7-F8391-11-00

$1.54

GRAPHIC 2

B5L-F8392-00-00

$0.75

GRAPHIC,2

BS7-F8392-11-00

$1.64

NUT, SPRING(1YT)

90183-05042-00

$5.60

DAMPER, PLATE

90520-07808-00

$0.33

SEAL

31B-F8307-00-00

$2.19

TRIM

1WD-F8376-00-00

Unavailable

GRAPHIC 3

BS7-F8393-10-00

Unavailable

GRAPHIC 4

BS7-F8394-10-00

Unavailable

SEAL 2

1WD-F414E-00-00

Unavailable

SCREW, ROUND HEAD(1UX)

90150-05023-00

Unavailable

. WASHER, PLATE

90202-05088-00

Unavailable

PANEL, INNER 4

BS7-F836N-00-00

Unavailable

RIVET

90269-06816-00

Unavailable

BOLT

90111-05003-00

Unavailable

DAMPER, LEG SHIELD

BS7-F8327-00-00

Unavailable

PANEL, INNER 5

BS7-F836R-00-00

Unavailable

RIVET

90269-06816-00

Unavailable

BOLT

90111-05003-00

Unavailable

DAMPER, LEG SHIELD

BS7-F8327-00-00

Unavailable

STAY 1

BS7-F8356-00-00

Unavailable

BOLT, FLANGE

95817-08035-00

Unavailable

REAR VIEW MIRROR ASSY (LEFT)

BS7-F6280-00-00

Unavailable

REAR VIEW MIRROR ASSY (RIGHT)

BS7-F6290-00-00

Unavailable

PLATE, RUBBER 1 (BK61)

BK6-F8483-00-00

Unavailable

PLATE, RUBBER 2

BS7-F8484-00-00

Unavailable

PLATE, RUBBER 3

BS7-F8485-00-00

Unavailable

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

COLLAR

90387-06131-00

Unavailable

PLUG

90338-05010-00

Unavailable

LABEL, NOTICE WINDSHIELD 1

1WD-F815K-10-00

Unavailable
