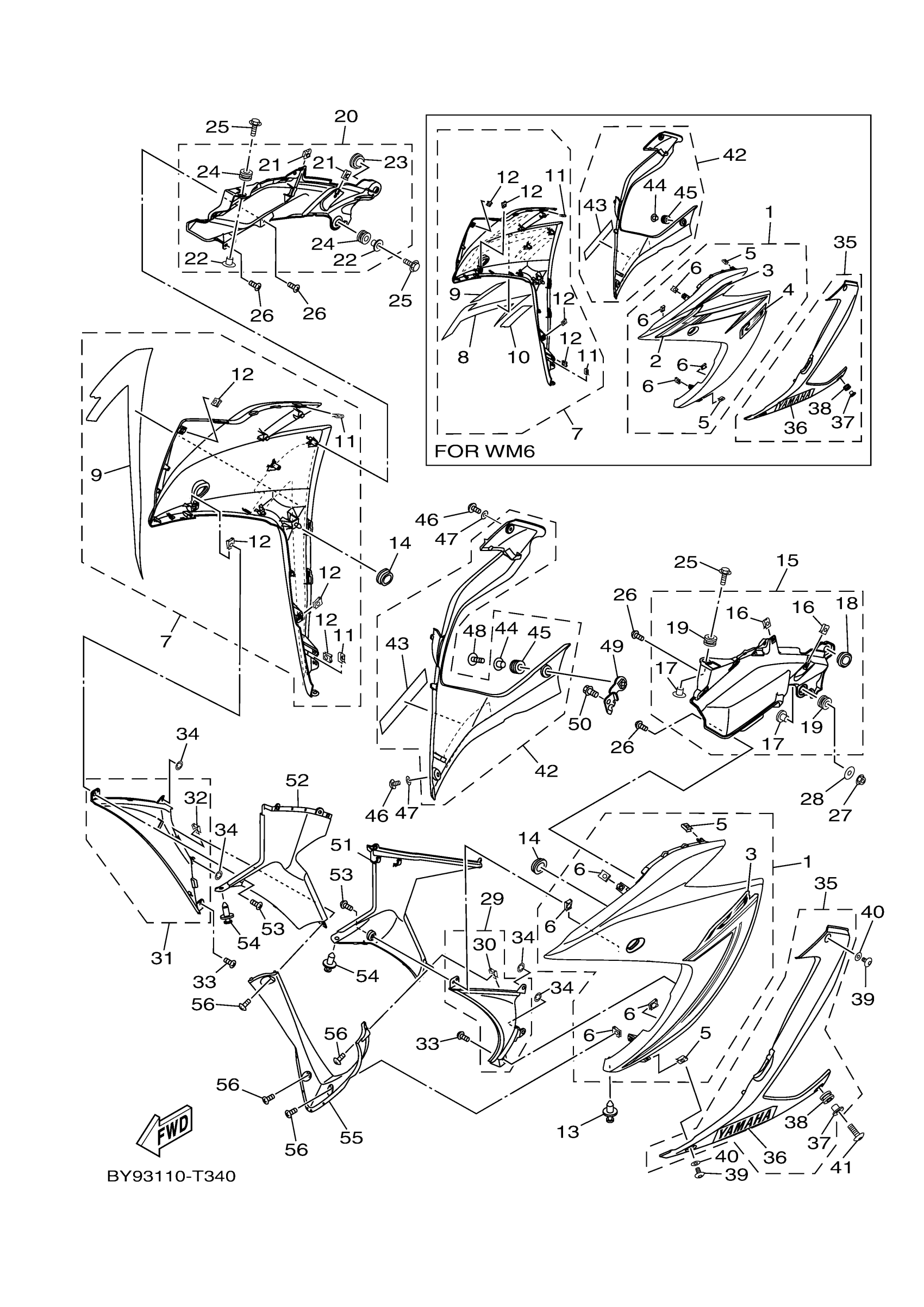

Yamaha YZFR3AJW (YZFR3) BY930 2018 COWLING 1 Diagram
#
1
BODY, FR. UNDER 1 SUB ASSY
1WD-XF83L-90-P0
Unavailable
3
.. GRAPHIC 5 (BLACK METALLIC X)
BR5-F8398-00-00
Unavailable
10
GRAPHIC, 7
BR5-F83GA-00-00
Unavailable
19
GROMMET (3P91)
90480-12808-00
Unavailable
20
COVER 8
1WD-XF11X-10-P0
Unavailable
24
GROMMET (3P91)
90480-12808-00
Unavailable
25
BOLT, WITH WASHER (30X)
90119-06096-00
Unavailable
26
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
27
NUT, FLANGE
95702-06500-00
Unavailable
28
WASHER, PLATE
90201-06380-00
Unavailable
29
PANEL ASSY
1WD-XF835-00-P0
Unavailable
31
PANEL ASSY 2
1WD-XF83B-00-P0
Unavailable
33
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
34
NUT, SPRING(1FK)
90183-06008-00
Unavailable
35
UNDER COVER ASSY 1
1WD-XF838-20-P0
Unavailable
36
EMBLEM
1WD-F8328-31-00
Unavailable
38
GROMMET (3P91)
90480-12808-00
Unavailable
39
BOLT
90111-05003-00
Unavailable
40
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
41
BOLT,HEX. SOCKET BUTTON
90111-06117-00
Unavailable
42
UNDER COVER ASSY 2
1WD-XF839-20-P0
Unavailable
43
EMBLEM
1WD-F8328-31-00
Unavailable
45
GROMMET (3P91)
90480-12808-00
Unavailable
46
BOLT
90111-05003-00
Unavailable
47
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
48
BOLT,HEX. SOCKET BUTTON
90111-06117-00
Unavailable
49
BRACKET 8
1WD-F833E-00-00
Unavailable
50
BOLT, FLANGE
95022-06012-00
Unavailable
51
PANEL, INNER 1
1WD-F836K-01-00
Unavailable
52
PANEL, INNER 2
1WD-F836L-01-00
Unavailable
53
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
55
PANEL, INNER 3
1WD-F836M-00-00
Unavailable
56
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
