Description

Price

1

TAILLIGHT UNIT ASSY

14B-84710-10-00

$202.99

2

SCREW, TRUSS TAP.

97707-50014-00

$8.49

3

COVER, TAILLIGHT

14B-84516-00-00

$24.99

4

GUARD, MUD

14B-21629-01-00

Unavailable

5

LICENCE LIGHT UNIT ASSY

5VX-84745-01-00

$98.99

6

BULB

4SV-84347-00-00

$8.99

7

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

8

SCREW, BIND

98902-05020-00

$1.71

9

NUT, U

95617-05100-00

$9.49

10

WASHER, PLAIN LARGE

92907-05200-00

$4.46

11

COLLAR

90387-05003-00

$5.60

12

GROMMET

90480-11009-00

$1.01

13

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

14

NUT, S/L FLANGE

95607-05200-00

$9.49

15

BRACKET, LICENSE

14B-84751-00-00

Unavailable

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

NUT, SELF-LOCKING

95617-06100-00

Unavailable

18

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

19

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

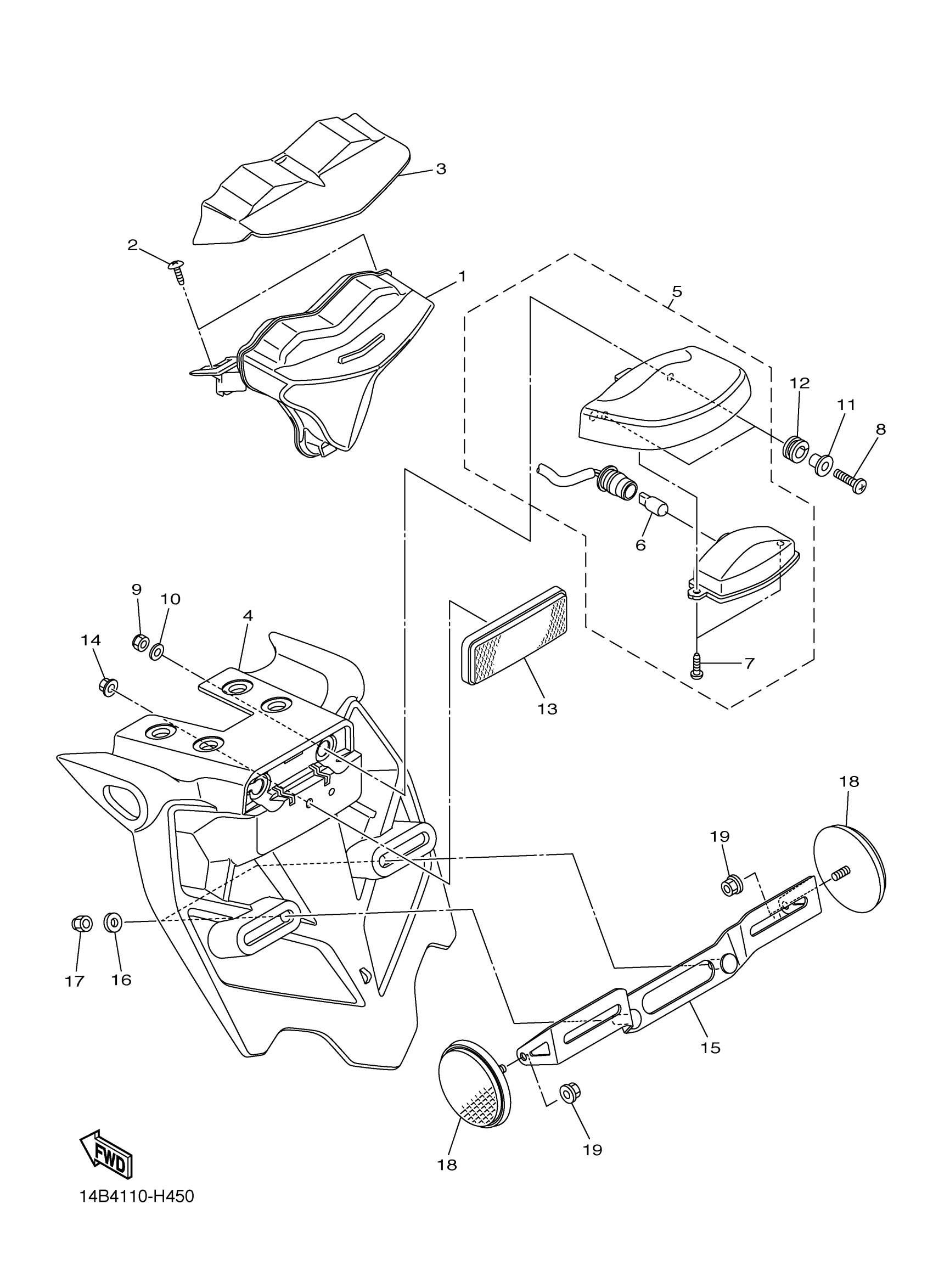

Yamaha YZFR1ZW (YZFR1) 14BF1 2010 TAILLIGHT Diagram

TAILLIGHT UNIT ASSY

SCREW, TRUSS TAP.

COVER, TAILLIGHT

GUARD, MUD

LICENCE LIGHT UNIT ASSY

BULB

SCREW, TRUSS TAP.

SCREW, BIND

NUT, U

WASHER, PLAIN LARGE

COLLAR

GROMMET

REAR REFLECTOR ASSY

NUT, S/L FLANGE

BRACKET, LICENSE

WASHER, PLAIN (646)

NUT, SELF-LOCKING

REFLECTOR, REAR 1

NUT, FLANGE(3GM)
