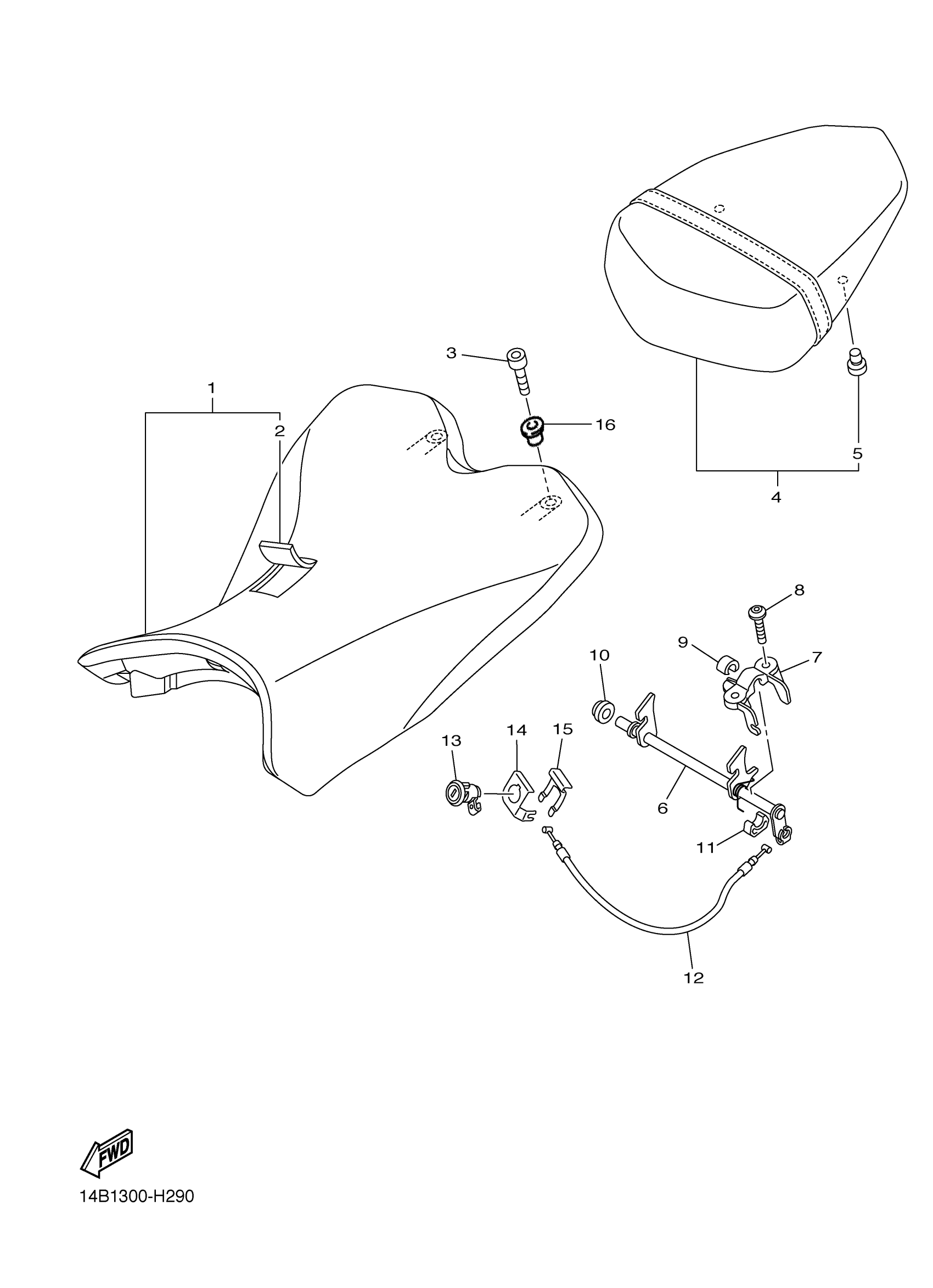

Yamaha YZFR1ZW (YZFR1) 14BF1 2010 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

14B-24710-01-00

Unavailable

2

COVER, SINGLE SEAT

14B-24711-01-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-06258-00

$5.96

4

TANDEM SEAT ASSY

14B-24750-01-00

Unavailable

5

DAMPER, SEAT

5SL-24723-00-00

$5.55

6

SEAT LOCK ASSY

14B-24780-00-00

$60.11

7

PLATE

2C0-24792-00-00

$33.34

8

BOLT

90111-06051-00

$4.04

9

SPACER 1

14B-24725-00-00

$4.30

10

SPACER 1

13S-24725-00-00

$4.85

11

HOLDER 1

13S-24847-00-00

$6.29

12

CABLE, SEAT LOCK

14B-2478E-00-00

$19.26

13

ROTOR SET

5VY-W2470-00-00

Unavailable

14

STAY, LOCK

5VY-2117K-01-00

$6.09

15

SPRING, LOCK 2

5VY-2176V-00-00

$8.36

16

COLLAR

90387-06066-00

Unavailable
