Partiron

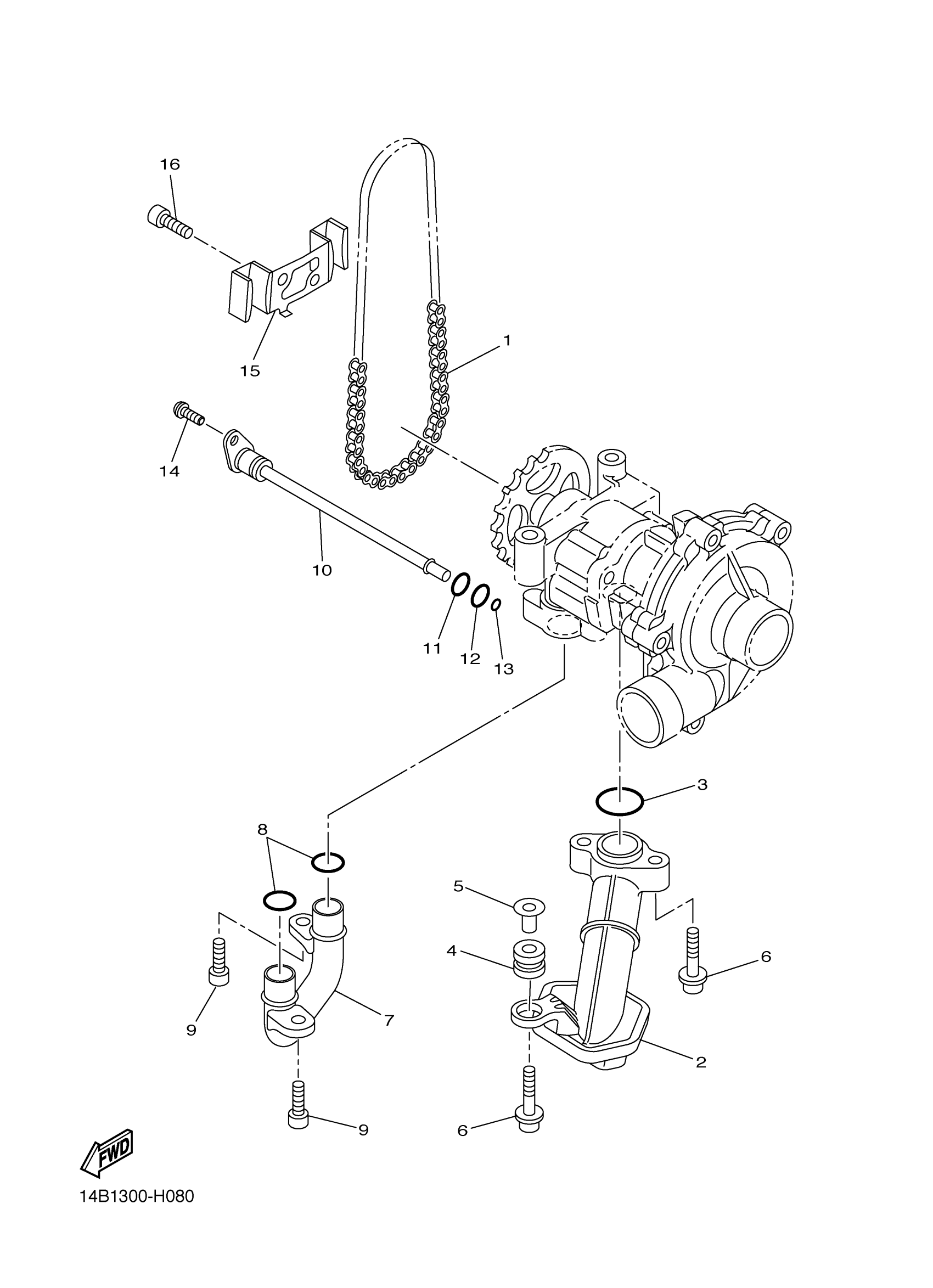

Yamaha YZFR1ZW (YZFR1) 14BF1 2010 OIL PUMP Diagram

#

Description
Price

1

CHAIN

94580-31082-00

$22.63

2

STRAINER HOUSING ASSY

14B-13410-00-00

$64.71

3

O-RING

93210-22M93-00

$3.65

4

GROMMET

90480-13010-00

$5.54

5

COLLAR, DISTANCE

5VY-13117-10-00

$7.94

6

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$7.60

7

PIPE, OIL 1

14B-13416-00-00

Unavailable

8

O-RING

93210-14003-00

$6.02

9

BOLT,SOCKET

91317-06012-00

$5.75

10

PIPE, DELIVERY 5

14B-1316E-00-00

Unavailable

11

O-RING

93210-12010-00

$6.45

12

O-RING (5Y1)

93210-09525-00

$4.40

13

O-RING(26H)

93210-06667-00

$5.42

14

SCREW

90149-06156-00

$5.93

15

HOLDER

14B-13898-00-00

Unavailable

16

BOLT,SOCKET

91317-06012-00

$5.75
