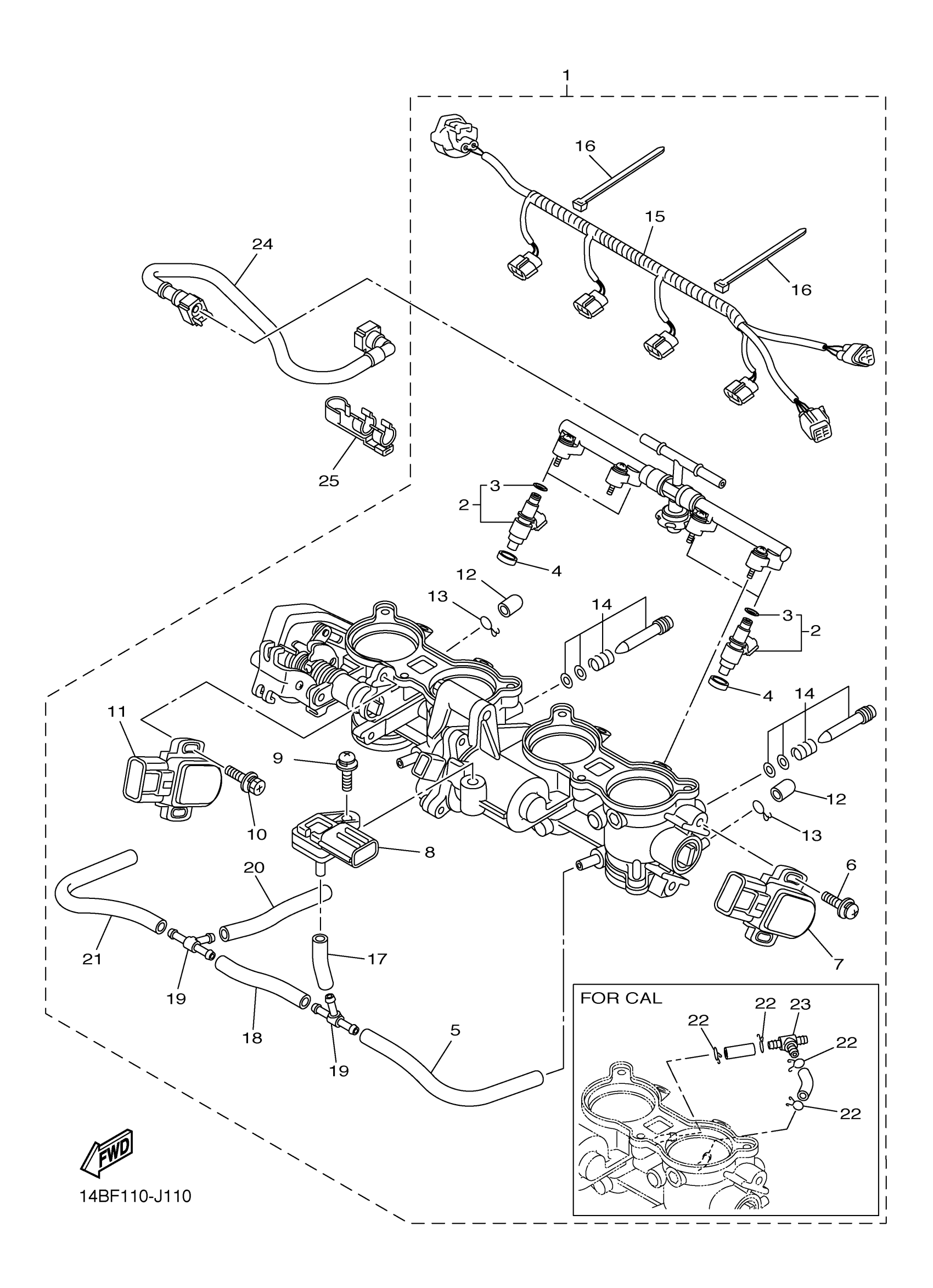

Yamaha YZFR1ZW (YZFR1) 14BF1 2010 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

14B-13750-00-00

Unavailable

2

INJECTOR

14B-13761-00-00

Unavailable

3

O-RING

5PS-14147-00-00

$8.68

4

GASKET, MANIFOLD

8FP-13556-00-00

$11.48

5

PIPE

5PW-14396-00-00

$8.67

6

SCREW

8CC-14216-10-00

$6.66

7

THROTTLE SENSOR AS

13S-85885-01-00

$114.75

8

SENSOR, PRESSURE

1WS-82380-00-00

$159.59

9

SCREW

2C0-14216-00-00

$2.98

10

SCREW

5FL-14216-00-00

$3.64

11

ACCELERATOR SENSOR ASSY.

13S-85884-01-00

Unavailable

12

CAP

895-14169-00-00

$3.73

13

CLIP, PIPE

8A7-14139-00-00

$6.34

14

PILOT SCREW SET

2C0-14105-00-00

$30.09

15

EXTENSION, WIRE HARNESS

14B-82386-00-00

Unavailable

16

CLIP

4KM-14137-00-00

Unavailable

17

PIPE 1

5FL-14348-10-00

Unavailable

18

PIPE, FUEL 1

5JW-24311-00-00

Unavailable

19

. PIPE, JOINT 1

68V-24376-00-00

$13.59

20

PIPE 1

5JW-14348-00-00

Unavailable

21

PIPE

5PW-14349-00-00

Unavailable

24

PIPE, FUEL 1

14B-13971-01-00

Unavailable

25

CLAMP

90464-16005-00

Unavailable
