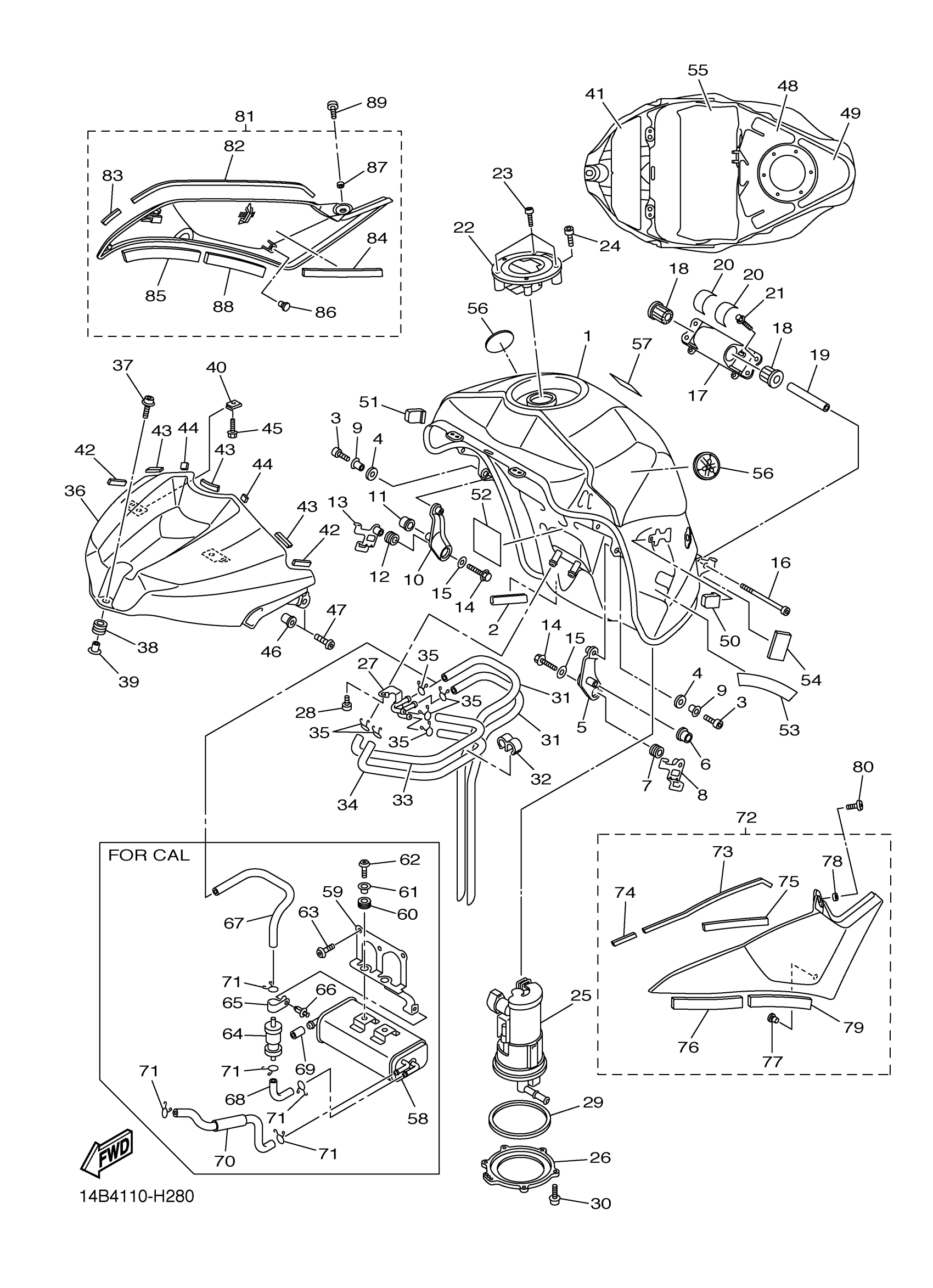

Yamaha YZFR1ZW (YZFR1) 14BF1 2010 FUEL TANK Diagram
#
2
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
5
BRACKET, FUEL TANK 1
14B-24191-10-00
Unavailable
7
GROMMET(3XV)
90480-10542-00
Unavailable
10
BRACKET, FUEL TANK 2
14B-24192-10-00
Unavailable
12
GROMMET(3XV)
90480-10542-00
Unavailable
16
BOLT, HEXAGON SOCKET HEAD
90110-06296-00
Unavailable
17
BRACKET, TANK FITTING
14B-2413Y-00-00
Unavailable
18
DAMPER, LOCATING 3
5SL-24183-00-00
Unavailable
19
COLLAR
90387-06055-00
Unavailable
20
SEAL 2
14B-2414E-00-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
Unavailable
22
CAP ASSY
39P-24602-00-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
24
BOLT
91312-05010-00
Unavailable
25
FUEL PUMP COMP.
14B-13907-23-00
Unavailable
26
BRACKET, FUEL PUMP
13S-24491-00-00
Unavailable
27
CLAMP 1
14B-24135-00-00
Unavailable
28
BOLT
91312-05008-00
Unavailable
29
O-RING
19B-24486-01-00
Unavailable
30
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
31
PIPE 2
14B-24312-00-00
Unavailable
32
CLAMP(6M7)
90464-09M31-00
Unavailable
33
PIPE 3
14B-24313-00-00
Unavailable
34
PIPE 4
14B-24314-00-00
Unavailable
35
CLIP
90467-090A2-00
Unavailable
36
COVER, TOP
14B-2171A-00-P5
Unavailable
37
BOLT, HEXAGON SOCKET HEAD
90110-06233-00
Unavailable
38
GROMMET
90480-12023-00
Unavailable
39
COLLAR
90387-06203-00
Unavailable
40
NUT, SPRING(3YX)
90183-05074-00
Unavailable
41
DAMPER, PLATE 1
14B-2414H-00-00
Unavailable
42
DAMPER, LOCATING 2
4C8-24182-00-00
Unavailable
43
DAMPER, LOCATING 1
3XV-21778-00-00
Unavailable
44
DAMPER, LOCATING 1
14B-24181-00-00
Unavailable
45
BOLT, WITH WASHER
90119-05015-00
Unavailable
46
NUT(1KT)
90179-05523-00
Unavailable
47
SCREW, BIND
98902-05014-00
Unavailable
48
DAMPER, PLATE 4
14B-2414N-00-00
Unavailable
49
DAMPER, PLATE 5
14B-2414P-00-00
Unavailable
50
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
51
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
52
DAMPER
5VU-21747-00-00
Unavailable
53
DAMPER, PLATE 3
14B-2414K-00-00
Unavailable
54
SEAL
14B-2414G-00-00
Unavailable
55
DAMPER, PLATE
90520-05002-00
Unavailable
56
EMBLEM
5SL-2413B-00-00
Unavailable
57
LABEL, CAUTION
4C8-2118K-00-00
Unavailable
72
TANK SIDE COVER ASSY 1
14B-24106-00-00
Unavailable
73
DAMPER, PLATE 1
2C0-2414H-00-00
Unavailable
74
DAMPER, PLATE 2
14B-2414J-00-00
Unavailable
75
DAMPER, PLATE
90520-04012-00
Unavailable
76
DAMPER, PLATE 2
2C0-2414J-00-00
Unavailable
77
PLUG(1NL)
90338-07180-00
Unavailable
78
SPACER(7YL)
90560-05N33-00
Unavailable
79
DAMPER, PLATE
90520-10005-00
Unavailable
80
SCREW, BIND
98902-05008-00
Unavailable
81
TANK SIDE COVER ASSY 2
14B-24108-00-00
Unavailable
82
DAMPER, PLATE 1
2C0-2414H-00-00
Unavailable
83
DAMPER, PLATE 2
14B-2414J-00-00
Unavailable
84
DAMPER, PLATE
90520-04012-00
Unavailable
85
DAMPER, PLATE 2
2C0-2414J-00-00
Unavailable
86
PLUG(1NL)
90338-07180-00
Unavailable
87
SPACER(7YL)
90560-05N33-00
Unavailable
88
DAMPER, PLATE
90520-10005-00
Unavailable
89
SCREW, BIND
98902-05008-00
Unavailable
