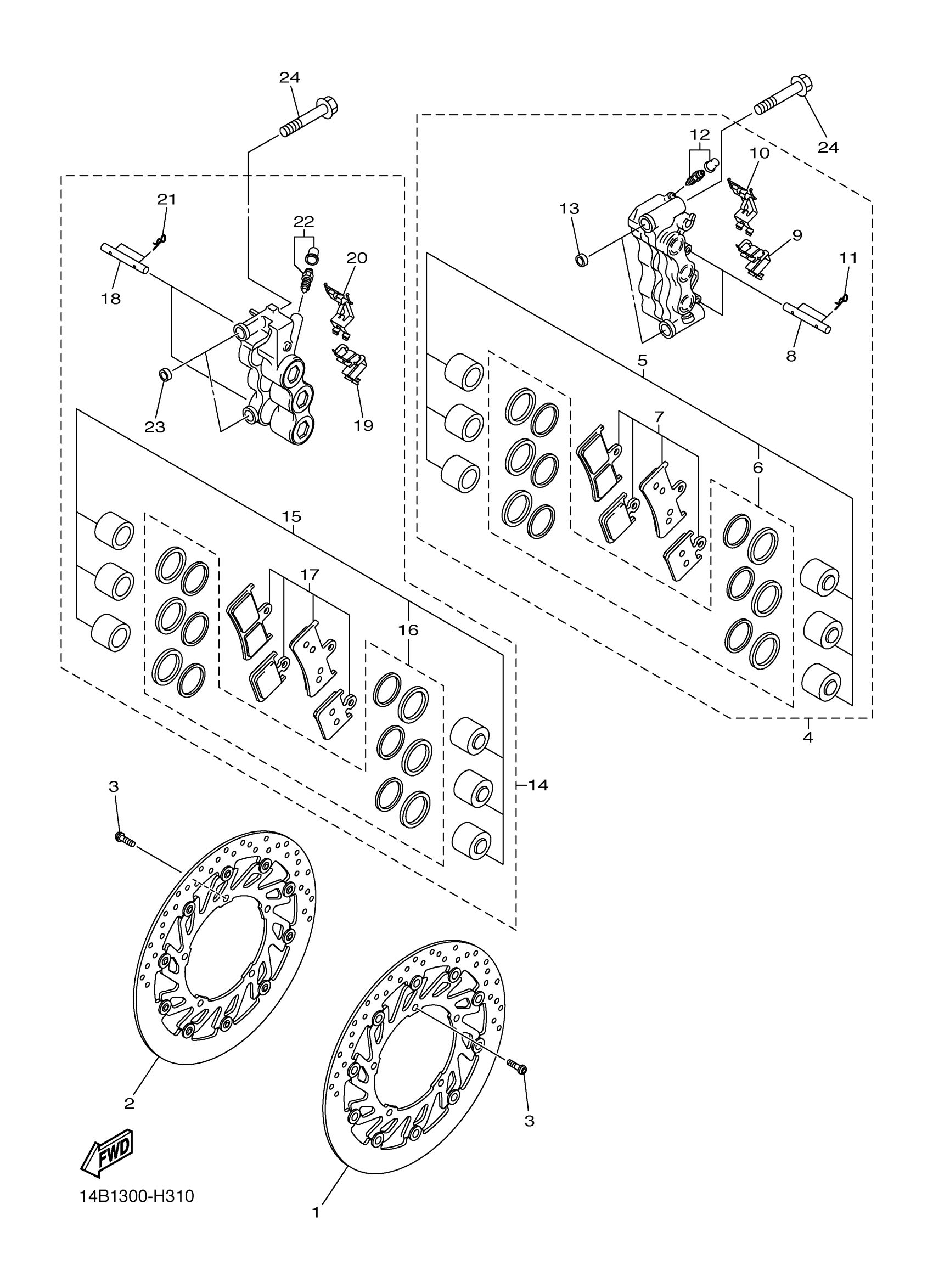

Yamaha YZFR1ZW (YZFR1) 14BF1 2010 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

14B-2581T-00-00

Unavailable

2

DISC BRAKE ASSY (RIGHT)

14B-2581U-00-00

Unavailable

3

SCREW

90149-06045-00

$8.49

4

CALIPER ASSY (LEFT)

4C8-2580T-10-00

Unavailable

5

PISTON ASSY, CALIPER

4C8-25802-00-00

Unavailable

6

CALIPER SEAL KIT

4C8-25803-00-00

$49.99

7

BRAKE PAD KIT

4C8-25805-00-00

$53.99

8

PIN, PAD

4SV-25924-00-00

$42.99

9

SUPPORT, PAD

4C8-25919-00-00

$7.99

10

SUPPORT, PAD

2S3-25919-10-00

Unavailable

11

CLIP, PAD PIN

3GM-25925-00-00

$11.99

12

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

13

PIN, KNOCK

5VY-2583B-00-00

Unavailable

14

CALIPER ASSY (RIGHT)

4C8-2580U-10-00

$524.99

15

PISTON ASSY, CALIPER

4C8-25802-00-00

Unavailable

16

CALIPER SEAL KIT

4C8-25803-00-00

$49.99

17

BRAKE PAD KIT

4C8-25805-00-00

$53.99

18

PIN, PAD

4SV-25924-00-00

$42.99

19

SUPPORT, PAD

4C8-25919-00-00

$7.99

20

SUPPORT, PAD

2S3-25919-10-00

Unavailable

21

CLIP, PAD PIN

3GM-25925-00-00

$11.99

22

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

23

PIN, KNOCK

5VY-2583B-00-00

Unavailable

24

BOLT, UNION

90401-10012-00

Unavailable
