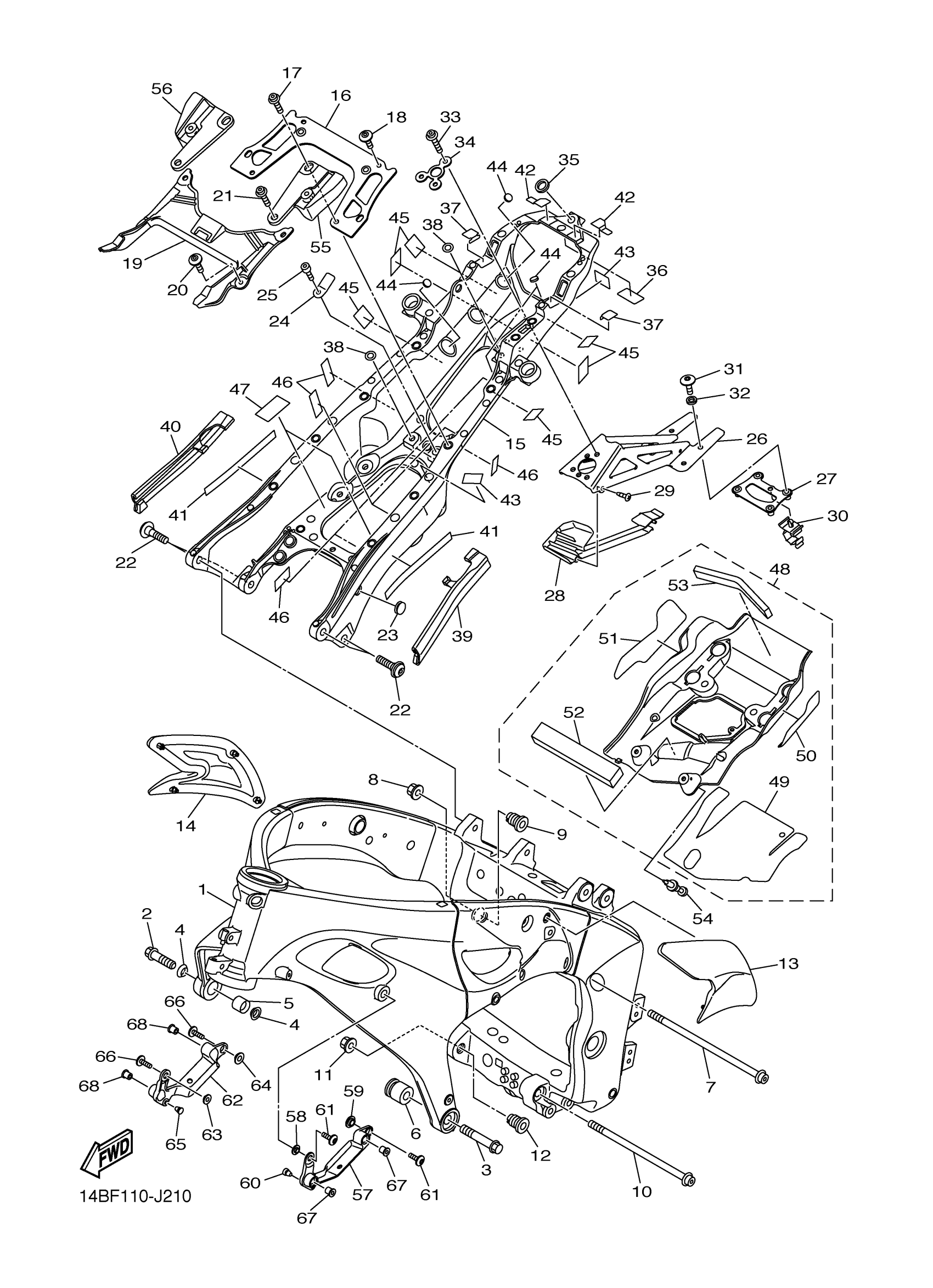

Yamaha YZFR1ZW (YZFR1) 14BF1 2010 FRAME Diagram
#
1
FRAME COMP.
14B-21110-00-00
Unavailable
3
BOLT, FLANGE
95817-12080-00
Unavailable
7
BOLT, HEXAGON SOCKET HEAD
90110-10005-00
Unavailable
13
SEAT, KNEE GRIP 1
14B-24121-00-00
Unavailable
14
SEAT, KNEE GRIP 2
14B-24122-00-00
Unavailable
16
BRACKET
14B-21131-00-00
Unavailable
17
BOLT
90109-06015-00
Unavailable
18
BOLT
90111-06051-00
Unavailable
19
REINF., FRAME RR.
14B-21214-00-00
Unavailable
20
BOLT
90111-06051-00
Unavailable
21
BOLT
90109-06015-00
Unavailable
22
SCREW,SET
14B-2585H-09-00
Unavailable
23
PLUG
90338-15004-00
Unavailable
24
BRKT.
14B-2116B-00-00
Unavailable
25
BOLT, HEXAGON SOCKET HEAD
90110-06106-00
Unavailable
26
REAR STAY COMP.
14B-21640-00-00
Unavailable
27
STAY, PLATE
14B-21682-00-00
Unavailable
28
COVER, REAR FENDER 1
14B-2163A-01-00
Unavailable
29
SCREW, TAPPING
97702-50016-00
Unavailable
30
CLAMP(4NX)
90464-14228-00
Unavailable
31
BOLT,HEX. SOCKET BUTTON
90111-06129-00
Unavailable
32
WASHER 6464337400
90201-06040-00
Unavailable
33
BOLT
90109-06031-00
Unavailable
34
WASHER, SPECIAL 1
14B-21615-00-00
Unavailable
35
DAMPER
13S-21746-00-00
Unavailable
36
SEAL 1
14B-22873-00-00
Unavailable
37
SEAL 2
14B-22874-00-00
Unavailable
38
SEAL 3
13S-2173M-00-00
Unavailable
39
SEAL 4
14B-22876-00-00
Unavailable
40
SEAL, 5
14B-22877-00-00
Unavailable
41
TAPE, 2
13S-21567-00-00
Unavailable
42
SEAL, 7
14B-22879-00-00
Unavailable
43
DAMPER 3
14B-28425-00-00
Unavailable
44
DAMPER 1
14B-28217-00-00
Unavailable
45
DAMPER 2
14B-28227-00-00
Unavailable
46
DAMPER 3
14B-28237-00-00
Unavailable
47
DAMPER 4
14B-28435-00-00
Unavailable
48
COVER ASSY 2
14B-2110N-20-00
Unavailable
49
SEAT 1
14B-2112B-00-00
Unavailable
50
SHEET,2
14B-2113C-00-00
Unavailable
51
. SHEET, 3
14B-2113D-00-00
Unavailable
52
DAMPER, PLATE
90520-15001-00
Unavailable
53
DAMPER, PLATE
90520-15004-00
Unavailable
54
RIVET
90269-06016-00
Unavailable
55
STAY, SIDE COVER 1
14B-2172E-00-00
Unavailable
56
STAY, SIDE COVER 2
14B-2174E-00-00
Unavailable
57
BRACKET 3
14B-2836F-00-00
Unavailable
58
COLLAR
90387-06217-00
Unavailable
59
COLLAR
90387-08079-00
Unavailable
60
PLUG(1NL)
90338-07180-00
Unavailable
61
BOLT
90111-06051-00
Unavailable
62
BRACKET 4
14B-2836G-00-00
Unavailable
63
COLLAR
90387-06217-00
Unavailable
64
COLLAR
90387-08079-00
Unavailable
65
PLUG(1NL)
90338-07180-00
Unavailable
66
BOLT
90111-06051-00
Unavailable
67
NUT(1KT)
90179-05523-00
Unavailable
68
NUT(1KT)
90179-05523-00
Unavailable
