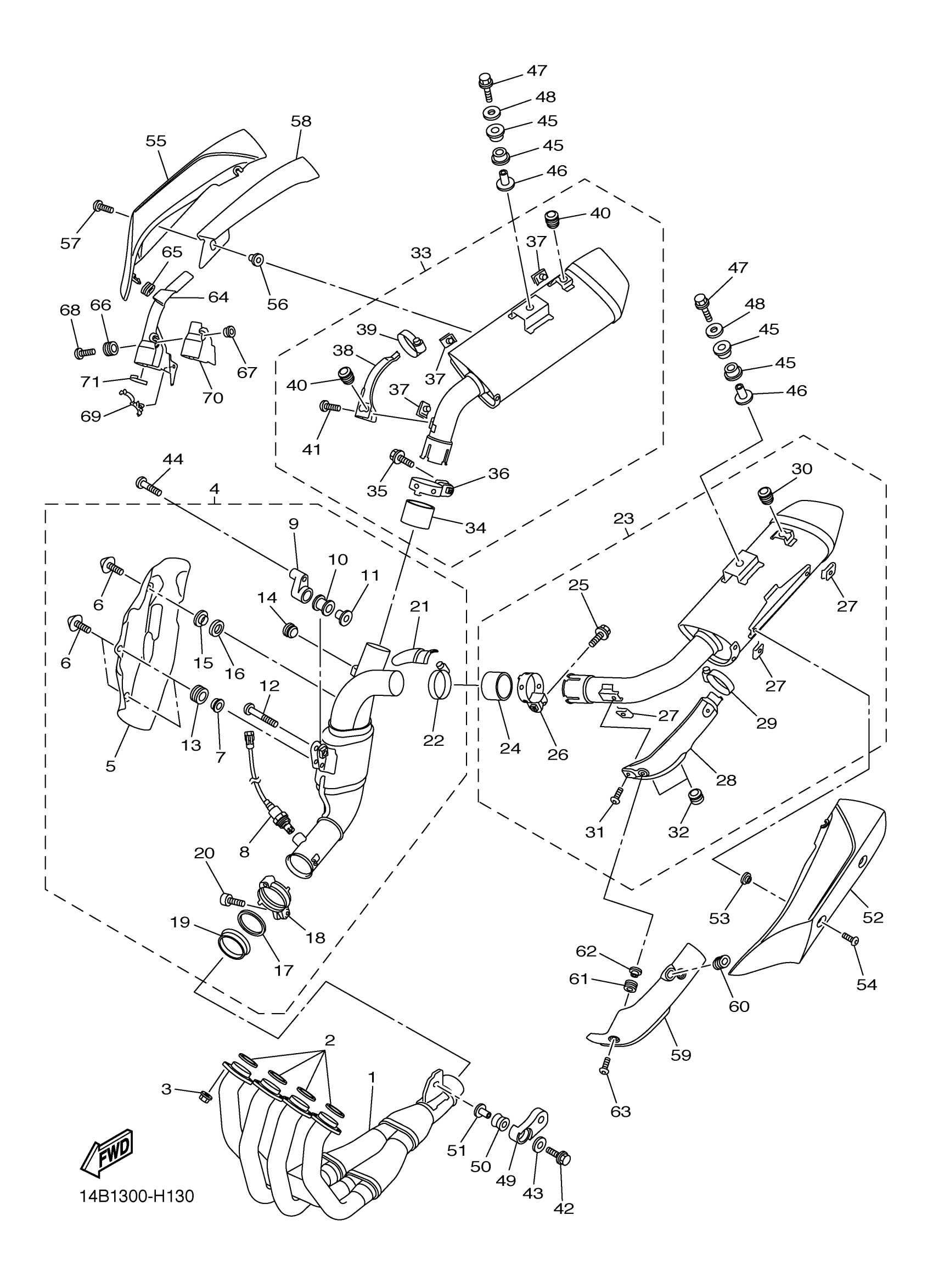

Yamaha YZFR1ZW (YZFR1) 14BF1 2010 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE COMP.

14B-14602-00-00

Unavailable

2

GASKET, EXHAUST PIPE

4FM-14613-00-00

$12.99

3

NUT (22U)

90179-08410-00

$9.49

4

CATALYST ASSY.

14B-14740-00-00

Unavailable

5

PROTECTOR, MUFFLER 3

14B-14738-00-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

7

COLLAR

90387-06112-00

$7.49

8

SENSOR, OXYGEN

14B-8592A-00-00

Unavailable

9

STAY, MUFFLER 1

14B-21445-00-00

$36.99

10

DAMPER, FOOTREST 2

4XV-27424-00-00

$15.49

11

COLLAR

90387-08005-00

$14.99

12

BOLT, BUTTON HEAD(3YF)

92014-08035-00

$8.49

13

GROMMET(4HX)

90480-12579-00

Unavailable

14

DAMPER, MUFFLER

2D1-14737-01-00

Unavailable

15

COLLAR

90387-06217-00

$18.99

16

WASHER, PLATE

90201-08080-00

Unavailable

17

GASKET, EXHAUST PIPE

14B-14623-00-00

Unavailable

18

BAND, MUFFLER

14B-14725-00-00

Unavailable

19

RING, STOPPER

14B-14618-00-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

90110-06343-00

Unavailable

21

PLATE, PROTECTOR 3

14B-1465U-00-00

Unavailable

22

HOSE CLAMP ASSY

90450-45001-00

Unavailable

23

MUFFLER ASSY 1

14B-14710-10-00

Unavailable

24

GASKET, MUFFLER

5VY-14714-00-00

Unavailable

25

BOLT, FLANGE

90105-08063-00

Unavailable

26

BAND, MUFFLER

3D8-14715-00-00

Unavailable

27

NUT, SPRING

90183-060A2-00

Unavailable

28

PLATE, PROTECTOR

14B-1465R-00-00

Unavailable

29

HOSE CLAMP ASSY

90450-45001-00

Unavailable

30

DAMPER, MUFFLER

3D7-14737-00-00

Unavailable

31

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

32

DAMPER, LOCATING 1

4FM-24181-00-00

Unavailable

33

MUFFLER ASSY 2

14B-14720-10-00

Unavailable

34

GASKET, MUFFLER

5VY-14714-00-00

Unavailable

35

BOLT, FLANGE

90105-08063-00

Unavailable

36

BAND, MUFFLER

3D8-14715-00-00

Unavailable

37

NUT, SPRING

90183-060A2-00

Unavailable

38

PLATE, PROTECTOR

14B-1465T-00-00

Unavailable

39

HOSE CLAMP ASSY

90450-45001-00

Unavailable

40

DAMPER, MUFFLER

3D7-14737-00-00

Unavailable

41

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

42

BOLT, FLANGE

95817-08040-00

Unavailable

43

WASHER, PLATE(3DM)

90201-087G2-00

Unavailable

44

BOLT,HEX. SOCKET BUTTON

90111-08071-00

Unavailable

45

DAMPER, FOOTREST 2

14B-27424-00-00

Unavailable

46

COLLAR

90387-08020-00

Unavailable

47

BOLT, FLANGE

95814-08045-00

Unavailable

48

WASHER, PLATE

90201-08034-00

Unavailable

49

STAY, MUFFLER 2

14B-21446-00-00

Unavailable

50

DAMPER, MUFFLER

5VY-14747-00-00

Unavailable

51

COLLAR

90387-08021-00

Unavailable

52

PROTECTOR, MUFFLER 1

14B-14718-00-00

Unavailable

53

COLLAR

90387-06170-00

Unavailable

54

BOLT,HEX. SOCKET BUTTON

90111-06127-00

Unavailable

55

PROTECTOR, MUFFLER 2

14B-14728-00-00

Unavailable

56

COLLAR

90387-06170-00

Unavailable

57

BOLT,HEX. SOCKET BUTTON

90111-06127-00

Unavailable

58

SEAT

14B-1476P-00-00

Unavailable

59

COVER, REAR FENDER 2

14B-2163E-00-00

Unavailable

60

GROMMET(4DN)

90480-01558-00

Unavailable

61

GROMMET(4FW)

90480-12581-00

Unavailable

62

COLLAR(50M)

90387-087L0-00

Unavailable

63

BOLT,HEX. SOCKET BUTTON

90111-06095-00

Unavailable

64

COVER, REAR FENDER 3

14B-2163F-00-00

Unavailable

65

GROMMET(4DN)

90480-01558-00

Unavailable

66

GROMMET(4FW)

90480-12581-00

Unavailable

67

COLLAR(50M)

90387-087L0-00

Unavailable

68

BOLT,HEX. SOCKET BUTTON

90111-06095-00

Unavailable

69

CLAMP

90464-16006-00

Unavailable

70

SEAT

14B-1478P-00-00

Unavailable

71

SEAT 5

14B-1479P-00-00

Unavailable
