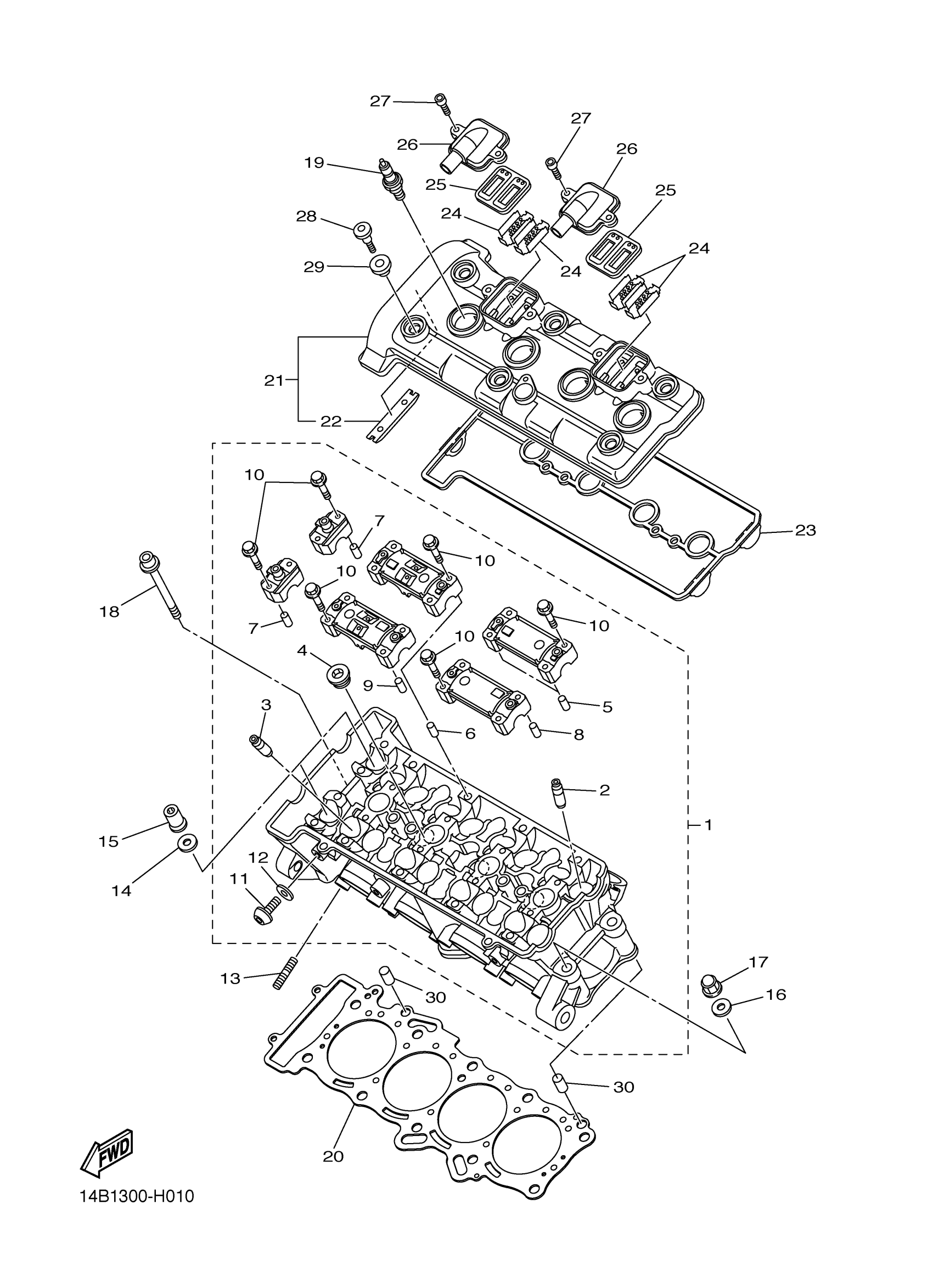

Yamaha YZFR1ZW (YZFR1) 14BF1 2010 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

14B-11101-19-00

Unavailable

2

GUIDE, VALVE 1

14B-11133-10-00

$43.99

3

GUIDE, VALVE 2

4C8-11134-10-00

$45.99

4

PLUG, STRAIGHT SCREW

90340-18002-00

$10.49

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

PIN, DOWEL(3XW)

91808-16023-00

$8.49

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

PIN, DOWEL(3XW)

91808-16023-00

$8.49

9

PIN, DOWEL(3XW)

91808-16023-00

$8.49

10

BOLT, WASHER BASED

90105-06027-00

$7.49

11

SCREW

90149-06156-00

$8.49

12

GASKET 256113960000

90430-06014-00

Unavailable

13

BOLT, STUD

95612-08625-00

$7.49

14

WASHER, PLATE

90201-10050-00

$7.49

15

NUT

90179-10029-00

$10.49

16

WASHER, PLATE

90201-10050-00

$7.49

17

NUT, CROWN(2GG)

90176-10075-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-06315-00

Unavailable

19

PLUG, SPARK (NGK LMAR9E-J)

LMA-R9EJ0-00-00

Unavailable

20

GASKET, CYLINDER HEAD 1

14B-11181-00-00

Unavailable

21

COVER, CYLINDER HEAD 1

14B-11191-00-00

Unavailable

22

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

23

GASKET, HEAD COVER 1

14B-11193-00-00

Unavailable

24

PLATE

5VY-1482K-00-00

Unavailable

25

REED VALVE ASSY

5SL-14890-10-00

Unavailable

26

CAP, CASE

14B-14899-00-00

Unavailable

27

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

28

BOLT(4BP)

90109-066F0-00

Unavailable

29

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

30

PIN, DOWEL(3VD)

99530-10114-00

Unavailable
