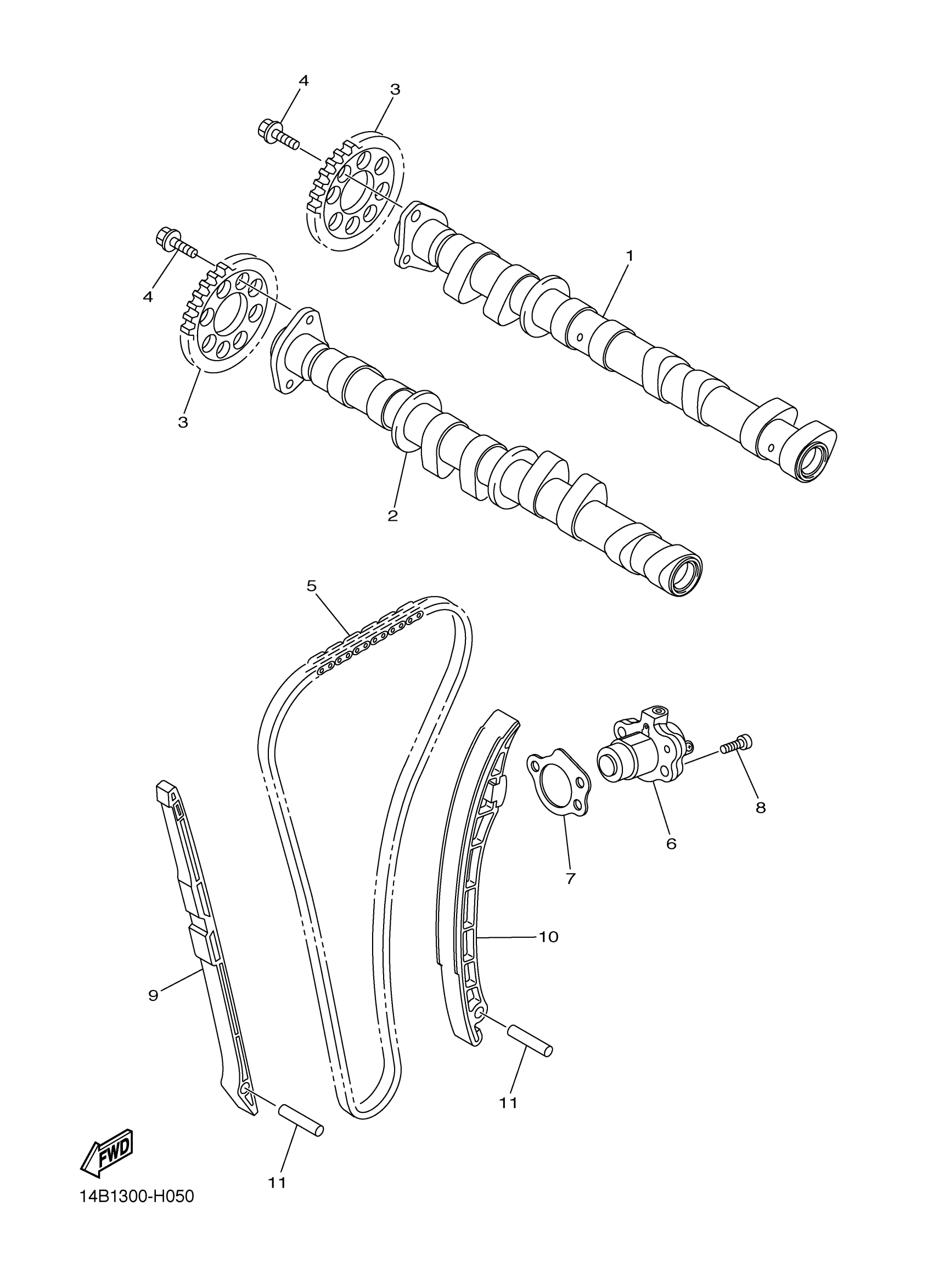

Yamaha YZFR1ZW (YZFR1) 14BF1 2010 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

14B-12170-01-00

Unavailable

2

CAMSHAFT ASSY 2

14B-12180-01-00

Unavailable

3

SPROCKET, CAM CHAIN

14B-12176-00-00

$82.07

4

BOLT, FLANGE

90105-07006-00

$5.84

5

CHAIN

94591-60126-00

Unavailable

6

TENSIONER ASSY, CAM CHAIN

1KB-12210-02-00

Unavailable

7

GASKET, TENSIONER CASE

14B-12213-00-00

$6.29

8

BOLT,SOCKET

91317-06025-00

$1.91

9

DAMPER, CHAIN 1

1KB-12251-00-00

$55.27

10

DAMPER, CHAIN 2

14B-12252-00-00

$93.70

11

PIN, DOWEL

93607-44002-00

$3.95
