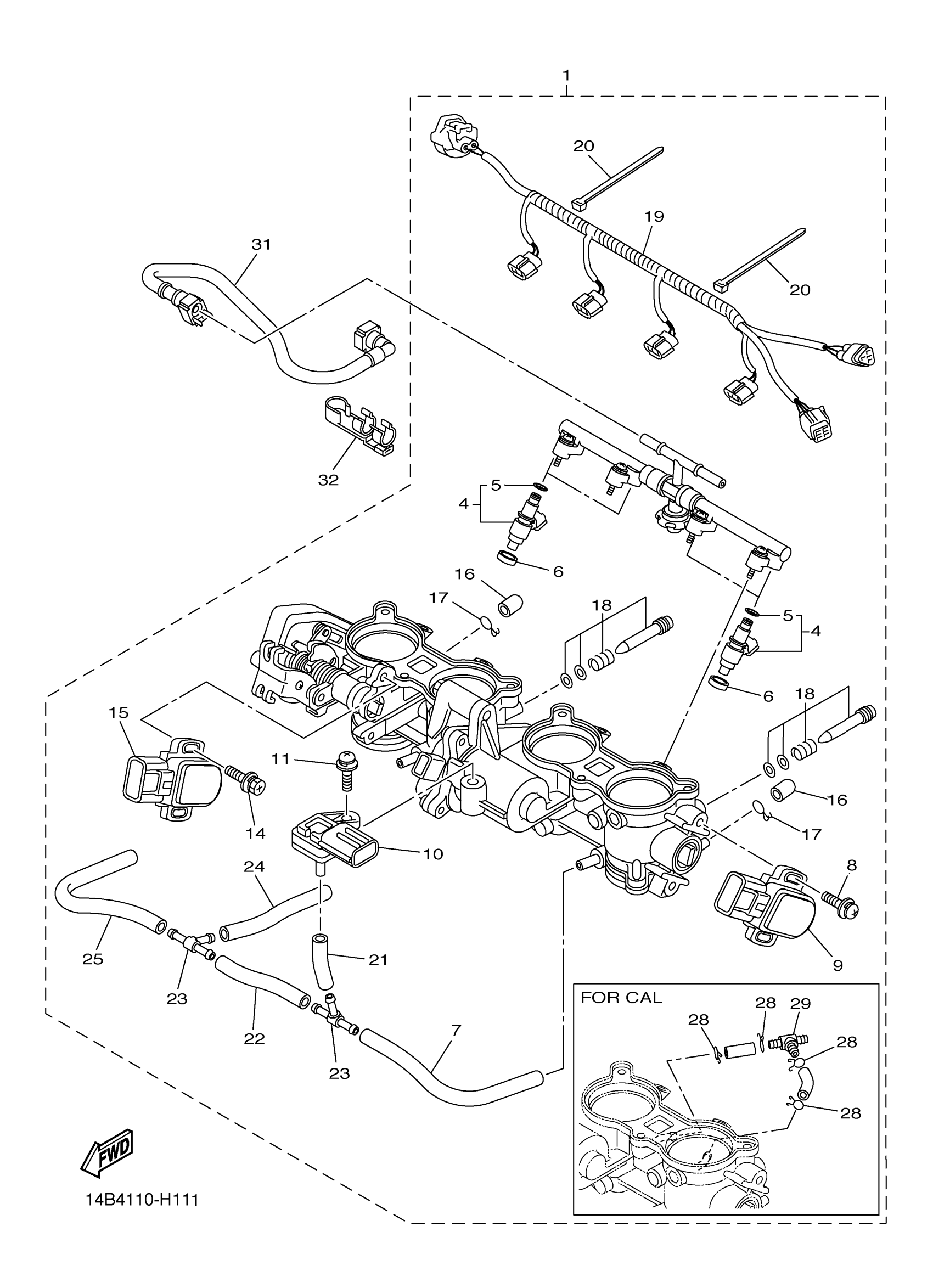

Yamaha YZFR1YY (YZFR1) 14B41 2009 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

14B-13750-00-00

Unavailable

2

. PIPE, INL.

14B-1393A-00-00

Unavailable

3

. PIPE, INL. 2

14B-1393B-00-00

Unavailable

4

INJECTOR

14B-13761-00-00

Unavailable

5

O-RING

5PS-14147-00-00

$13.49

6

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

7

PIPE

5PW-14396-00-00

$11.99

8

SCREW

8CC-14216-10-00

$7.99

9

THROTTLE SENSOR AS

13S-85885-01-00

$138.99

10

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

11

SCREW

2C0-14216-00-00

$3.28

12

. WASHER

14B-13571-00-00

Unavailable

13

BOLT 1

14B-13573-00-00

$6.99

14

SCREW

5FL-14216-00-00

$6.99

15

ACCELERATOR SENSOR ASSY.

13S-85884-01-00

$210.99

16

CAP

895-14169-00-00

Unavailable

17

CLIP, PIPE

8A7-14139-00-00

Unavailable

18

PILOT SCREW SET

2C0-14105-00-00

Unavailable

19

EXTENSION, WIRE HARNESS

14B-82386-00-00

Unavailable

20

CLIP

4KM-14137-00-00

Unavailable

21

PIPE 1

5FL-14348-10-00

Unavailable

22

PIPE, FUEL 1

5JW-24311-00-00

Unavailable

23

. PIPE, JOINT 1

68V-24376-00-00

Unavailable

24

PIPE 1

5JW-14348-00-00

Unavailable

25

PIPE

5PW-14349-00-00

Unavailable

26

. O-RING

2S3-13769-00-00

Unavailable

31

PIPE, FUEL 1

14B-13971-01-00

Unavailable

32

CLAMP

90464-16005-00

Unavailable
