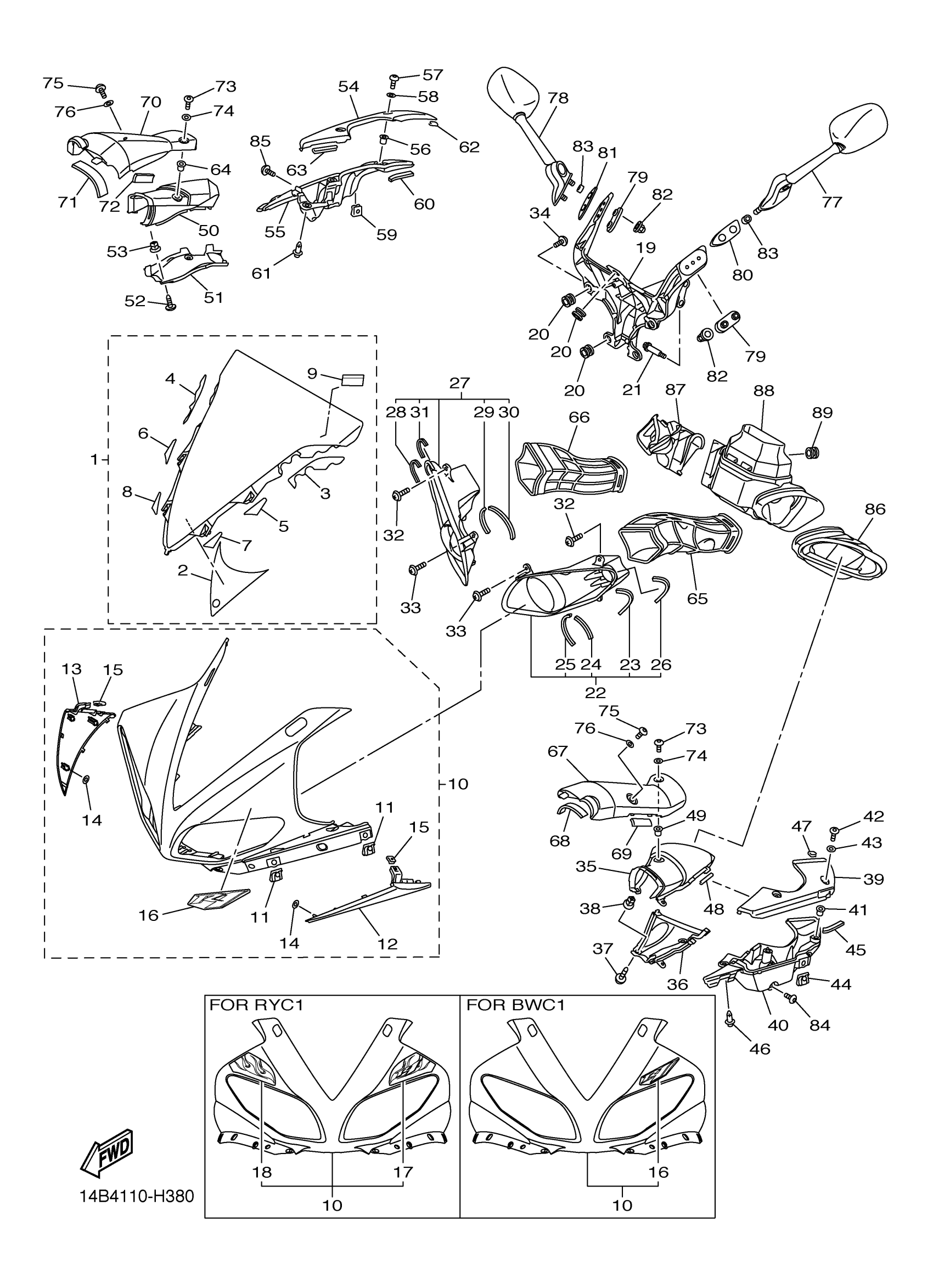

Yamaha YZFR1YY (YZFR1) 14B41 2009 COWLING 1 Diagram
#
1
SCREEN
14B-Y283P-10-00
Unavailable
2
. GRAPHIC, 18
14B-2832P-00-00
Unavailable
3
SEAL 1
14B-28428-00-00
Unavailable
4
. SEAL 2
14B-28429-00-00
Unavailable
10
BODY, FRONT UPPER 1
14B-Y283G-30-P3
Unavailable
12
COVER 1
14B-28219-00-P0
Unavailable
13
COVER 2
14B-28229-00-P0
Unavailable
16
EMBLEM
14B-28315-30-00
Unavailable
19
STAY 1
14B-28356-00-00
Unavailable
20
DAMPER
4XV-83513-00-00
Unavailable
21
BOLT, FLANGE
90105-08052-00
Unavailable
22
GRILL ASSY
14B-2838B-00-00
Unavailable
23
DAMPER
14B-28372-00-00
Unavailable
24
SEAL 4
J44-78248-00-00
Unavailable
25
DAMPER, PLATE
90520-03001-00
Unavailable
26
DAMPER 5
1TX-28267-00-00
Unavailable
27
GRILL ASSY
14B-2838B-10-00
Unavailable
28
DAMPER
14B-28372-00-00
Unavailable
29
SEAL 4
J44-78248-00-00
Unavailable
30
DAMPER, PLATE
90520-03001-00
Unavailable
31
DAMPER 5
1TX-28267-00-00
Unavailable
32
SCREW, ROUND TAPPING
90160-05007-00
Unavailable
33
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
34
SCREW, ROUND TAPPING
90160-05006-00
Unavailable
35
DUCT 1
14B-2838N-00-P2
Unavailable
36
DUCT 3
14B-2838T-00-00
Unavailable
37
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
38
GROMMET
90480-08005-00
Unavailable
39
LID 1
14B-2839K-00-P2
Unavailable
40
BOX 3
14B-2838V-00-00
Unavailable
41
NUT(1KT)
90179-05523-00
Unavailable
42
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
43
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
45
SEAL 4
J44-78248-00-00
Unavailable
46
RIVET(4PH)
90269-07077-00
Unavailable
47
DAMPER, PLATE
90520-01001-00
Unavailable
48
DAMPER, PLATE
90520-03005-00
Unavailable
49
NUT(1KT)
90179-05523-00
Unavailable
50
DUCT 2
14B-2838R-00-P2
Unavailable
51
DUCT 4
14B-2838U-00-00
Unavailable
52
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
53
GROMMET
90480-08005-00
Unavailable
54
LID 2 (BLACK METALLIC X) (DEEP RED METALLIC K)
14B-2839L-00-P2
Unavailable
55
BOX 4
14B-2838W-00-00
Unavailable
56
NUT(1KT)
90179-05523-00
Unavailable
57
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
58
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
60
SEAL 4
J44-78248-00-00
Unavailable
61
RIVET(4PH)
90269-07077-00
Unavailable
62
DAMPER, PLATE
90520-01001-00
Unavailable
63
DAMPER, PLATE
90520-03005-00
Unavailable
64
NUT(1KT)
90179-05523-00
Unavailable
65
DUCT 5
14B-2838J-01-00
Unavailable
66
DUCT 6
14B-2838P-01-00
Unavailable
67
PANEL, CONSOLE 1
14B-2837L-00-P2
Unavailable
68
DAMPER, 3
4C8-2112D-00-00
Unavailable
69
SEAL 1
2S3-2111D-00-00
Unavailable
70
PANEL, CONSOLE 2 (BLACK METALLIC X) (DEEP RED METALLIC K)
14B-2837M-00-P2
Unavailable
71
DAMPER, 3
4C8-2112D-00-00
Unavailable
72
SEAL 1
2S3-2111D-00-00
Unavailable
73
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
74
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
75
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
76
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
77
REAR VIEW MIRROR ASSY (LEFT)
14B-26280-00-00
Unavailable
78
REAR VIEW MIRROR ASSY (RIGHT)
14B-26290-00-00
Unavailable
79
PLATE, MIRROR FITTING 1
4C8-26298-00-00
Unavailable
80
BASE, MIRROR (LEFT)
14B-2628N-00-00
Unavailable
81
BASE, MIRROR (RIGHT)
14B-2628R-00-00
Unavailable
82
NUT, CROWN(1FN)
90176-06055-00
Unavailable
83
COLLAR(J45)
90387-064T3-00
Unavailable
84
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
85
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
86
BOX, SIDE 1
14B-2846C-00-00
Unavailable
87
BOX, SIDE 2
14B-2846D-01-00
Unavailable
88
BOX, FRONT
14B-2845D-10-00
Unavailable
89
GROMMET(4FU)
90480-13567-00
Unavailable
