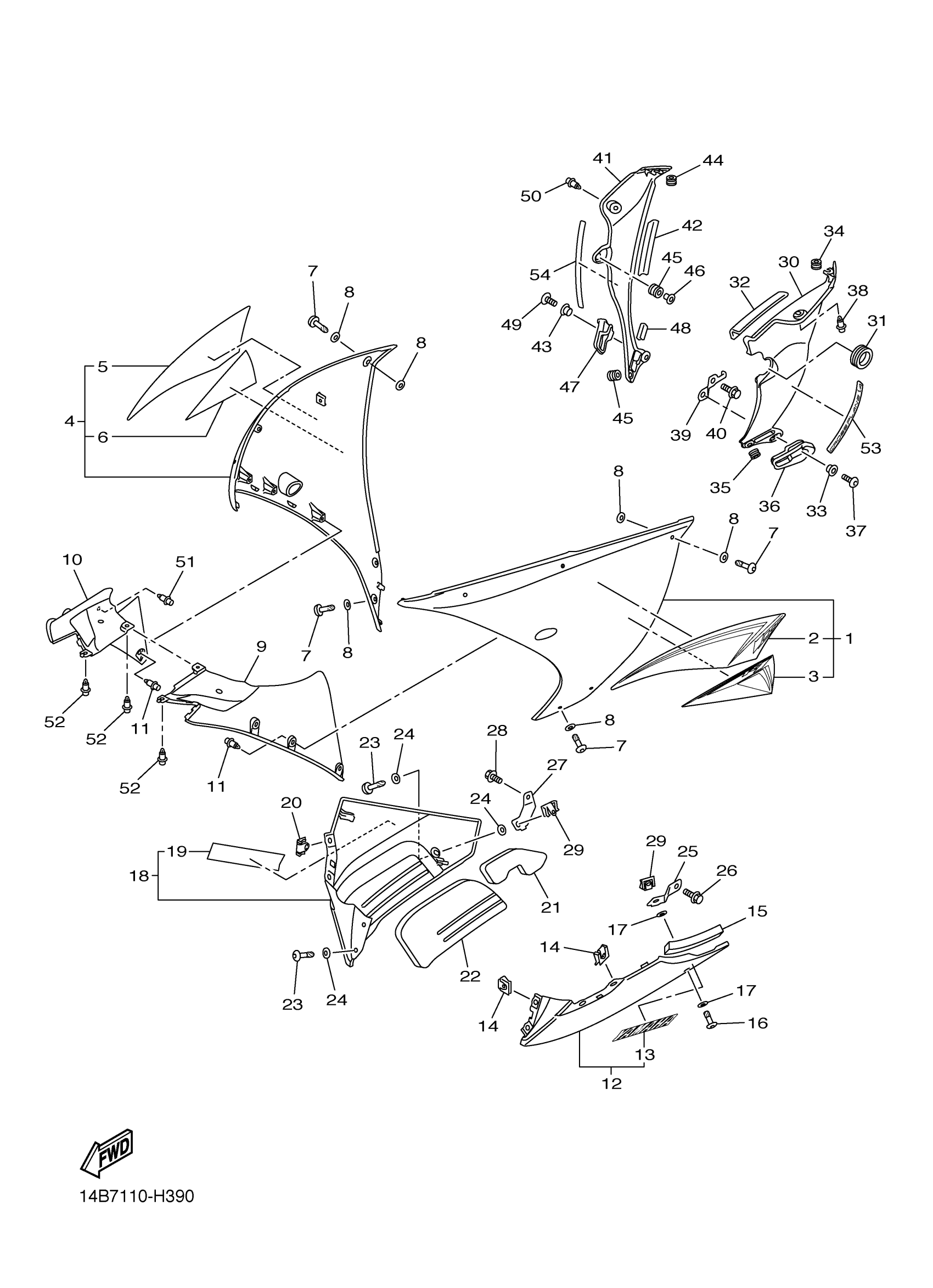

Yamaha YZFR1YL (YZFR1) 14B7 2009 COWLING 2 Diagram
#
1
PANEL ASSY 1
14B-W283U-S0-P2
Unavailable
2
GRAPHIC 1, L
14B-28391-60-00
Unavailable
3
GRAPHIC 3, L
14B-28393-60-00
Unavailable
4
PANEL ASSY 2
14B-W283V-S0-P2
Unavailable
5
GRAPHIC 2, R
14B-28392-60-00
Unavailable
6
. GRAPHIC, 4
14B-28394-60-00
Unavailable
12
UNDER COVER COMP. 1
14B-W2838-T0-P4
Unavailable
18
UNDER COVER COMP. 2
14B-W2839-T0-P4
Unavailable
21
DAMPER
14B-28371-00-00
Unavailable
22
SEAT 4
14B-2848M-00-00
Unavailable
25
BRACKET 1
14B-2836A-00-00
Unavailable
26
BOLT, FLANGE
95817-06016-00
Unavailable
27
BRACKET 2
14B-2836E-00-00
Unavailable
28
BOLT, FLANGE
95817-06016-00
Unavailable
30
PANEL, INNER 3
14B-2836M-10-P4
Unavailable
31
DAMPER, LOCATING 1
14B-2836T-00-00
Unavailable
32
DAMPER, PLATE
90520-05011-00
Unavailable
33
COLLAR
90387-08079-00
Unavailable
34
GROMMET
90480-08006-00
Unavailable
35
GROMMET(4FM)
90480-12596-00
Unavailable
36
STOPPER, RUBBER 1
14B-283C1-00-00
Unavailable
37
BOLT
90111-06051-00
Unavailable
38
RIVET(4PH)
90269-07077-00
Unavailable
39
STAY 1
14B-28321-00-00
Unavailable
40
BOLT, FLANGE
95817-06012-00
Unavailable
41
PANEL, INNER 4
14B-2836N-10-P4
Unavailable
42
SEAL 1
3NU-21732-00-00
Unavailable
43
COLLAR
90387-08079-00
Unavailable
44
GROMMET
90480-08006-00
Unavailable
45
GROMMET(4FM)
90480-12596-00
Unavailable
46
COLLAR
90387-06159-00
Unavailable
47
STOPPER, RUBBER 2
14B-283C2-00-00
Unavailable
48
SEAL 5
4B5-2847F-00-00
Unavailable
49
BOLT
90111-06051-00
Unavailable
50
RIVET(4PH)
90269-07077-00
Unavailable
53
EMBLEM 1, L
14B-2834C-60-00
Unavailable
54
EMBLEM 2, R
14B-2835C-60-00
Unavailable
